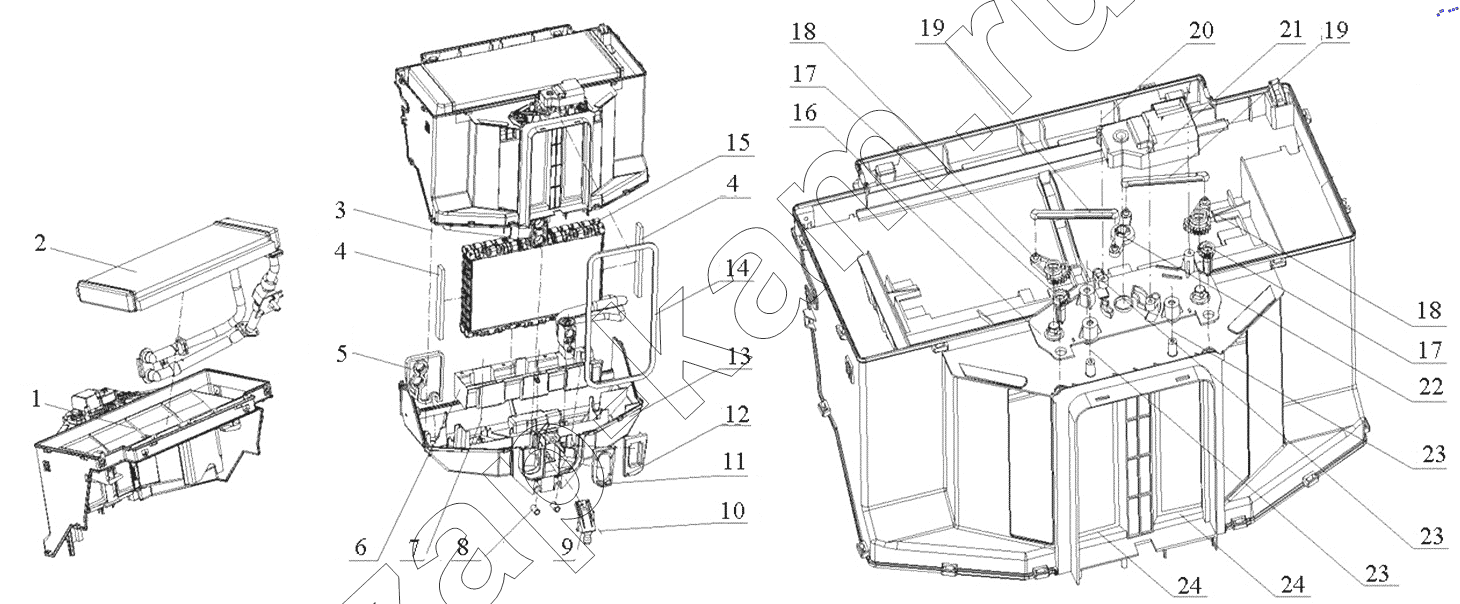

Air conditioner assembly-1
/ HOWO ZZ4257N3247N1B_A7_D12_380
1
2
3
4
4
5
6
7
8
9
10
11
12
13
14
15
16
17
17
18
18
19
19
20
21
22
23
23
23
24
24
| Поз. | Артикул | Название детали | Кол-во | Цена | |
|---|---|---|---|---|---|
| AZ1664821008 | AZ1664821008 | Air conditioner housing assembly | 1; | - | |
| 1 | AZ1664820012 | Expansion valve damping gasket | 1; | - | |
| 2 | AZ1664820070 | Gasket | 1; | - | |
| 3 | Q2713525F31 | Cross hollow self tapping screw | 3; | - | |
| 4 | WG1664820014/1 | Evaporator assembly | 1; | - | |
| 5 | AZ1664820011 | Damping gasket for heater water pipe | 1; | - | |
| 6 | AZ1664820007 | Air conditioner lower housing | 1; | - | |
| 7 | AZ1664820062 | Evaporator lower bracket | 1; | - | |
| 8 | Q2140510 | Crosss crew | 4; | - | |
| 9 | AZ1664820022 | Spacer sleeve | 2; | - | |
| 10 | AZ1664820059 | Drip pipe | 1; | - | |
| 11 | Q40304 | Пружинная шайба | 2; | - | |
| 12 | AZ1664820068 | Evaporator sealing strip | 6; | - | |
| 13 | AZ1664821002 | Air conditioner assembly | 1; | - | |
| 14 | Q2714216 | Болт | 1; | - | |
| 15 | AZ9925770100 | Air conditioner wiring harness | 1; | - | |
| 16 | AZ1664820024 | Air conditioner middle shell | 1; | - | |
| 17 | AZ1664820027 | Circulating damper transition gear | 2; | - | |
| 18 | AZ1664820026 | Circulating damper pendulum rod | 1; | - | |
| 19 | AZ1664820029 | Circulating damper assembly | 2; | - | |
| 20 | WG1664820033/1 | Circulating damper control motor | 1; | - | |
| 21 | AZ1664820032 | Circulating damper connecting rod | 2; | - | |
| 22 | Q2714216 | Болт | 3; | - | |
| 23 | AZ1664820025 | Damper control mechanism support plate | 1; | - | |
| 24 | AZ1664820028 | Circulating damper directly connected to gear | 2; | - | |
| 25 | AZ1664820013 | Water pipe damping positioning pad | 1; | - | |
| 26 | WG1664820052/1 | Water valve control motor | 1; | - | |
| 27 | AZ1664820903 | Spring card | 8; | - | |
| 28 | AZ1664820071 | Air inlet gasket | 1; | - | |
| 29 | WG1664820003/1 | Control panel assembly | 1; | - | |
| 30 | Q68620 | Clip | 1; | - | |
| 31 | Q2140620 | Болт | 1; | - | |
| 32 | Q40206 | Шайба | 1; | - | |
| 33 | Q340B06 | гайка | 1; | - |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
