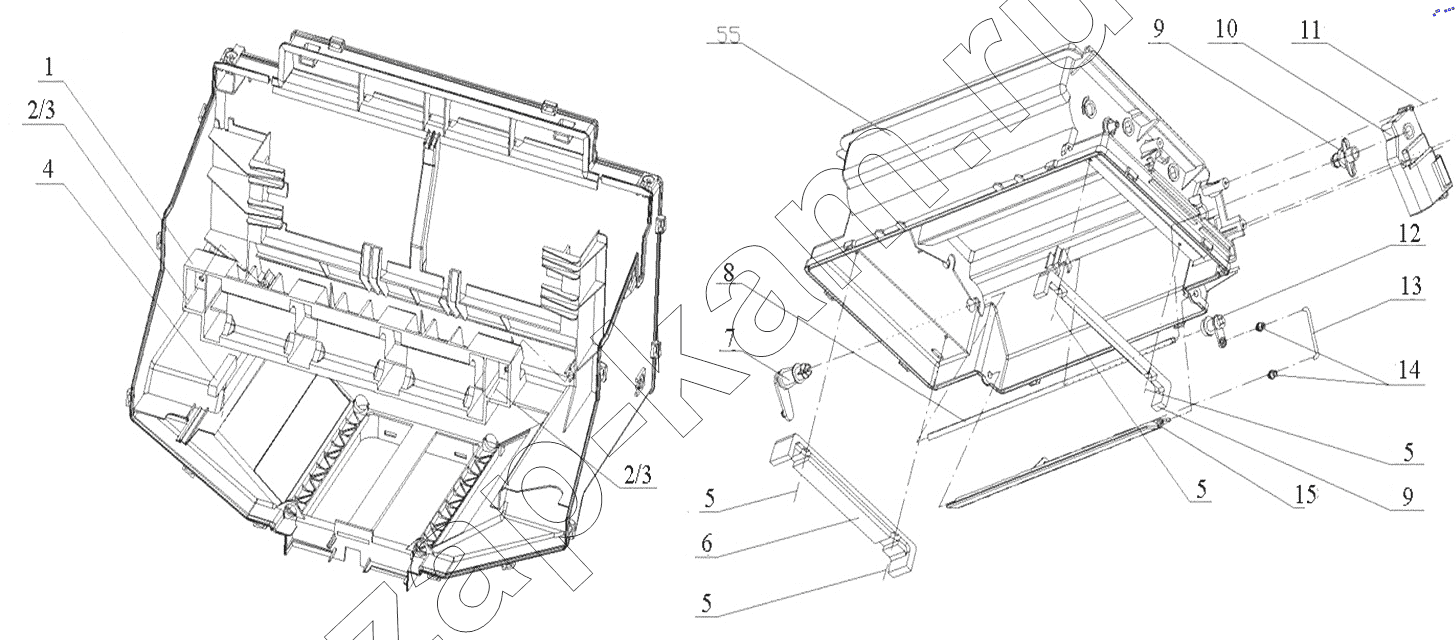

Air conditioner assembly-2
/ HOWO ZZ4257N3247N1B_A7_D12_380
1
2
2
3
3
4
5
5
5
5
6
7
8
9
9
10
11
12
13
14
15
| Поз. | Артикул | Название детали | Кол-во | Цена | |
|---|---|---|---|---|---|
| Q2744295 | Q2744295 | Self-tapping screws | 4; | - | |
| 1 | Q2714295F31 | Self-tapping screws | 3; | - | |
| 2 | AZ1664820063 | Evaporator upper bracket | 1; | - | |
| 3 | Q2714216 | Болт | 4; | - | |
| 4 | Q40105 | Flat washer | 2; | - | |
| 5 | AZ1664820066 | The right compression pad of the heat sink | 4; | - | |
| 6 | AZ1664820064 | The left compression pad of the heat sink | 1; | - | |
| 7 | AZ1664820046 | Water valve pendulum rod | 1; | - | |
| 8 | AZ1664820047 | Water valve synchronous pendulum rod | 1; | - | |
| 9 | Q2713525F31 | Cross hollow self tapping screw | 6; | - | |
| 10 | AZ1664820051 | Side ventilation door connecting rod | 1; | - | |
| 11 | WG1664820054/1 | Side ventilation door control motor | 1; | - | |
| 12 | AZ1664820048 | Square axis | 1; | - | |
| 13 | AZ1630840053 | основание | 2; | - | |
| 14 | AZ1664820050 | Side ventilation door | 1; | - | |
| 15 | AZ1664820049 | Side ventilation door swing rod | 1; | - | |
| 16 | AZ1664820081 | Upper gasket | 1; | - | |
| 17 | AZ1664820903 | Spring card | 17; | - | |
| 18 | WG1664820017 | Blower assembly | 1; | - | |
| 19 | WG1664820018/1 | Speed control module assembly | 1; | - | |
| 20 | WG1664820019/1 | Evaporator temperature sensor | 1; | - | |
| 21 | AZ1664820010 | Air conditioner fan cover | 1; | - | |
| 22 | AZ1664820021 | Air conditioner mounting bracket | 1; | - |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
