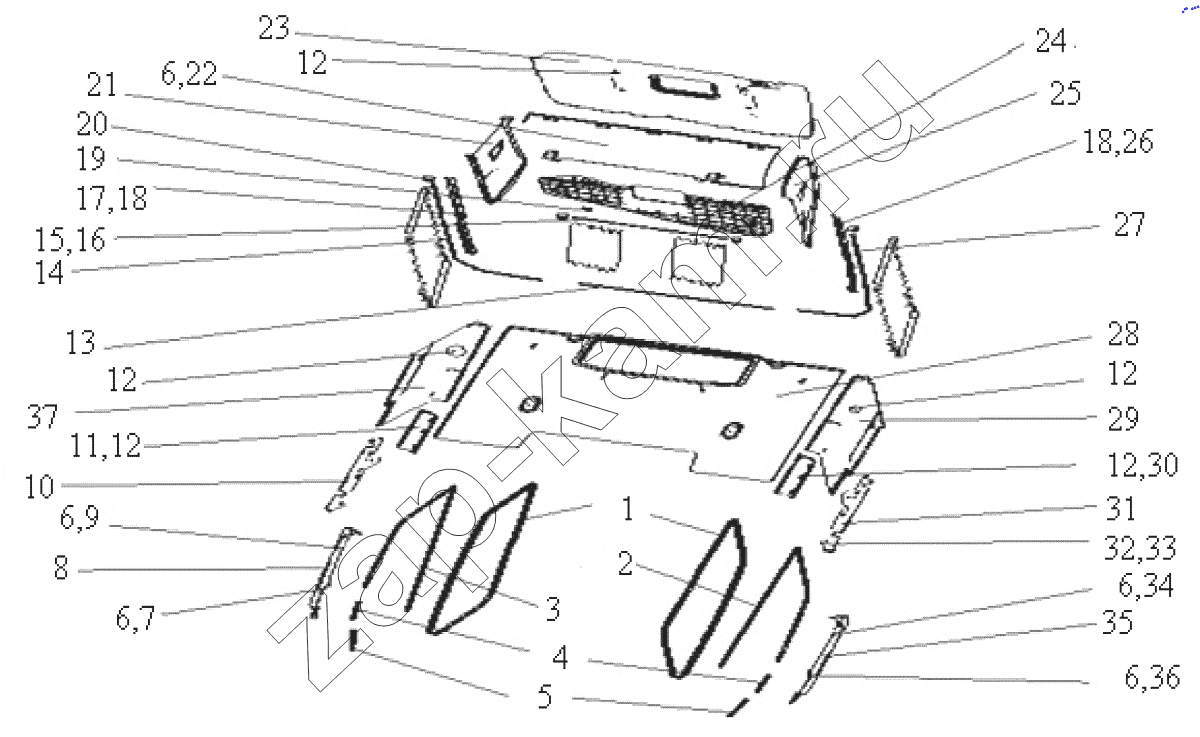

Cab lining
/ HOWO ZZ4257N3247N1B_A7_D12_380
1
2
3
4
5
6
6
6
6
6
7
8
9
10
11
12
12
12
12
12
13
14
15
16
17
18
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
| Поз. | Артикул | Название детали | Кол-во | Цена | |
|---|---|---|---|---|---|
| AZ1662610068 | AZ1662610068 | High-top sleeper curtains | 2; | - | |
| AZ1662610067 | AZ1662610067 | Side curtains | 2; | - | |
| AZ1662610069 | AZ1662610069 | Sleeper pull belt | 2; | - | |
| Q2214225 | Q2214225 | Assembly | 3; | - | |
| 1 | WG1662610055 | Door seal | 2; | - | |
| 2 | WG1662610056 | Left outer door seal | 1; | - | |
| 3 | WG1662610057 | Right outer door seal | 1; | - | |
| 4 | WG1662610067 | Outer door sealing strip short i | 2; | - | |
| 5 | WG1662610068 | Outer door sealing strip short ii | 2; | - | |
| 6 | Q2300620 | Assembly | 7; | - | |
| 7 | WG1662610063 | Install the cover on the right a column | 1; | - | |
| 8 | WG1662610052 | Inner protection surface of right a column | 1; | - | |
| 9 | WG1662610054 | Right a column plugging cover | 1; | - | |
| 10 | WG1662610061 | High floor right seat belt guard frame | 1; | - | |
| 11 | WG1662610035 | Right rear trim panel assembly | 1; | - | |
| 12 | AZ1664930002 | Plastic open tail rivets | 14; | - | |
| 13 | WG1662610059 | Front curtain rail | 1; | - | |
| 14 | WG1662610066 | Lengthen the right curtain rail | 1; | - | |
| 15 | WG1664610055 | Sleeper curtain rail | 1; | - | |
| 16 | Q2712916F31 | Self-tapping screws | 25; | - | |
| 17 | WG1664610033 | Decorative board on the right | 1; | - | |
| 18 | Q2300520 | Screw | 8; | - | |
| 19 | WG1664610052 | Ceiling plugging cover | 3; | - | |
| 20 | WG1642610034 | Ограничитель направляющей | 4; | - | |
| 21 | WG1664610031 | Lining on the right side of the high top | 1; | - | |
| 22 | WG1664610041 | High-top rear lining | 1; | - | |
| 23 | WG1664610001 | High top top cover lining | 1; | - | |
| 24 | WG1664610051 | Ceiling | 1; | - | |
| 25 | WG1664610021 | Lining on the left side of the high top | 1; | - | |
| 26 | WG1664610023 | Decorative board on the left | 1; | - | |
| 27 | WG1662610065 | Lengthen the left curtain rail | 1; | - | |
| 28 | WG1662610041 | High floor, lengthened rear lining | 1; | - | |
| 29 | WG1662610021 | Lengthen the left side lining | 1; | - | |
| 30 | WG1662610025 | Left rear trim panel assembly | 1; | - | |
| 31 | WG1662610060 | Left seat belt guard frame | 1; | - | |
| 32 | AZ1664930001 | Plastic nut pedestal | 6; | - | |
| 33 | Q2214213AF31 | Assembly | 12; | - | |
| 34 | WG1662610053 | Left a column plugging cover | 1; | - | |
| 35 | WG1662610051 | Left a column inner protection surface | 1; | - | |
| 36 | WG1662610062 | Install the cover on the left a column | 1; | - | |
| 37 | WG1662610031 | Lengthen the right side lining | 1; | - |
