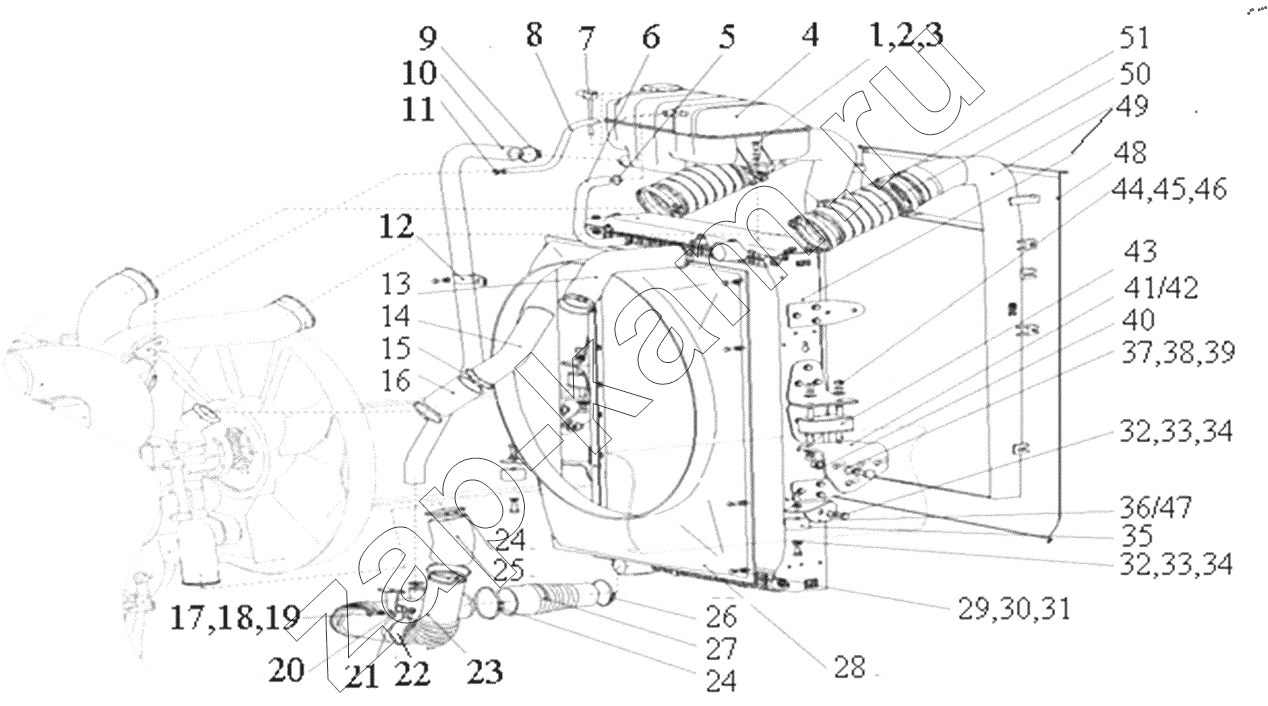

Cooling system
/ HOWO ZZ4257N3247N1B_A7_D12_380
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
24
25
26
27
28
29
30
31
32
32
33
33
34
34
35
36
37
38
39
40
41
42
43
44
45
46
48
49
50
51
51
| Поз. | Артикул | Название детали | Кол-во | Цена | |
|---|---|---|---|---|---|
| 190003171356 | 190003171356 | Пластмассовое стопорное кольцо | 4; | - | |
| 190003171697 | 190003171697 | Хомут | 4; | - | |
| Q67535 | Q67535 | Hose hoop | 4; | - | |
| WG9925530059 | WG9925530059 | Heater hose | 2; | - | |
| WG9925530050 | WG9925530050 | Radiator left auxiliary pull plate | 1; | - | |
| 1 | Q150B0820 | болт | 4; | - | |
| 2 | Q40108 | Шайба | 4; | - | |
| 3 | Q40308 | Пружинная шайба | 4; | 10 ₽ - 60 ₽ | |
| 4 | WG9925530003 | Expansion tank assembly | 1; | - | |
| 5 | Q676B29 | Hose clamp | 2; | - | |
| 6 | WG9925530019 | Radiator vent pipe | 1; | - | |
| 7 | WG9925530012 | Water level sensor | 1; | - | |
| 8 | WG9925530057 | Engine vent pipe | 1; | - | |
| 9 | Q67645 | Hose clamp | 2; | - | |
| 10 | WG9925530021 | Expansion tank hose | 1; | - | |
| 11 | Q676B16 | Hose clamp | 2; | - | |
| 12 | AZ9925530026 | Pipe clamp | 2; | - | |
| 13 | WG9918530005 | Sheung shui chamber hose | 1; | - | |
| 14 | WG9918530004 | Inlet steel pipe | 1; | - | |
| 15 | Q67676 | Hose clamp | 5; | - | |
| 16 | WG9925530006 | Inlet hose | 1; | - | |
| 17 | Q150B0825 | болт | 1; | - | |
| 18 | Q40108 | Шайба | 1; | - | |
| 19 | Q40308 | Пружинная шайба | 1; | 10 ₽ - 60 ₽ | |
| 20 | AZ9918530008 | Water pipe bracket | 1; | - | |
| 21 | AZ9925530018 | Outlet pipe clamp | 1; | - | |
| 22 | Q340B08 | гайка | 1; | - | |
| 23 | WG9918530006 | Radiator outlet steel pipe assembly | 1; | - | |
| 24 | Q67689 | Hose clamp | 3; | - | |
| 25 | WG9925530011 | Outlet hose | 1; | - | |
| 26 | 190003989310 | Hose clamp | 1; | - | |
| 27 | WG9918530007 | Sewer hose | 1; | - | |
| 28 | WG9918530003 | Windshield assembly | 1; | - | |
| 29 | Q150B0816 | болт | 8; | - | |
| 30 | Q40108 | Шайба | 8; | - | |
| 31 | Q40308 | Пружинная шайба | 8; | 10 ₽ - 60 ₽ | |
| 32 | Q150B1018 | болт | 6; | - | |
| 33 | Q40110 | Шайба | 6; | - | |
| 34 | Q40310 | Пружинная шайба | 6; | - | |
| 35 | 1384D 410007 | Rubber metal cushion | 2; | - | |
| 36 | WG9925530051 | Radiator right auxiliary pull plate | 1; | - | |
| 37 | Q150B1645 | Hexagonal bolt | 3; | - | |
| 38 | Q40116 | Шайба | 3; | - | |
| 39 | Q40316 | Пружинная шайба | 3; | - | |
| 40 | Q340B16 | гайка | 3; | - | |
| 41 | WG9925530043 | Radiator right bracket assembly | 1; | - | |
| 42 | WG9925530040 | Radiator left bracket assembly | 1; | - | |
| 43 | AZ9925530004 | Radiator support block assembly | 2; | - | |
| 44 | Q340B12 | гайка | 8; | - | |
| 45 | Q40112 | Шайба | 8; | - | |
| 46 | Q40312 | Пружинная шайба | 8; | - | |
| 48 | WG9918530009 | Insect net assembly | 1; | - | |
| 49 | WG9918530011 | A7 medium cooling module assembly | 1; | - | |
| 50 | WG9925530053 | Intercooler hose | 2; | - | |
| 51 | WG9925530022 | Clamp | 4; | - |
