Cylinder head assembly
/ HOWO ZZ4257N3247N1B_A7_D12_380

zoom-in zoom-out enlarge shrink circle-right circle-left file-text2 info cart

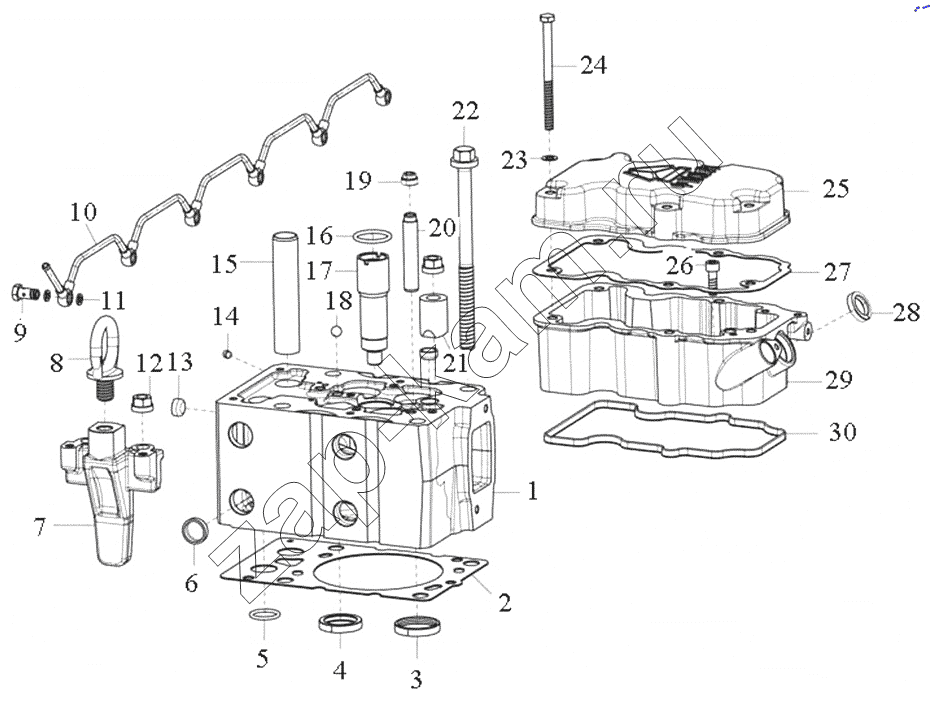

Схема/чертеж: Cylinder head assembly / HOWO ZZ4257N3247N1B_A7_D12_380
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
Поз. Артикул Название детали Кол-во Цена
AZ1246040010B AZ1246040010B Cylinder head assembly 6; -
1 AZ1246040011B Cylinder head 6; -
2 VG1246040021 Cylinder head gasket 6; -
3 VG1246040012 Intake valve seat 12; -
4 VG1246040013 Exhaust valve seat 12; -
5 VG1246040018 Sealing ring 12; -
6 190003989725 Shim 6; -
7 VG1246040008 Clamping yoke 12; -
8 VG14010388 Винт кольца 12; -
9 VG1246040022 Hollow bolt 6; -
10 VG1246040001 Cylinder head vent pipe assembly 1; -
10.1 VG1246040026 Pipe joint 5; -
10.2 VG1246040027 Pipe joint 1; -
10.3 VG1246040028 Tube 5; -
10.4 VG1246040029 Tube 1; -
11 Q72310 Sealing washer 12; -
12 VG1200040034 Плечевой ремень Гайка 14; -
13 VG1246040031 Plug 12; -
14 VG1540040011 болт 6; -
15 VG1246040015 Valve push rod bush 12; -
16 VG1246040024 Sealing ring 6; -
17 VG1246040017 Injector bushing 6; -
18 VG1540040013 Steel-ball 6; -
19 VG1246050027 Valve stem sealing sleeve 24; -
20 VG1246040014 Valve guide 24; -
21 VG1200040023A Block 10; -
22 VG1246040020 Cylinder head bolt 24; -
23 Q41808 Пружинная шайба 30; -
24 Q150B08113 Hex head bolt 30; -
25 VG1246040003 Rocker arm cover upper cover 6; -
26 Q218B0825 Hex screw 12; -
27 VG1246040010 Cylinder head cover gasket 6; -
28 VG1540040022A Oil seal 6; -
29 VG1246040009 Cylinder head cover 6; -
29.1 VG1246040011 Rocker arm cover lower cover 1; -
29.2 Q61506 Болт-пробка 1; -
30 VG1246040023 Cylinder head cover sealing ring 6; -
VG1246110120 VG1246110120 Block the cover 6; -
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
