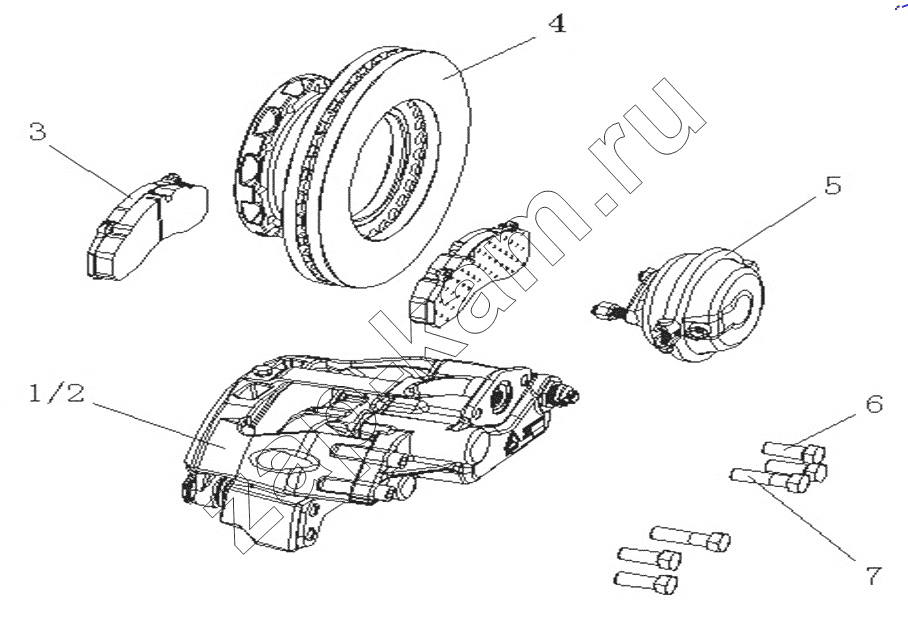

Disc brake
/ HOWO ZZ4257N3247N1B_A7_D12_380

Тип техники Не выбрано Грузовые Двигатели

Марка Не выбрано DAF DongFeng FAW Foton HOWO IVECO JAC Motors MAN Shaanxi SITRAK Volvo Автокомпонент Плюс ЗИЛ КАЗ КамАЗ Мадара НефАЗ СЗАП Тонар УралАЗ

Модель Не выбрано Howo Howo A7 8x4 Howo cnhtc-huaxin (2010) Sinotruck (полный) Sinotruk 4x2 Tractor (371) Sinotruk 6x4 Tipper (290) Sinotruk 6x4 Tipper (336) Sinotruk 6x4 Tipper (371) Sinotruk 6x4 Tractor (371) Sinotruk 6x6 Tipper (336) Sinotruk 8x4 Tipper (336) Sinotruk 8x4 Tipper (371) ZZ3327N3647C-N2WA ZZ3407S3867E-PA103709 ZZ4257N3247N1B_A7_D12_380

Схема > Не выбрано Cab body Front cover assembly Instrument panel 1 Instrument panel 2 Instrument panel 3 Instrument panel 4 Fender Rear fender Toolbox Door lock Door accessories Air suspension left seat Right seat Sleeper under the mid-length cab Upper sleeper assembly Cab lining Floor cover Heat insulation and sound-absorbing pad Cab glass Wiper device Side sun visor Upper glove box Car mirror (electric) Air conditioner assembly-1 Air conditioner assembly-2 Air conditioner assembly-3 Air conditioner assembly-4 Windshield scrubber Cab lifting device Front suspension of the cab Rear suspension of the cab Sunshade Signs and others Cylinder block assembly Crankshaft assembly Piston and connecting rod assembly Cylinder head assembly Gas distribution mechanism Fan, water pump and tensioner assembly Oil pump and lubrication system Oil supply system ECU control assembly and sensor Intake and exhaust system Air compressor assembly Oil pan assembly Long cab air intake system High floor and high ceiling air intake system Cooling system Exhaust system 400L aluminum alloy square fuel tank fuel system Electronic throttle and power plate Engine suspension Transmission front shell and clutch control Transmission middle shell assembly Countershaft assembly Spindle assembly Idler axle assembly Range gear sub-box assembly 1 Range gear sub-box assembly 2 Input shaft and one-shaft gear assembly 10-speed small cover assembly (double rod) Fork shaft assembly Oil pump and pipeline components Pneumatic pipeline valve assembly Transmission control Gearbox auxiliary support Other Clutch Clutch control Drive shaft HW1697 middle axle main reducer HW1697 middle axle hub and brake HW1697 middle bridge bridge shell HW1697 rear axle bridge shell HW1697 rear axle drive device HW1697 rear axle hub and brake Front axle assembly Front axle assembly Disc brake Hydraulic power steering device Steering control device A7 front suspension Disconnected balanced suspension Rear transverse stabilizer HOWO front shock absorber A7 front lateral stabilizer Middle bridge thrust rod bracket Rear axle thrust bar bracket Tractor electrical instrument High-top cab electrical equipment A7 headlamp Lamps and cables Other electrical 1 Batteries, battery boxes and their accessories Other electrical 2 Bracket Wire (A7/VDO/mechanical box) Chassis wire ABS electrical Other Automobile gas unit 1 Tractor auxiliary gas storage cylinder device Overhead air horn control device Automobile gas device 2 Transmission shift handle air control device Transmission gas control device HOWO16 Double bridge brake device ABS Brake air chamber Engine brake device (6X4/S32/D12) Combination pedal control assembly (high floor cab) Tractor trailer brake control device 6X4 traction chassis brake device (D12) Cab brake device (high floor tractor) Single front axle brake device ABS (disc type) Low bumper (front lift) Frame assembly (A7/S32/D12/834) Tires, wheels, front wheel covers and spare tire devices Saddle traction device (150mm saddle) Front and rear traction hooks A7 single front axle tractor walking platform (834 frame) A7 double rear axle split mudguard

1

2

3

4

5

6

7

Поз.	Артикул		Название детали	Кол-во	Цена
1	AZ9100443300		Brake assembly	;	-
2	AZ9100443400		Brake assembly	;	-
3	WG9100443050		Brake block assemby	;	-
4	WG9100443003		Brake plate	;	-
5	WG9100364020		Front plate brake air chamber	;	-
6	Q151B2050TF2		Hexagonal head bolt	;	-
7	Q151B2070TF2		Hex bolt	;	-

Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
