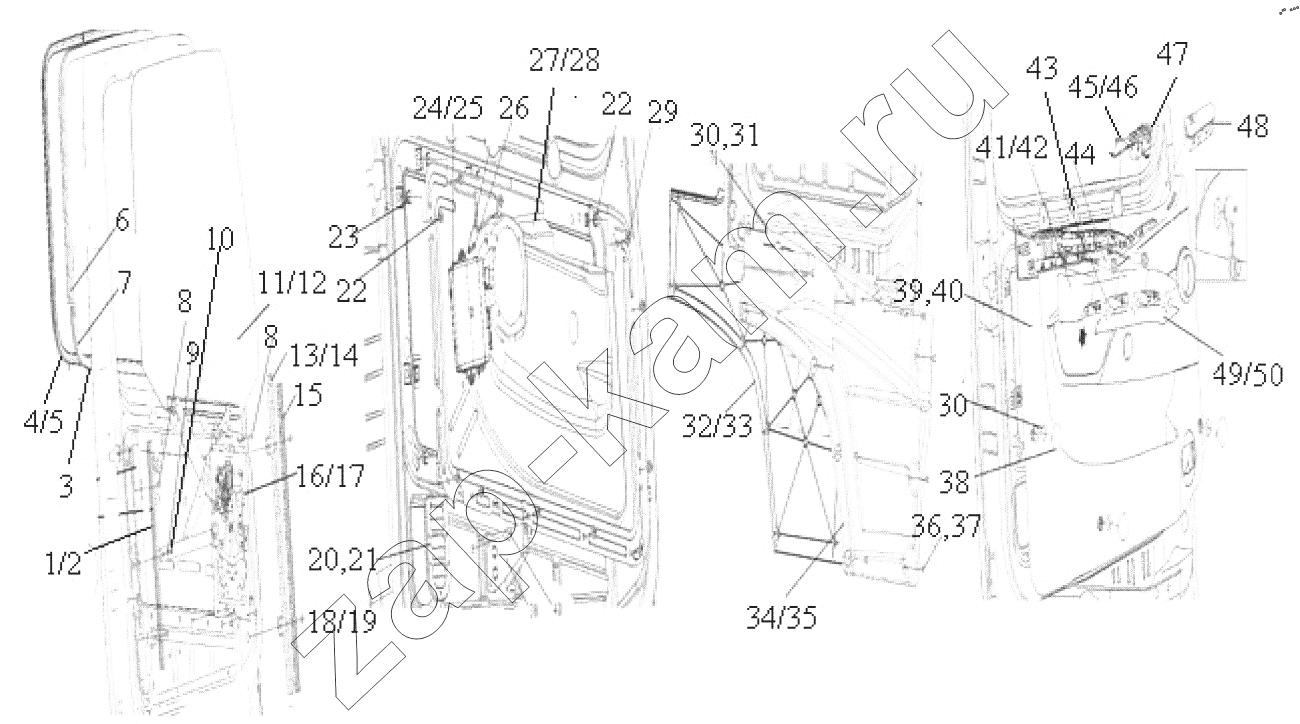

Door accessories
/ HOWO ZZ4257N3247N1B_A7_D12_380
1
2
3
4
5
6
7
8
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
22
23
24
25
26
27
28
29
30
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
| Поз. | Артикул | Название детали | Кол-во | Цена | |
|---|---|---|---|---|---|
| Q40206F31 | Q40206F31 | Washer | 22; | - | |
| 1 | WG1664330011 | Left rear glass chute | 1; | - | |
| 2 | WG1664330012 | Right rear glass chute | 1; | - | |
| 3 | WG1664330018 | Chute sealing strip ii | 1; | - | |
| 4 | WG1664330037 | Left door glass outer sealing strip | 1; | - | |
| 5 | WG1664330038 | Right door glass outer sealing strip | 1; | - | |
| 6 | WG1664330020 | Door glass inner sealing strip i | 1; | - | |
| 7 | WG1664330021 | Door glass inner seal ii | 1; | - | |
| 8 | Q2140810 | Screw | 2; | - | |
| 9 | Q1840520 | Hexagonal flange bolts | 1; | - | |
| 10 | Q40205 | Washer | 2; | - | |
| 11 | WG1664330015 | Left door glass | 2; | - | |
| 12 | WG1664330016 | Right door glass | 2; | - | |
| 13 | WG1664330009 | Left front glass chute | 20; | - | |
| 14 | WG1664330010 | Right front glass chute | 2; | - | |
| 15 | WG1664330017 | Chute sealing strip i | 2; | - | |
| 16 | WG1664330003 | Left glass lifter assembly | 22; | - | |
| 17 | WG1664330004 | Right glass lifter assembly | 2; | - | |
| 18 | AZ1664330019 | Left door interior panel bracket | 1; | - | |
| 19 | AZ1664330020 | Right door interior panel bracket | 1; | - | |
| 20 | WG1664330023 | Sealing strip of hood inside the car door | 1; | - | |
| 21 | WG1664330022 | Hood inside the car door | 1; | - | |
| 22 | AZ1642770017 | распорная втулка | 2; | - | |
| 23 | AZ1664930001 | Plastic nut pedestal | 2; | - | |
| 24 | WG1664331063 | Left gated switch controller | 1; | - | |
| 25 | WG1664331064 | Right gated switch controller | 1; | - | |
| 26 | Q2140514 | Screw | 1; | - | |
| 27 | WG1664330033 | Left door audio mounting plate assembly | 1; | - | |
| 28 | WG1664330034 | Right door audio mounting plate assembly | 1; | - | |
| 29 | Q2713516F31 | Self-tapping screws | 4; | - | |
| 30 | Q2214816F31 | Assembly | 1; | - | |
| 31 | Q150B0616F31 | Hexagonal bolt | 6; | - | |
| 32 | WG1664330005 | Decorative outer panel under the left door | 6; | - | |
| 33 | WG1664330006 | Decorative outer panel under the right door | 1; | - | |
| 34 | WG1664330007 | Decorative inner panel under the left door | 1; | - | |
| 35 | WG1664330008 | Decorative inner panel under the right door | 1; | - | |
| 36 | Q150B0816F31 | Hexagonal bolt | 1; | - | |
| 37 | Q40208F31 | Washer | 1; | - | |
| 38 | WG1664330097 | Screw plug | 1; | - | |
| 39 | WG1664330025 | Left door inner panel assembly | 1; | - | |
| 40 | WG1664330026 | Right door lining panel assembly | 1; | - | |
| 41 | WG1664330040 | Armrest outer panel assembly-left door | 4; | - | |
| 42 | WG1664330140 | Armrest outer panel assembly-right door | 1; | - | |
| 43 | Q2204816 | Flat washer | 1; | - | |
| 44 | Q174B0840 | Concave hexagonal bolt | 1; | - | |
| 45 | WG1664330051 | Inner opening handle cover-left door | 1; | - | |
| 46 | WG1664330151 | Inner opening handle cover-right door | 2; | - | |
| 47 | WG1664331062 | Right door control switch panel | 28; | - | |
| 48 | WG1664331061 | Left door control switch panel | 4; | - | |
| 49 | WG1664330045 | Decorative strip assembly-left door | 4; | - | |
| 50 | WG1664330145 | Decorative strip assembly-right door | 22; | - |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
