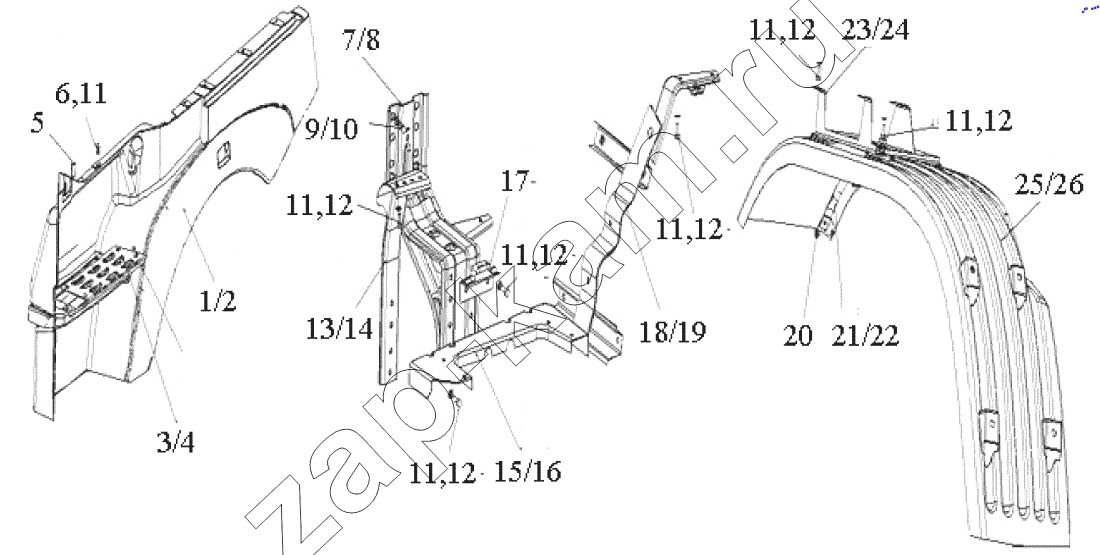

Fender
/ HOWO ZZ4257N3247N1B_A7_D12_380
1
2
3
4
5
6
7
8
9
10
11
11
11
11
11
11
11
12
12
12
12
12
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
| Поз. | Артикул | Название детали | Кол-во | Цена | |
|---|---|---|---|---|---|
| 1 | WG1664230005 | Low-position left-wing daughter board assembly | 1; | - | |
| 2 | WG1664230010 | Low-position right-wing daughter board assembly | 1; | - | |
| 3 | WG1664230081 | Left skid plate | 1; | - | |
| 4 | WG1664230082 | Right skid plate | 1; | - | |
| 5 | WG1664230051 | Block the cover | 2; | - | |
| 6 | Q2140820F31 | Screw | 14; | - | |
| 7 | AZ1664233025 | Fender left middle bracket assembly | 1; | - | |
| 8 | AZ1664233155 | Fender right center bracket assembly | 1; | - | |
| 9 | Q150B1030 | болт | 10; | - | |
| 10 | Q40110 | Шайба | 10; | - | |
| 11 | Q150B0820 | болт | 44; | - | |
| 12 | Q40108 | Шайба | 58; | - | |
| 13 | AZ1664233030 | Fender left front bracket assembly | 1; | - | |
| 14 | AZ1664233032 | Fender right front bracket assembly | 1; | - | |
| 15 | AZ1664230061 | Pedal left bracket assembly | 1; | - | |
| 16 | AZ1664230062 | Pedal right bracket assembly | 1; | - | |
| 17 | AZ1664230140 | Scrubber left bracket assembly | 1; | - | |
| 18 | AZ1664233035 | Left rear bracket assembly | 1; | - | |
| 19 | AZ1664233036 | Right rear bracket assembly | 1; | - | |
| 20 | Q2204219F31 | Self-tapping screws | 4; | - | |
| 21 | WG1664230133 | Left bracket at the rear of the fender | 1; | - | |
| 22 | WG1664230134 | Right bracket at the rear of the fender | 1; | - | |
| 23 | AZ1664230059 | Left fender main bracket assembly | 1; | - | |
| 24 | AZ1664230058 | Right fender main bracket assembly | 1; | - | |
| 25 | WG1664230049 | Left fender | 1; | - | |
| 26 | WG1664230050 | Right fender | 1; | - |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
