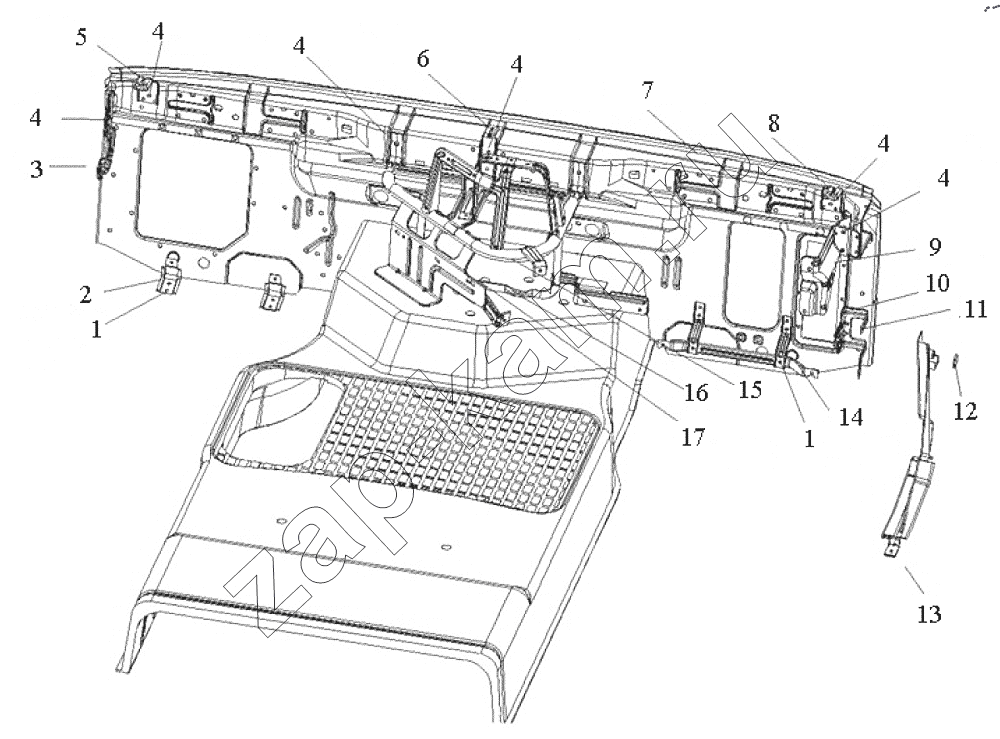

Instrument panel 1
/ HOWO ZZ4257N3247N1B_A7_D12_380
1
1
2
3
4
4
4
4
4
4
5
6
7
8
9
10
11
12
13
14
15
16
17
| Поз. | Артикул | Название детали | Кол-во | Цена | |
|---|---|---|---|---|---|
| 1 | Q2360620F31 | Crosss crew,spring washer and flat washer | 8; | - | |
| 2 | AZ1664160082 | Driver's side lower guard plate lower bracket | 2; | - | |
| 3 | AZ1664160050 | Instrument panel left bracket assembly | 1; | - | |
| 4 | Q1460820F31 | Assembly | 10; | - | |
| 5 | AZ1664160065 | Front bracket assembly on the left side of the instrument panel | 1; | - | |
| 6 | AZ1664160060 | Instrument panel middle bracket assembly | 1; | - | |
| 7 | WG1664160001 | Front sealing strip | 1; | - | |
| 8 | AZ1664160070 | Front bracket assembly on the right side of the instrument panel | 1; | - | |
| 9 | AZ1664160055 | Instrument panel right bracket assembly | 1; | - | |
| 10 | AZ1664160092 | Lower right bracket assembly | 1; | - | |
| 11 | Q1460825F31 | Crosss crew,spring washer and flat washer | 2; | - | |
| 12 | Q39748201F31 | Reed nut | 1; | - | |
| 13 | AZ1664160330 | A-pillar lower right guard plate | 1; | - | |
| 14 | AZ1664160083 | Right side lower guard plate lower bracket assembly | 1; | - | |
| 15 | AZ1664160010 | Middle bracket assembly | 1; | - | |
| 16 | Q1460840F31 | Assembly | 1; | - | |
| 17 | Q1460870F31 | Assembly | 1; | - |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
