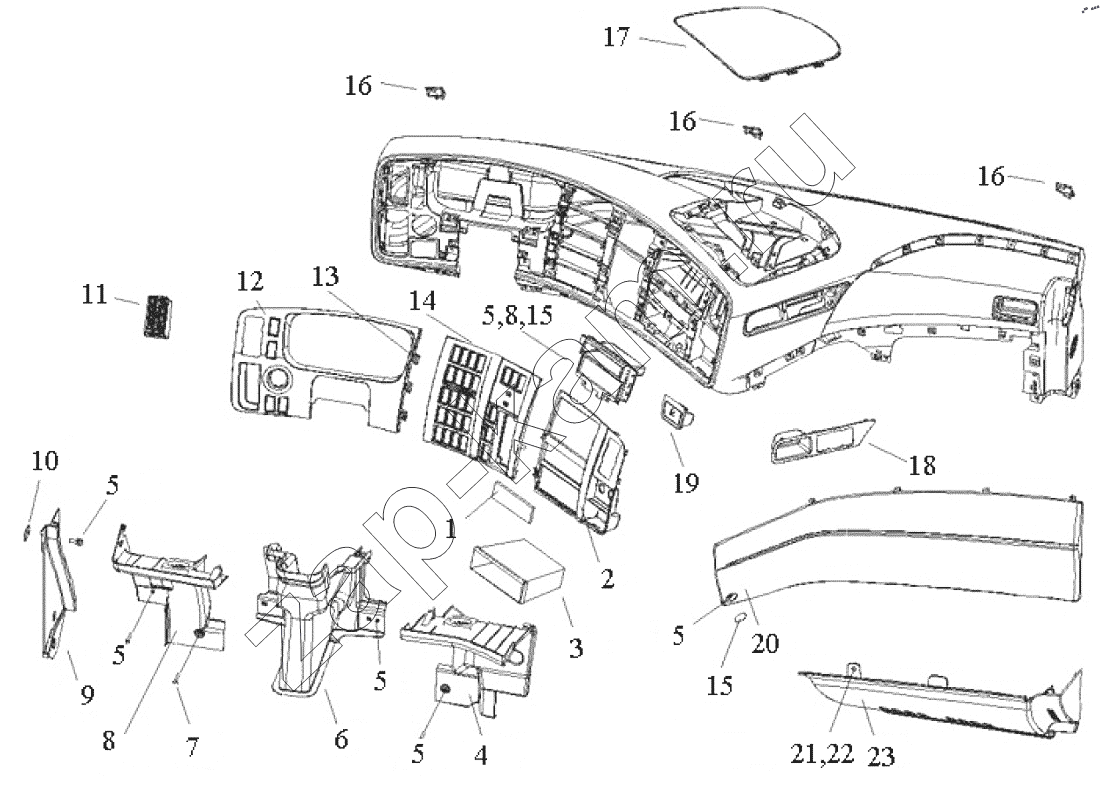

Instrument panel 3
/ HOWO ZZ4257N3247N1B_A7_D12_380
1
2
3
4
5
5
5
5
5
5
6
7
8
8
9
10
11
12
13
14
15
15
16
16
16
17
18
19
20
21
22
23
| Поз. | Артикул | Название детали | Кол-во | Цена | |
|---|---|---|---|---|---|
| AZ1664160410 | AZ1664160410 | Plastic pressure strip | 1; | - | |
| AZ1664160395 | AZ1664160395 | Hole cover | 1; | - | |
| 1 | AZ1664160015 | Driving recorder cover | 1; | - | |
| 2 | WG1664160215 | Center left panel assembly | 1; | - | |
| 3 | WG1664160225 | Lower storage box assembly-middle left panel | 1; | - | |
| 4 | AZ1664160315 | Driver's side lower right guard assembly | 1; | - | |
| 5 | Q2204816F31 | Combination screw | 18; | - | |
| 6 | AZ1664160290 | Steering column shield | 1; | - | |
| 7 | Q2300620F31 | Assembly | 10; | - | |
| 8 | AZ1664160310 | Driver's side lower left guard assembly | 1; | - | |
| 9 | AZ1664160300 | A-pillar lower left guard plate | 1; | - | |
| 10 | Q39748201F31 | Reed nut | 2; | - | |
| 11 | AZ1642160150 | дефлектор в сборе | 4; | - | |
| 12 | WG1664160210 | Instrument panel assembly | 1; | - | |
| 13 | Q39303 | C-type leaf spring nut | 5; | - | |
| 14 | WG1664160240 | Intermediate panel assembly | 1; | - | |
| 15 | WG1664160205 | Upper storage box-middle left panel | 1; | - | |
| 16 | AZ1664160170 | Screw plug | 3; | - | |
| 17 | WG1664160260 | Electrical box cover assembly | 1; | - | |
| 18 | WG1664160250 | Center right panel assembly | 1; | - | |
| 19 | WG1664160220 | Ashtray assembly | 1; | - | |
| 20 | WG1664160340 | Co-driver's side lower guard plate assembly | 1; | - | |
| 21 | Q2714816F31 | Cross hollow self tapping screw | 3; | - | |
| 22 | Q40205F31 | Washer | 3; | - | |
| 23 | WG1664160390 | Co-driver's side lower guard plate lower assembly | 1; | - |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
