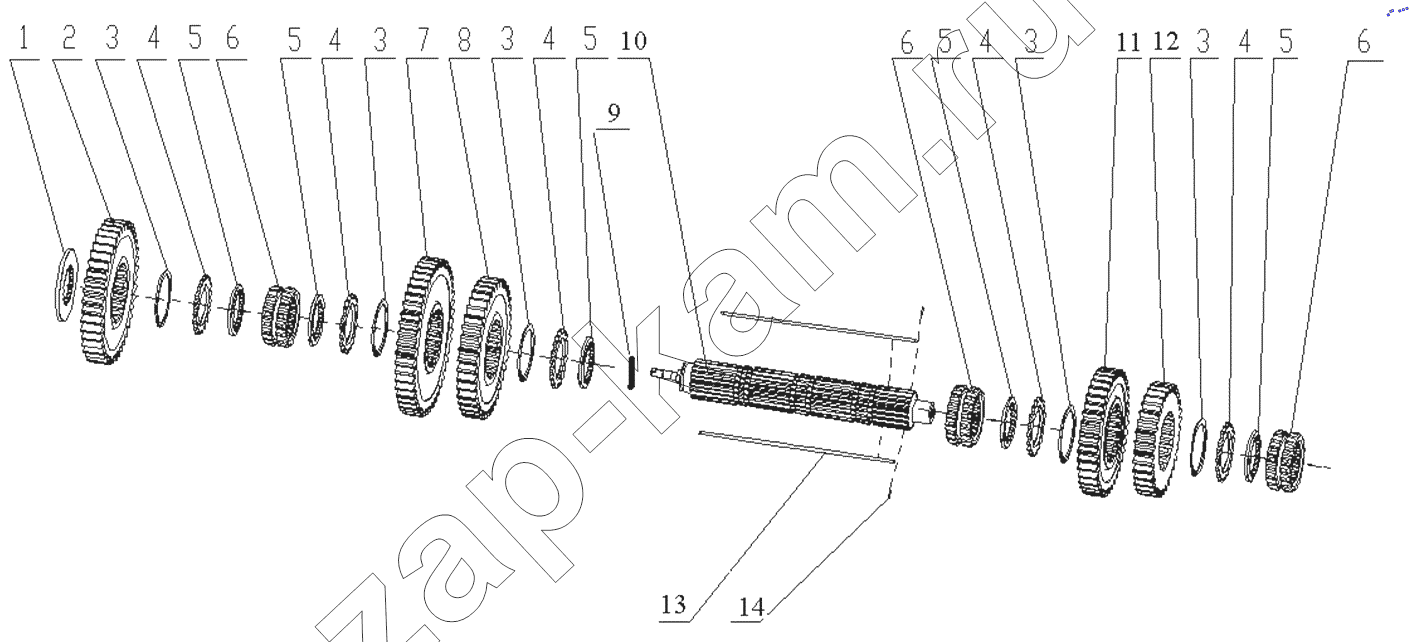

Spindle assembly
/ HOWO ZZ4257N3247N1B_A7_D12_380
1
2
3
3
3
3
3
4
4
4
4
4
5
5
5
5
5
6
6
6
7
8
9
10
11
12
13
14
| Поз. | Артикул | Название детали | Кол-во | Цена | |
|---|---|---|---|---|---|
| AZ2203040405 | AZ2203040405 | Spindle assembly | 1; | - | |
| AZ2208040001 | AZ2208040001 | Spline adjust plate | 1; | - | |
| 1 | WG2210040002 | Main axle block | 1; | - | |
| 2 | AZ2210040207 | Spindle reverse gear | 1; | - | |
| 3 | WG2229040003 | Clamp | 5; | - | |
| 4 | WG2210040012 | Spline block plate | 5; | - | |
| 5 | AZ2208040001 | Spline adjust plate | 1; | - | |
| 6 | WG2210040210 | Main axle sleeve | 3; | - | |
| 7 | AZ2210040230 | Spindle first gear | 1; | - | |
| 8 | AZ2210040206 | Spindle second gear | 1; | - | |
| 9 | AZ2208040002 | Main shaft adjust shim | 1; | - | |
| 10 | WG2203040009 | Main axle with ball joint | 1; | - | |
| 11 | AZ2210040225 | Spindle three-speed gear | 1; | - | |
| 12 | AZ2210040224 | Spindle four gears | 1; | - | |
| 13 | WG2229040211 | Hex keyt | 2; | - | |
| 14 | Q5280310 | Pin | 2; | - |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
