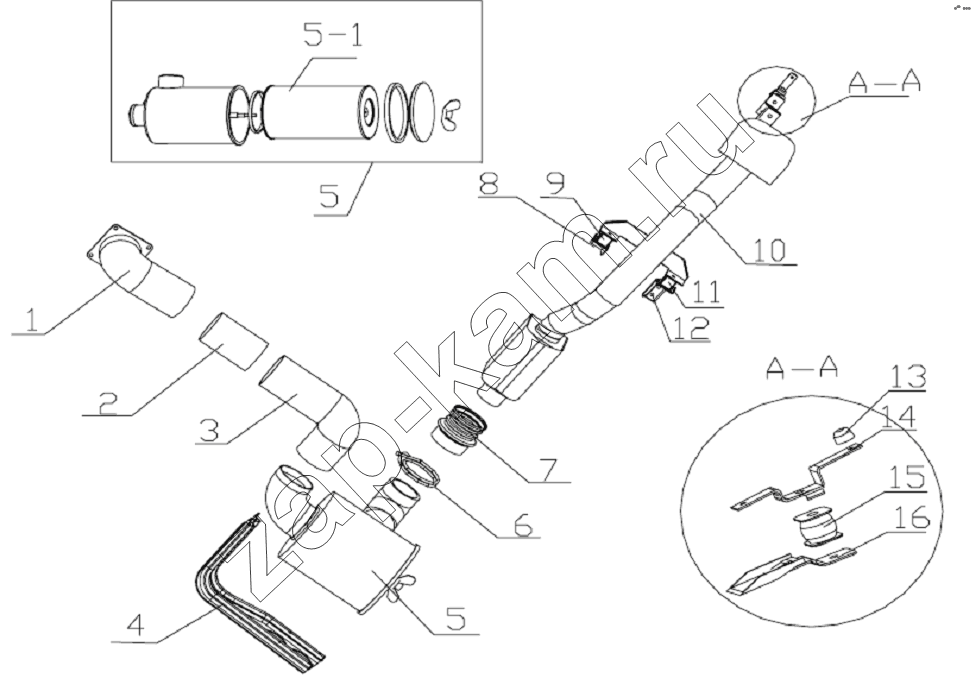

1109DF4JC Air-cleaner equipment
/ JAC Motors HFC 1020K-D126
1
1
2
3
4
5
5
5
5-1
6
7
8
9
10
11
8
12
13
14
15
16
| Поз. | Артикул | Название детали | Кол-во | Цена | |
|---|---|---|---|---|---|
| 1 | 1109012DF4JC | air-cleaner outlet hosepipe | 1; | - | |
| 2 | 1109120DF4JC | middle connecting pipe unit | 1; | - | |
| 3 | 1109014DF4JC | air-cleaner outlet hosepipe | 1; | - | |
| 4 | 1109021DF4JC | cushion padel | 1; | - | |
| 5 | 1109010B10JC | air-cleaner unit | 1; | - | |
| 5-1 | 1109010B10JC-1 | air filter element | 1; | - | |
| 6 | Q672110 | double steelwire loop | 1; | - | |
| 7 | 1109014E0 | connecting tube | 1; | - | |
| 8 | 1109022B10JC | erection air intake lower bracket | 1; | - | |
| 9 | 1109030B10JC | erection air intake cushion unit | 1; | - | |
| 10 | 1109020B10JC | air-cleaner intake pipe unit | 1; | - | |
| 11 | 1109030B10JC | erection air intake cushion unit | 1; | - | |
| 8 | 1109023B10JC | erection air intake lower bracket | 1; | - | |
| 12 | 1109024B10JC | seal cushion | 1; | - | |
| 13 | 1109021B10JC | air-cleaner cover | 1; | - | |
| 14 | 1109050B10JC | erection air intake upper bracket | 1; | - | |
| 15 | 1109040B10JC | erection air intake cushion unit | 1; | - | |
| 16 | 1109060B10JC | erection air intake upper bracket | 1; | - |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
