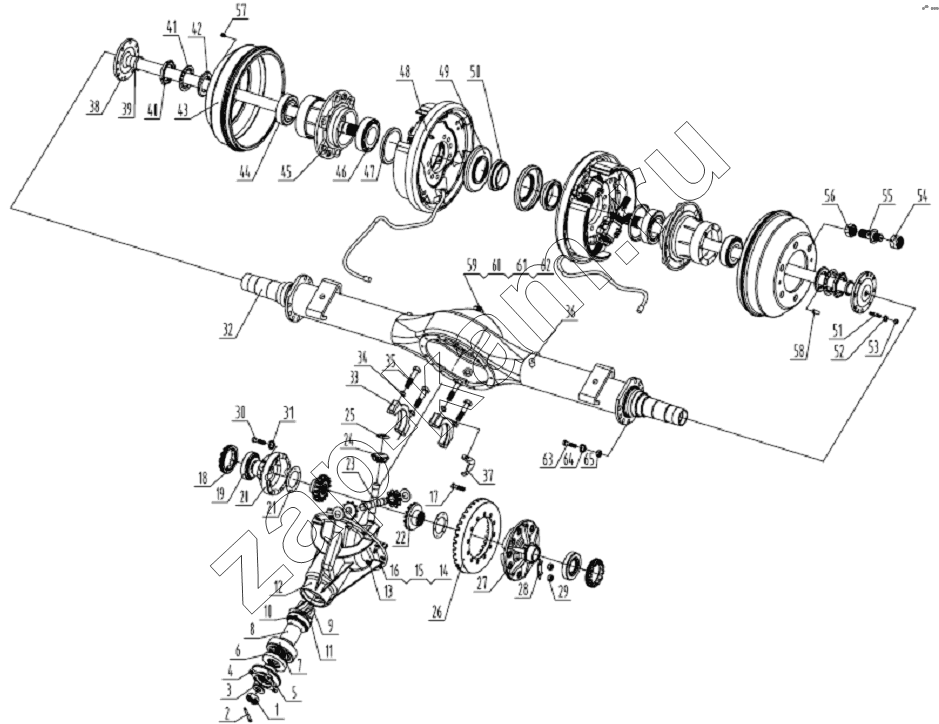

2400D120 Rear axle assembly
/ JAC Motors HFC 1020K-D126
1
1
2
3
4
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
41
42
43
44
45
46
46
47
47
48
49
51
51
52
53
54
55
56
57
58
59
60
61
62
63
65
| Поз. | Артикул | Название детали | Кол-во | Цена | |
|---|---|---|---|---|---|
| 1 | 2402203-HF13014 | nut | 1; | - | |
| 2 | Q5004036 | cotter | 1; | - | |
| 3 | 2402217-HF13014 | shim | 1; | - | |
| 4 | 2402261-HF13014A | flange | 1; | - | |
| 5 | 2402262-HF13014 | dust fender | 1; | - | |
| 6 | 2402204-HF13014 | oil seal | 1; | - | |
| 7 | 30307 | bearing | 1; | - | |
| 8 | 2402202-HF13014 | spacer | 1; | - | |
| 9 | 2402251-HF13014 | pinion | 1; | - | |
| 10 | 32309 | bearing | 1; | - | |
| 11 | 2402215-HF13014 | shim | 1; | - | |
| 12 | 2402101-HF13014 | carrier | 1; | - | |
| 13 | Q340B08 | Nut | 12; | - | |
| 14 | Q40308 | spring washer | 12; | 30 ₽ - 60 ₽ | |
| 15 | Q1290825 | stud bolt | 10; | - | |
| 16 | Q1290835 | stud bolt | 2; | - | |
| 17 | 2402004-HF13014 | bolt | 12; | - | |
| 18 | 2402104-HF13014 | nut | 2; | - | |
| 19 | 32210 | bearing differential right housing | 2; | - | |
| 20 | 2403102-HF13014 | differential right housing | 1; | - | |
| 21 | 2403002-HF13014 | thrust plate | 2; | - | |
| 22 | 2403201-HF13014 | axle shaft gear | 2; | - | |
| 23 | 2403004-HF13014 | spinder | 2; | - | |
| 24 | 2403202-HF13014 | planetory gear | 4; | - | |
| 25 | 2403003-HF13014 | thrust plate | 4; | - | |
| 26 | 2402252-HF13014 | ring gear | 1; | - | |
| 27 | 2403101-HF13014 | differential left housing | 1; | - | |
| 28 | 2402017-HF13014 | lock spacer | 12; | - | |
| 29 | Q341B10 | Nut | 12; | - | |
| 30 | Q150B1050 | bolt | 8; | - | |
| 31 | 2403105-HF13014 | lock spacer | 4; | - | |
| 32 | 2401000-HF13014 | axle housing | 1; | - | |
| 33 | 2402102-HF13014 | bearing cover | 2; | - | |
| 34 | Q40514 | spring washer | 4; | - | |
| 35 | 2402103-HF13014 | bolt | 4; | - | |
| 36 | Q901 | vent-plug | 1; | - | |
| 37 | 2402105-HF13014 | locking plate | 2; | - | |
| 38 | 2400005-HF13014M | shaft | 2; | - | |
| 39 | 2400009-HF13014 | outer oil seal | 2; | - | |
| 40 | 2400001-HF13014 | nut | 2; | - | |
| 41 | 2400003-HF13014 | lock washer | 2; | - | |
| 42 | 2400050-HF13014 | nut | 2; | - | |
| 43 | 3104102-HF13014ZC | rear brake drum | 2; | - | |
| 44 | 32211 | bearing | 2; | - | |
| 45 | 3104101-HF13014 | rear hub | 2; | - | |
| 46 | 32212 | bearing | 2; | - | |
| 47 | 3104104-HF13014 | inner oil seal | 2; | - | |
| 48 | 3502100-D120 | brake assambly | 1; | - | |
| 48 | 3502200-D120 | brake assambly | 1; | - | |
| 49 | 2400023-HF13014 | oil fender | 2; | - | |
| 50 | 2400021-HF13014 | bush | 2; | - | |
| 51 | Q1291030 | bolt | 16; | - | |
| 52 | Q40310 | spring washer | 16; | - | |
| 53 | Q341B10 | Nut | 16; | - | |
| 54 | 3104111-HF13014 | bolt | 6; | - | |
| 54 | 3104211-HF13014 | bolt | 6; | - | |
| 55 | 3104214-HF13014 | cup nut | 6; | - | |
| 55 | 3104114-HF13014 | cup nut | 6; | - | |
| 56 | 3104112-HF13014 | inner nut | 6; | - | |
| 56 | 3104212-HF13014 | inner nut | 6; | - | |
| 57 | Q2541020 | bolt | 2; | - | |
| 58 | Q5210510 | annul | 2; | - | |
| 59 | 2400008-HF15015 | plug coke | 1; | - | |
| 60 | 2400046-HF15015 | gasket | 1; | - | |
| 61 | Q62316 | plug coke | 1; | - | |
| 62 | 2400047-HF15015 | gasket | 1; | - | |
| 63 | 2400007-HF14015 | bolt | 10; | - | |
| 64 | Q40310 | spring washer | 10; | - | |
| 65 | Q341B10 | Nut | 10; | - |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
