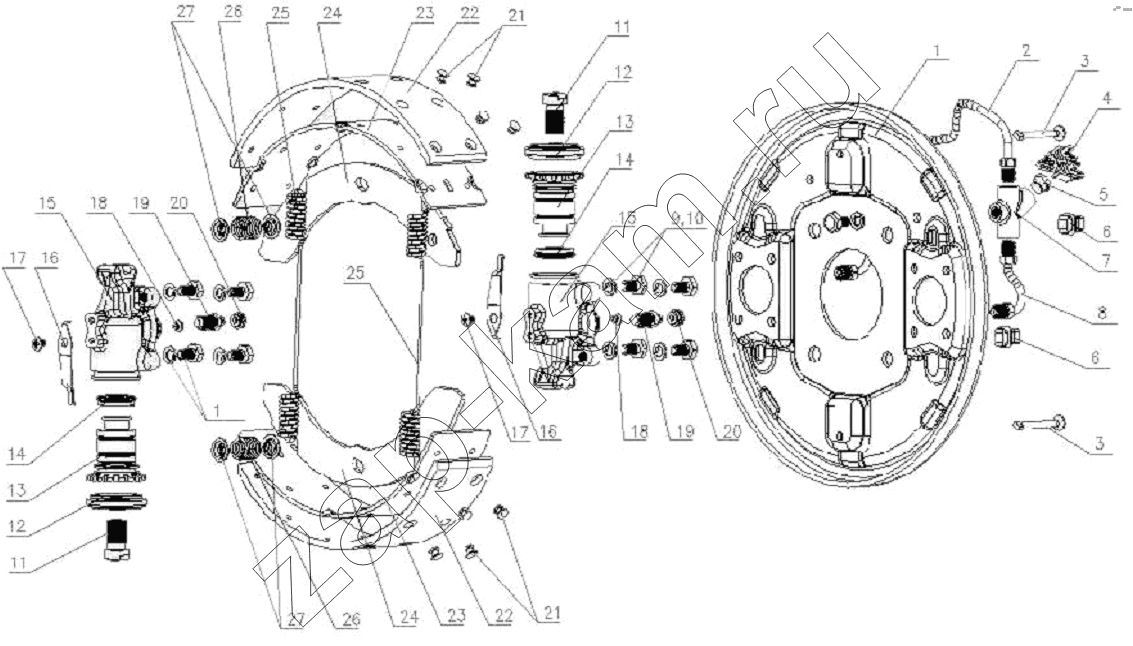

3501D120XZ Front brake assembly
/ JAC Motors HFC 1020K-D134
1
1
1
2
2
3
3
4
5
6
6
7
8
8
9
10
11
11
12
12
13
13
14
14
15
15
16
16
17
17
18
18
19
19
20
20
21
21
22
22
23
23
24
24
25
25
26
26
27
27
| Поз. | Артикул | Название детали | Кол-во | Цена | |
|---|---|---|---|---|---|
| 3501020D120XZ | 3501020D120XZ | front brake unit | 1; | - | |
| 3501110D120 | 3501110D120 | front left wheel cylinder body | 2; | - | |
| 3501010D120XZ | 3501010D120XZ | front left brake unit | 1; | - | |
| 1 | HFC1020-3501032 | front right brake floor | 1; | - | |
| 1 | HFC1020-3501031 | front left brake floor | 1; | - | |
| 2 | XH1026-3501070B | front left brake front-placing oil pipe unit | 1; | - | |
| 2 | XH1026-3501075B | front right brake front-placing oil pipe unit | 1; | - | |
| 3 | BJ130-3501034B | brake shoe press spring pull rod | 4; | - | |
| 4 | ZQ3501172-07 | hose clip | 2; | - | |
| 5 | plug05 | dustproof plug | 4; | - | |
| 6 | ZQ3501017-07 | adjust gap hole rubber plug | 4; | - | |
| 7 | XH1026-3501059B | three-way joint | 2; | - | |
| 8 | XH1026-3501060B | front left brake rear-placed oil pipe unit | 1; | - | |
| 8 | XH1026-3501065B | front right brake rear-placed oil pipe unit | 1; | - | |
| 9 | Q150B0814 | hew screw | 16; | - | |
| 10 | Q40308 | spring washer | 18; | 30 ₽ - 60 ₽ | |
| 11 | NPR3501304-01 | wheel cylinder adjust gap screw | 4; | - | |
| 12 | D120-3501212 | front wheel cylinder protect cover | 4; | - | |
| 13 | NPR3501302-02 | wheel cylinder adjust gap piston | 4; | - | |
| 14 | NPR3501303-02 | front wheel cylinder rubber cup | 4; | - | |
| 15 | 3501110D120 | front left wheel cylinder body | 2; | - | |
| 16 | D120-3501033 | adjust gap lock spring | 4; | - | |
| 17 | D120-3501034B | cross-recessed flat-head screw | 4; | - | |
| 18 | connect pipe11 | NO.3 connect pipe conical seat | 4; | - | |
| 19 | screw34A | air bleed screw | 4; | - | |
| 20 | plug03 | air bleed dustproof plug | 4; | - | |
| 21 | Q4760508 | rivet | 48; | - | |
| 22 | 3502040-D | brake facing | 4; | - | |
| 23 | 3501200D120 | brake shoe | 4; | - | |
| 24 | D120-3501023 | brake shoe reinforcing rib | 4; | - | |
| 25 | ZQ3501018-07 | brake shoe return spring | 4; | - | |
| 26 | XH1026-3501034 | brake shoe press spring | 4; | - | |
| 27 | 760-3501031 | brake shoe press spring seat | 8; | - |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
