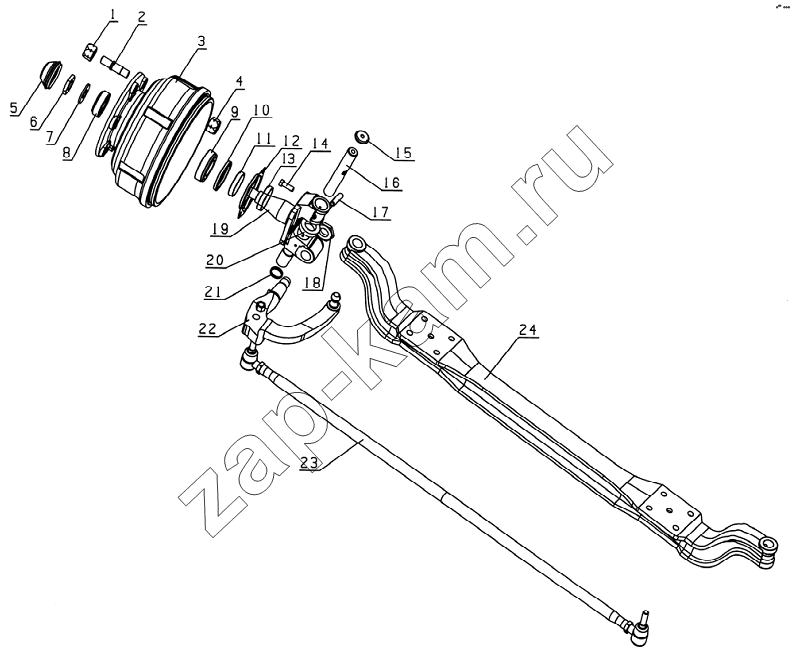

3000D4XZ Front axle assembly
/ JAC Motors HFC 1020KR-D127
1
1
2
2
3
3
3
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
19
19
19
19
20
21
22
22
23
23
23
23
23
24
| Поз. | Артикул | Название детали | Кол-во | Цена | |
|---|---|---|---|---|---|
| 1 | 3103056D8 | tire-right nut | 6; | - | |
| 1 | 3103057D8 | tire-left nut | 6; | - | |
| 2 | 3103052D8 | front wheel hub right bolt | 6; | - | |
| 2 | 3103051D8 | front wheel hub left bolt | 6; | - | |
| 3 | 3103200D8 | left&front wheel hub and brake drum assy | 1; | - | |
| 3 | 3103300D8 | right&front wheel hub and brake drum assy | 1; | - | |
| 3 | 3103201D8 | front wheel hub | 2; | - | |
| 3 | 3501007D8 | front drum | 2; | - | |
| 4 | 3103058D8 | front tire bolt inner nut | 12; | - | |
| 5 | 3103090D8 | wheel hub cover | 2; | - | |
| 6 | 3103124D8 | steering knuckle nut | 2; | - | |
| 7 | 3103107D8 | lock plate | 2; | - | |
| 8 | 30306 | wheel hub-outer bearing | 2; | - 15 120 ₽ | |
| 9 | 32209 | wheel hub-inner bearing | 2; | - | |
| 10 | BJ136-3103080 | oil seal | 2; | - | |
| 11 | 3103104D8 | oil seal seat | 2; | - | |
| 12 | 3103106D8 | oil retainer plate | 2; | - | |
| 13 | 3103105D8 | oil retainer plat bushing | 2; | - | |
| 14 | 3001109D8 | bolt | 8; | - | |
| 15 | 3001208D8 | keen pin cover | 2; | - | |
| 16 | 3001105D8 | keen pin | 2; | - | |
| 17 | 3001106D8 | keen pin -lock bolt | 2; | - | |
| 18 | Q341B08 | nut | 2; | - | |
| 19 | 3001300D8 | steering knuckle assembly | 1; | - | |
| 19 | 3001400D8 | steering knuckle assembly | 1; | - | |
| 19 | BJ136-3001016 | steering knuckle sleeve | 4; | - | |
| 19 | 3001301D8 | left steering knuckle | 1; | - | |
| 19 | 3001401D8 | right steering knuckle | 1; | - | |
| 20 | 3001500N | thrust bearing | 2; | - | |
| 21 | 3001208D8 | keen pin cover | 2; | - | |
| 22 | 3103311D8 | steering knuckle-crank arm | 1; | - | |
| 22 | 3103312D8 | steering straight arm | 1; | - | |
| 23 | 3003500D8 | tie rod assy | 1; | - | |
| 23 | 30035520N | tie rod lft joint assembly | 1; | - | |
| 23 | 3003510N | tie rod right joint assembly | 1; | - | |
| 23 | 3003501D8 | tie rod | 1; | - | |
| 23 | 3003502N | tie rod left nut | 1; | - | |
| 24 | 3001101D8 | front axle | 1; | - |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
