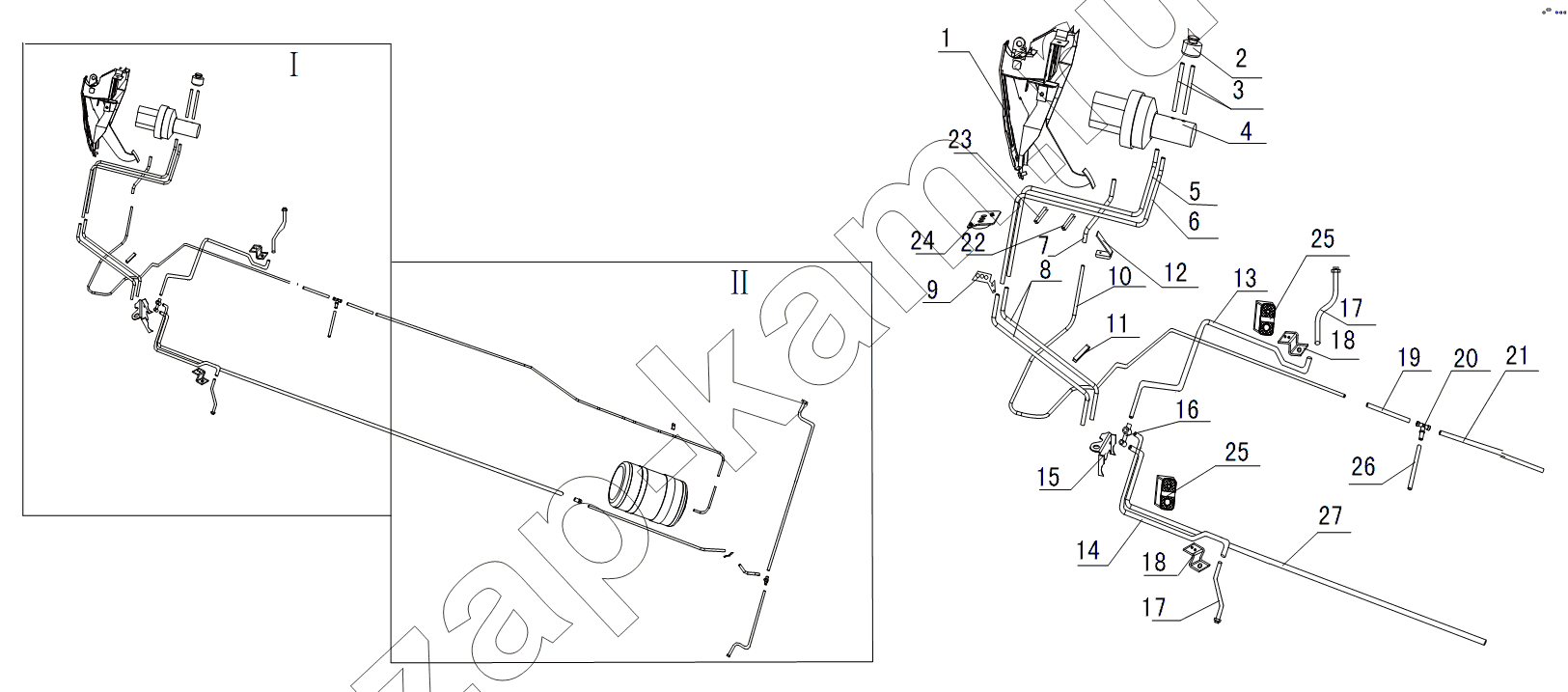

3506D4JC Brake pipe system
/ JAC Motors HFC 1020KR-D127
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
17
18
18
19
20
21
22
23
24
25
25
26
27
| Поз. | Артикул | Название детали | Кол-во | Цена | |
|---|---|---|---|---|---|
| 1 | 3504020D2 | clutch master pedal and bracket noumenon unit | 1; | - | |
| 2 | 3506100E0 | oil storage boat | 1; | - | |
| 3 | 3506261E0 | master pump oil inlet hose | 1; | - | |
| 4 | 3510010D2 | vacuum booster with brake main jar unit | 1; | - | |
| 5 | 3506120D2 | brake master pump rear brake pipe unit | 1; | - | |
| 6 | 3506110D2 | brake master pump front brake pipe unit | 1; | - | |
| 7 | 3506156E0 | vacuum soft hose | 1; | - | |
| 8 | 3506030E0 | master brake soft hose unit | 1; | - | |
| 9 | 3506420B6 | brake hose bracket unit | 1; | - | |
| 10 | 3506155E0 | vacuum soft hose | 1; | - | |
| 11 | 3506263E0 | clip | 1; | - | |
| 12 | 3506270E0 | vacuum soft hose connector unit | 1; | - | |
| 13 | 3506070D4 | right front brake pipe unit | 1; | - | |
| 14 | 3506060D4 | left front brake pipe unit | 1; | - | |
| 15 | 3506010E0 | five-way bracket unit | 1; | - | |
| 16 | 3506120Z1 | diffluence tie-in unit | 1; | - | |
| 17 | 3506140D4 | front brake pipe unit | 1; | - | |
| 18 | 3506018B6 | front brake soft hose bracket | 1; | - | |
| 19 | 3506019Z1 | vacuum hose | 1; | - | |
| 20 | 3506151E0 | three-way | 1; | - | |
| 21 | 3524014D4 | vacuum pipe | 1; | - | |
| 22 | 3506262E0 | clip | 1; | - | |
| 23 | 3506264E0 | clip | 1; | - | |
| 24 | 3506150B6 | seal board unit | 1; | - | |
| 25 | 3506018B6 | front brake soft hose bracket | 2; | - | |
| 26 | 3524019Z1 | vacuum hose | 2; | - | |
| 27 | 3506060D4 | left front brake pipe unit | 1; | - |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
