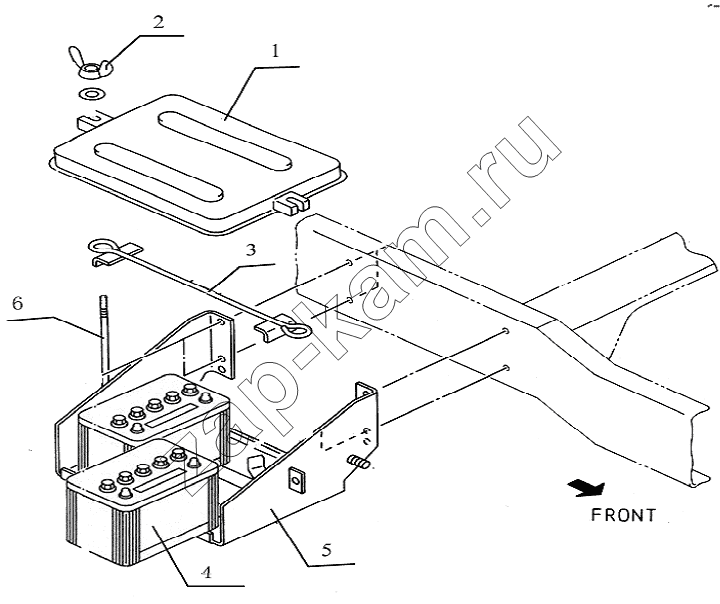

37D2005 Electric equipment
/ JAC Motors HFC 1020KR-D127

Тип техники Не выбрано Грузовые Двигатели

Марка Не выбрано DAF DongFeng FAW Foton HOWO IVECO JAC Motors MAN Shaanxi SITRAK Volvo Автокомпонент Плюс ЗИЛ КАЗ КамАЗ Мадара НефАЗ СЗАП Тонар УралАЗ

Модель Не выбрано HFC 1020K-D126 (2006) HFC 1020K-D134 (2010) HFC 1020KR-D127 (2007)

Схема > Не выбрано 1001D4 Engine suspension Cylinder head cover Cylinder head, thermostat, intake manifold and exhaust manifold Valve-actuating mechanism Timing gear train Cylinder block, timing gear casing and flywheel housing Pistona and connecting rod assembly Crankshaft and flywheel Lubrication oil pump and oil pipe assembly Oil sump 1300D4-hcG Cooling system equipment Cooling water pump fan puliey Fuel supply system 1100D200XZ Oil supply system equipment 1108D102 Accelerating powertrain system 1109D200 Air-cleaner equipment 1200D200 Exhaust system 1200D4-hcG Exhaust system 1607D4-sg0 Clutch pipeline equipment Clutch 1602D4 Clutch controlling equipment Clutch shell 1703D4-hcG Transmission shelves handing equipment Seat, gear shift control assembly Main case shell and it’s attachment 1st Shaft and intermediate shaft 2nd Shaft assembly Fork shaft assembly 2200D2 Transmission equipment 3400DF4JC Steering system 2901D200 Front suspension assembly 2911D4JC Rear suspension assembly 3501D4XZ Front brake 3506D4JC Brake pipe system 3506D120 Bbrake pipe system 3508D4 Parking brake control system 3507Q5 Parking brake 3000D4XZ Front axle assembly 3003600D0 Steering connecting rod assembly 2400D4-sg0 Rear axle assembly 3101D4 Wheel assembly 3105D4 Spare tire regulator system 5000D200 Cabin assy 2803D0 Front bomper 5100D501 Body floor 5101D501 Body-floor parts 5102B3 Cab floor 5107D0 Engine cover 5108B1 Hand-brake protecting jacket 5109D501 Cab carpet 5206D0 Front windshield 5300D0 Front surrounding 5303D0 Front surrounding 5302E0 Front wall side panel 5305D4-sg0 Dashboard system 5600D501 Rear wall welding mounting 5603D0 Rear windshield 5700D501 Head cap 5702D501 Front peak inner decoration and ventilation 6100E0 Door unit 6102E0 Door plate assy 6103E0 Door glass 6104E0 Door glass regulator 6105E0 Door lock assembly 6106E0 Door Gemel assy 6107E0 Door 6109E0 Door stop 6200B3 Back-door unit 6202B3 Back-door protective panel 6203B3 Back door glass 6204B3 Back-door glass regulator 6205B3 Back-door lock 6206B3 Back-door hinge 6207B3 Back-door seal parts 6800D4-sg0 Driver's seat 7200D4-sg0 Double seat 7300D501 Double seat 8202D0 Outer rear view mirror 8204D0 Sunshade plate 8212D0 Safety belt system 8220E0 Armrest assy 8401D0 Veil 8405B3 Footplate 8500D200 Cargo box equipment 37D2001 Electric equipment 37D2002 Electric equipment 37D2003 Electric equipment 37D2004 Electric equipment 37D2005 Electric equipment 37D2006 Electric equipment 38D4JC Instruments 79E4QZ-yc0 Wireless comunication equipment Electrical system Power steering pump

1

2

3

4

5

6

Поз.	Артикул		Название детали	Кол-во	Цена
1	3703035E0		Battery cover	1;	-
2	Q39008		Butterfly nut	1;	-
3	3703020E0		Storage battery compression link	1;	-
4	3703910E0		Battery assembly	2;	-
5	3703010E0		Battery bracket	1;	-
6	3703025E0		Storage battery tighting bolt	1;	-

Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
