Основной редуктор;Main reducer
/ Shaanxi Shacman SX1255GP4

zoom-in zoom-out enlarge shrink circle-right circle-left file-text2 info cart

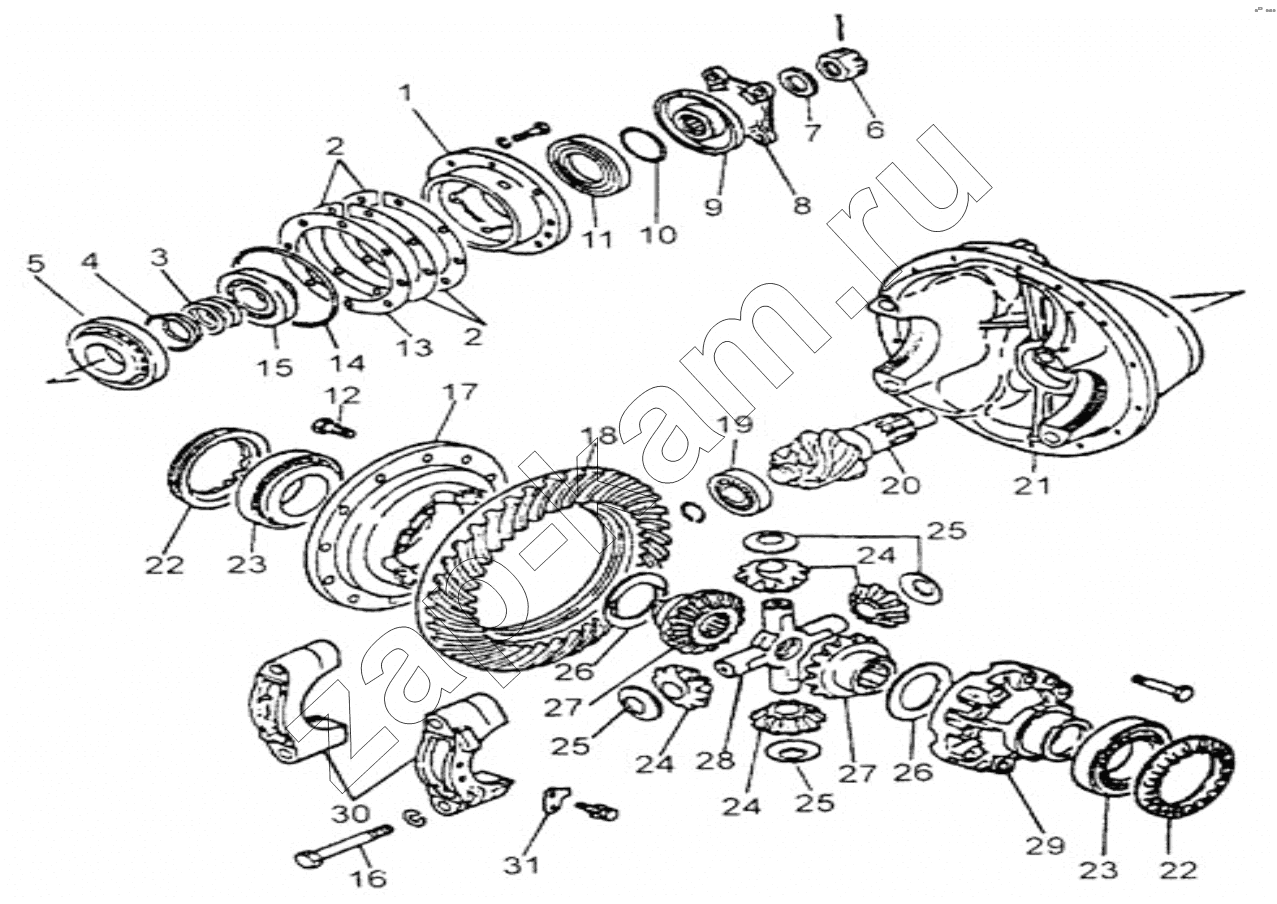

Схема/чертеж: Основной редуктор;Main reducer / Shaanxi Shacman SX1255GP4
1
2
2
3
4
5
6
7
8
9
11
12
14
15
16
17
18
19
20
21
22
22
23
23
24
24
24
25
25
25
26
26
27
27
28
29
30
31
Поз. Артикул Название детали Кол-во Цена
2402L-061 2402L-061 Spring-Driving Bevel Gear Oil Seal 1; -
2402L-0839-025 2402L-0839-025 Driving bevel gear 1; -
2402L-0940-025 2402L-0940-025 Driving bevel gear 1; -
2402L-0737-025 2402L-0737-025 Driving bevel gear 1; -
2402L-0940-026 2402L-0940-026 Rear axle driven bevel gear 1; -
2402L-059 2402L-059 Driving bevel gear oil seal 1; -
1 2402L03-036 Bearing seat - driving bevel gear 1; -
2 2402L-042-045 Adjustment shim-main bevel gear front bearing ; -
3 2402L-081-084 Adjusting shim-bearing seat ; -
4 2402L-049 Spacer-drive bevel gear front bearing 1; -
5 9278/9220 Front inner bearing assembly - driving bevel gear. 1; -
6 2402L-072 Hexagonal lock nut - driving bevel gear 1; -
7 ; -
8 2402L-065-B Flange assembly - driving bevel gear 1; -
9 2402L-067 Dust cover - driving bevel gear 1; -
11 2402L-058 Oil seal assembly-drive bevel gear. 1; -
12 Q1812042TF2 Hexagonal flange face toothed bolt-driven bevel gear 12; -
14 ; -
15 30613 Front outer bearing assembly-drive bevel gear 1; -
16 2402L-119 Bolt-differential bearing cap 4; -
17 2402L-317-A Bevel gear differential left housing 1; -
18 2402L-0839-026 Rear axle driven bevel gear 1; -
19 2402L-0737-026 Rear axle driven bevel gear 1; -
20 NJ308X2V/YA Driving bevel gear rear bearing assembly 1; -
21 2402L04-115 Differential case 1; -
22 2402L-381 Adjusting nut 2; -
23 594A/592A Differential bearing assy. 2; -
24 2402L-345 Planet gear 4; -
25 2402L-346 Thrust washer 4; -
26 2402L-336 Thrust washer 2; -
27 2402L-335 Side gear 2; -
28 2402L-331 Spider 1; -
29 2402L-318 Right bevel gear differential case ; -
30 2402L-3182402L-117 Bearing cap 2; -
31 2402N-383 Lock plate 2; -
