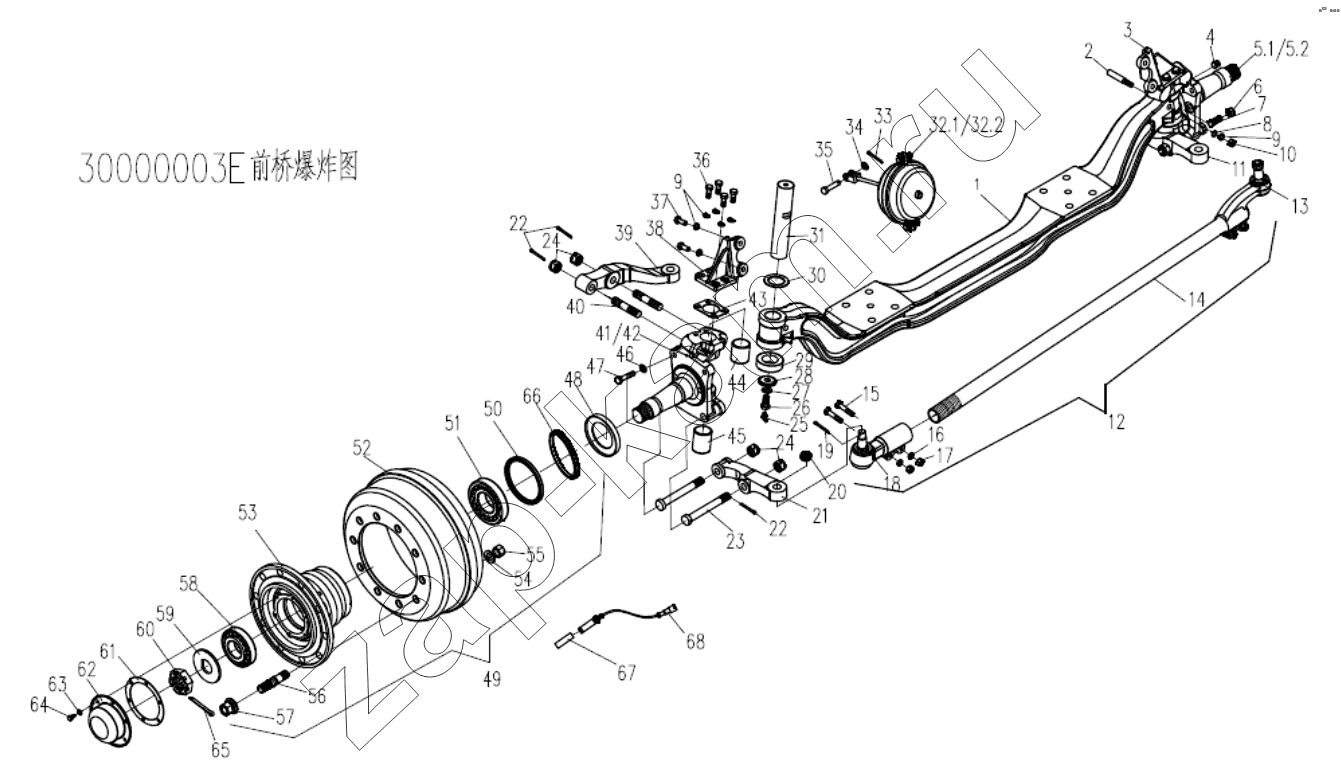

Схема/чертеж: Передняя ось;Front Axle / Shaanxi Shacman SX1255GP4
1
2
3
4
5.1
5.2
6
7
9
9
10
11
12
13
14
15
17
18
19
20
21
22
22
23
24
24
25
26
27
28
29
30
31
32.1
32.2
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
55
56
57
58
59
60
61
62
64
65
Поз. Артикул Название детали Кол-во Цена
1 EQ153-3001010 Front Axle 1; -
2 EQ153-3001011 Steering Knuckle Pin Locking Rod 2; -
3 1419330003431 Right chamber bracket 1; -
4 EQ153-3001039 Plug 2; -
5.1 EQ153-3001020 Left Steering Knuckle With Bush 1; -
5.2 EQ153-3001021 Right Steering Knuckle With Bush 1; -
6 GB/T 6171-M16X1.5 Hexagon thin nut 2; -
7 EQ153-3001026 Spacing Nut 2; -
9 GB/T 93-12 Spring Washer 14; -
10 GB/T 6171-M12X1.25 Hexagon thin nut 2; -
11 1320830083001 Right Steering Arm 1; -
12 13107300X3005A Steering Tie Rod Assy 1; -
13 13107302X6005 Right Connector Assy 1; -
14 1320830303101 Steering Tie Rod 1; -
15 GB/T 5782-M12X55 Hexagon head bolt 4; -
17 1417030003002 Since the lock nut 4; -
18 13107301X6005 Left Connector Assy 1; -
19 GB/T 91-5X50 Cotter Pin 2; -
20 EQ153-3003202 Open slot nut 2; -
21 1320830082001 Left Steering Arm 1; -
22 GB/T 91-4X40 Cotter Pin 6; -
23 EQ153-3001035 Fastening bolts 4; -
24 GB/T 9459-M20X1.5 Open slot nut 6; -
25 JB/T 7940.2-M10X1 45°lubricating nipple 4; -
26 EQ153-3001016 King pin oil hole bolt 2; -
27 GB/T 95-16 Flat gasket 2; -
28 EQ153-3001015 Knuckle pin plug assy 2; -
29 EQ153-198909K Thrust bearings 2; -
30 EQ153-3001012 Steering Adjusting Washer 2; -
31 EQ153-3001014A Steering Knuckle Pin 2; -
32.1 13116300X3003 Air chamber 1; -
32.2 13116300X3003 Air chamber 1; -
33 GB/T 91-4X24 Cotter Pin 2; -
34 GB/T 95-12 Flat gasket 2; -
35 GB/T 882-B12X40 Pin 2; -
36 GB/T5785-M12X1.25X30 Hexagon head bolt 8; -
37 GB/T 5783-M12X35 Hexagon head bolt 4; -
38 1419330003421 Left chamber bracket 1; -
39 NXG30KLW131-05710 Steering drag linkage arm 1; -
40 EQ153-3001034 Double end bolt 2; -
41 EQ153-3001022 Left Steering Knuckle 1; -
42 EQ153-3001023 Right steering knuckle 1; -
43 EQ153-3001013 Knuckle pin cap pad 2; -
44 EQ153-3001024 Steering knuckle upper bushing 2; -
45 EQ153-3001025 Steering knuckle lower bushing 2; -
46 GB/T 93-14 Spring washer 4; -
47 GB/T 5786-M14X1.5X45 Bolt 4; -
48 EQ153-3001027 Oil seal ring 2; -
49 1318630005003 Wheel hub combination 2; -
50 EQ153-3004103 Oil seal assembly 2; -
51 GB/T 297-303013/YB2 Tapered Roller Bearings 2; -
52 1419330005101 Brake drum 2; -
53 GB/T 6171-M22X1.5 Left/Right Hub Bolt 2; -
55 3086DDPHA-3103011ZC Nut 20; -
56 1320830302101 Hub bolts 20; -
57 3086DDPHA-3103012ZC Hub nut 20; -
58 GB/T 297-30311 Tapered Roller Bearings 2; -
59 EQ153-3001028 Steering knuckle nut lock washer 2; -
60 EQ153-3001030 Steering knuckle nut 2; -
61 EQ153-3001031 Front hubcap gasket 2; -
62 EQ153-3001029 Front hubcap 2; -
64 GB/T 9074.15-M8X14 Bolts take gasket combination pieces 12; -
65 GB/T 91-8X70 Cotter pin 2; -
