Система задней оси;Rear axle system
/ Shaanxi Shacman SX1255GP4

zoom-in zoom-out enlarge shrink circle-right circle-left file-text2 info cart

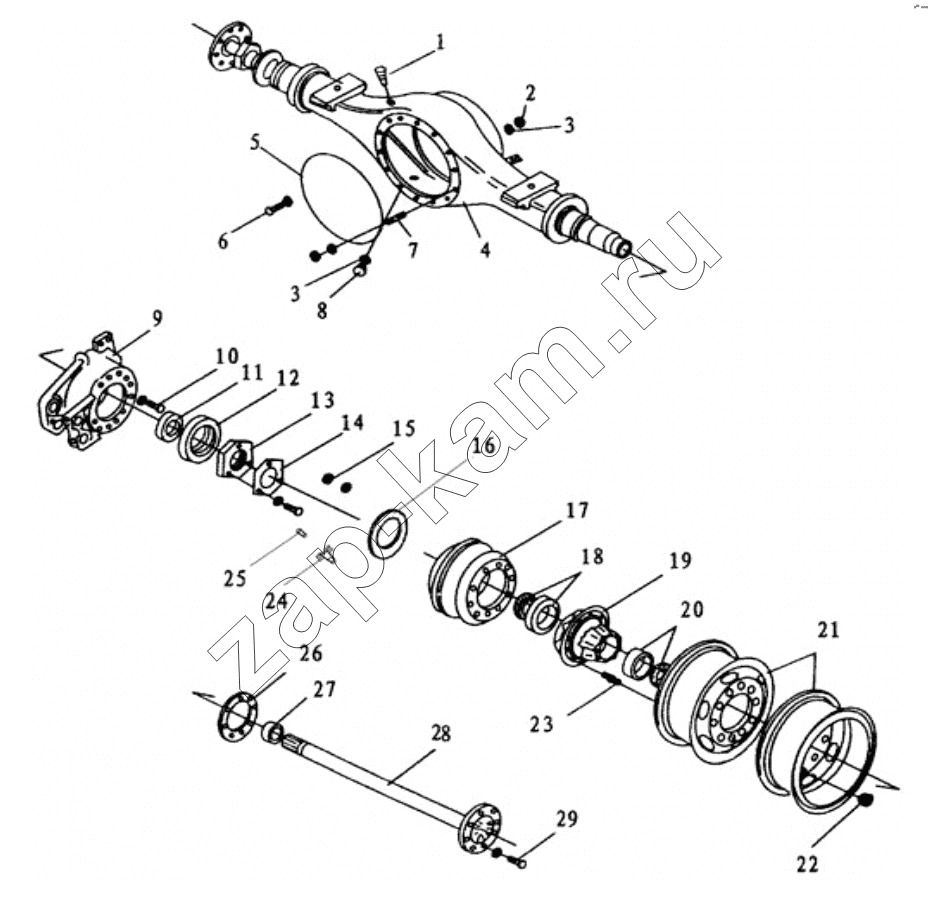

Схема/чертеж: Система задней оси;Rear axle system / Shaanxi Shacman SX1255GP4
1
2
3
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
Поз. Артикул Название детали Кол-во Цена
2402N04-010-J-4.11 2402N04-010-J-4.11 Rear axle reduction and differential assembly 1; -
830.502.0684 830.502.0684 Lubricate grease 1; -
899.759.8154 899.759.8154 Bush 2; -
Q40518 Q40518 Heavy duty spring washers 16; -
3550N-014 3550N-014 Line Card--Rear Sensor 2; -
Q40506 Q40506 Шайба пружинная 4; -
Q150B0620 Q150B0620 Hex.screw 4; -
Q40306 Q40306 Шайба 6; -
Q40516 Q40516 Heavy-duty spring washer 24; -
24N-01063 24N-01063 Bolt 4; -
HT24N-142S2-4.11 HT24N-142S2-4.11 Rear axle system set plan 1; -
2401N142-010 2401N142-010 Rear axle housing with brake drum with wheel hub and shaft assembly 1; -
35N74-02065S/02066S 35N74-02065S/02066S Rear hub & brake drum assembly 01.01.2024; -
XZ3502N142-010W XZ3502N142-010W Rear left brake assembly 1; -
XZ3502N142-015W XZ3502N142-015W Rear right brake assembly 1; -
168L-VII/168L-VII 168L-VII/168L-VII Rear brake chamber assembly 01.01.2024; -
1 24N-01068 Air breather 1; -
2 24N-01065 Plug 1; -
3 24N-01066 Sealing washer 2; -
4 2401N65-015 Rear axle housing assembly 1; -
5 Rear axle housing Gasket coating position ; -
6 Q151B1440TF2 Hex bolt 10; -
7 Q40514 Heavy-duty spring washer 14; -
8 24N-01073 Drain plug 1; -
9 3502N03-080W/081W Rear brake plate assembly. 2; -
10 Q151B1635TF2 Болт 24; -
11 31N41-04075 Rear oil seal collar 2; -
12 31N41-04080 Rear hub oil seal assembly. 2; -
13 24N-01076 Rear hub adjusting nut 2; -
14 24N-01081 Lock washer 2; -
15 Q2140616 Болт 6; -
16 3502N40-009 ABS rear ring 2; -
17 35N-02075 Rear brake drum 2; -
18 30621(7821E) Rear hub inner bearing assembly. 2; -
19 31N41-04015-A Rear hub 2; -
20 32217(7517E) Rear hub outer bearing assembly 2; -
21 2; -
22 31N74-04055/04056 Rear tire nut ; -
23 31N74-04051/04052 Tire bolt ; -
24 3550F-002 ABS sensor bracket 2; -
25 441.032.8090A Sensor 2; -
26 24N-03064 Rear axle half shaft gasket 2; -
27 24N-01090 Half shaft oil seal assembly 2; -
28 24N-03065-1030 Rear axle half shaft 2; -
29 24N-03063 Rear axle half shaft bolt 16; -
