  5. Задний вал;Rear shaft

Задний вал;Rear shaft
/ Shaanxi Shacman SX1255GP4

zoom-in zoom-out enlarge shrink circle-right circle-left file-text2 info cart

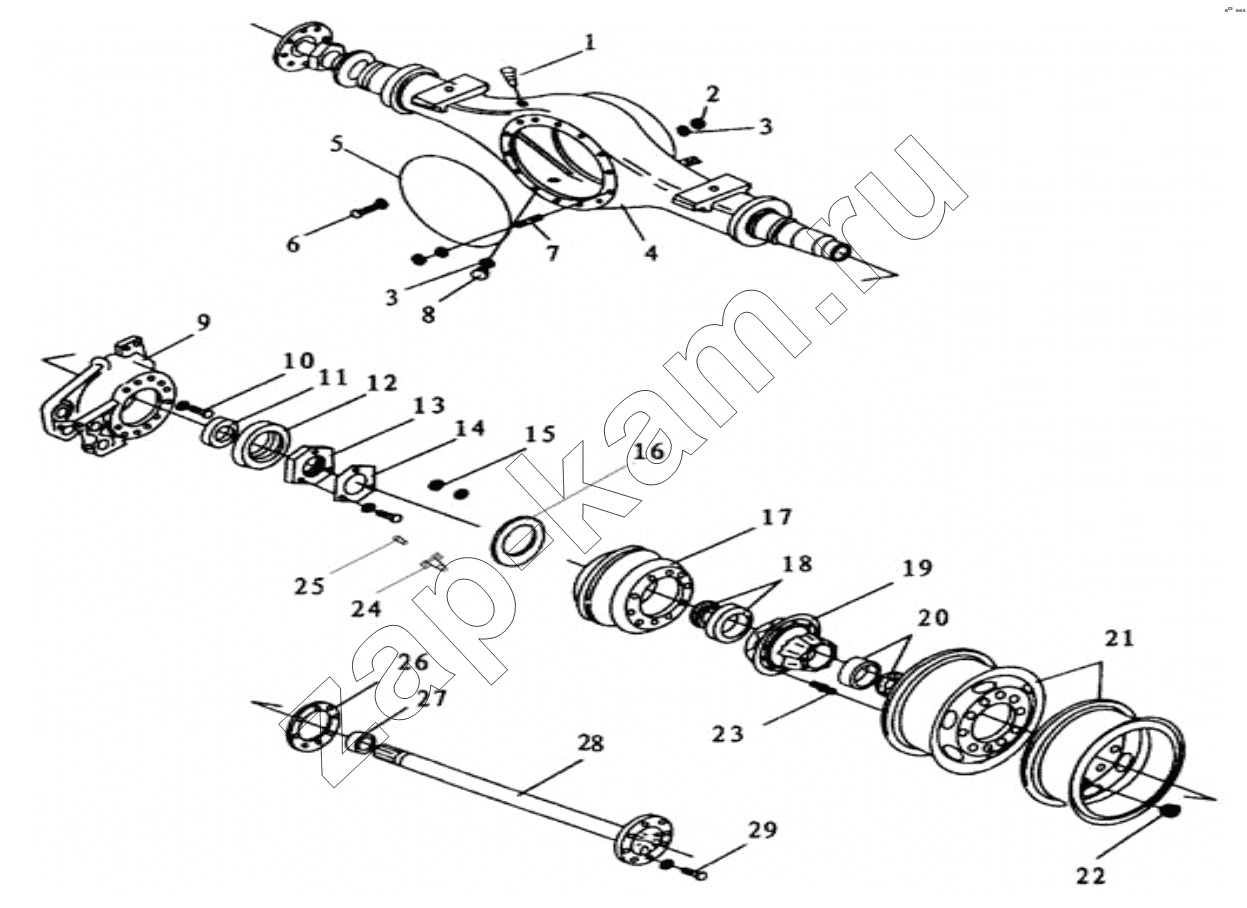

Схема/чертеж: Задний вал;Rear shaft / Shaanxi Shacman SX1255GP4
1
2
3
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
Поз. Артикул Название детали Кол-во Цена
2402L04-010 2402L04-010 Rear axle main reducer and bevel gear differential assembly ; -
830.502.0684 830.502.0684 Lubricate grease ; -
899.759.8154 899.759.8154 Bush ; -
Q350B12 Q350B12 Nut 4; -
Q150B1230 Q150B1230 Hex lock screw 4; -
3550N-014 3550N-014 Line Card--Rear Sensor ; -
Q40508 Q40508 Шайба 6; -
31L03-04075 31L03-04075 Heavy duty spring washers 16; -
Q18116100TF2 Q18116100TF2 Hexagonal flange face toothed bolts - used to fasten the main reducer 4; -
1; -
HT24L-029S2 HT24L-029S2 Rear axle system installation diagram ; -
XZ3502L29-010-A XZ3502L29-010-A Rear left brake assembly 1; -
XZ3502L29-015-A XZ3502L29-015-A Rear right brake assembly 1; -
3502L-050 3502L-050 Rear left/right adjusting arm assembly 2; -
168L-VII-A/168R-VII-A 168L-VII-A/168R-VII-A Rear left/right brake chamber assembly 1; -
3502L-080W-A 3502L-080W-A Rear left brake base plate and brake shoe assembly 1; -
3502L-081W-A 3502L-081W-A Rear right brake base plate with brake shoe assembly 1; -
35L32-02065 35L32-02065 Rear hub and brake drum assembly 2; -
1 24N-01068 Air breather 1; -
2 24N-01065-B Oil hole screw plug 2; -
3 24N-01066-B Sealing gasket-screw plug 3; -
4 2401L29-010 Rear axle housing assembly 1; -
5 2401L33-015 Gasket coating location diagram ; -
6 Q1811640TF2 Hex bolt 8; -
7 24N-01073 Drain plug ; -
8 3502L-080W/081W Square groove tapered magnetic screw plug-oil drain hole 1; -
9 Q151B1640TF2 Болт ; -
10 Q40516 Heavy-duty spring washer 16; -
11 Rear oil seal seat ring-rear hub oil seal Rear oil seal seat ring-rear hub oil seal 1; -
12 31L03-04080 Rear hub oil seal assy 2; -
13 24L-01076 Rear hub adjusting nut 2; -
14 24L-01081 Lock washer 2; -
15 Q150B0816 Болт 6; -
16 884.797.8124 ABS rear ring ; -
17 35L32-02075 Rear brake drum 2; -
18 30621E(7821E) Rear hub inner bearing assy 2; -
19 31L03-04015 Rear hub 2; -
20 30619 Rear hub outer bearing assy 2; -
21 wheel Wheel 2; -
22 31L-03055 Tire nut 20; -
23 31L-04051 Tyre bolt 20; -
24 3550F-002 ABS sensor bracket ; -
25 441.032.8384 ABS sensor ; -
26 24L-03064 Axle shaft gasket 2; -
27 24L-01090 Axle shaft seal assy 2; -
28 24L-03065-1050 Axle shaft 2; -
29 Q1811655TF2 Axle shaft bolt 20; -
