Задний вал;Rear shaft
/ Shaanxi Shacman SX1255GP4

zoom-in zoom-out enlarge shrink circle-right circle-left file-text2 info cart

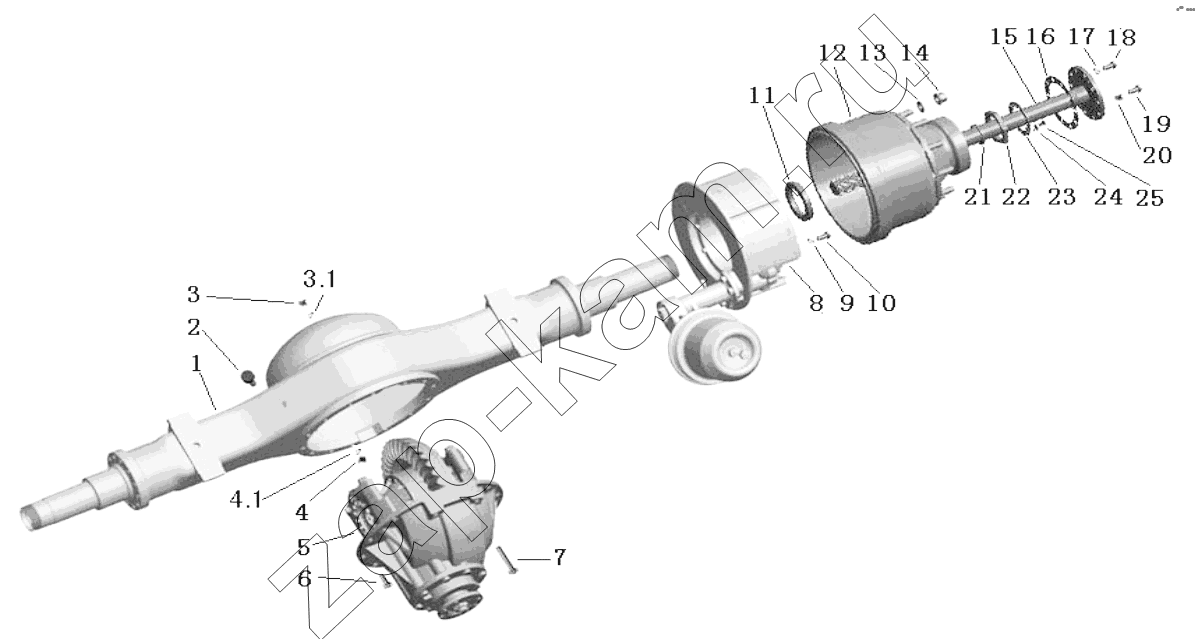

Схема/чертеж: Задний вал;Rear shaft / Shaanxi Shacman SX1255GP4
1
1
2
3
4
5
6
7
8
9
10
11
12
14
15
16
17
18
19
20
21
22
23
24
25
Поз. Артикул Название детали Кол-во Цена
1 HY1151D1-2401000 Rear axle housing assembly 1; -
1 HY1151D1/F-2401000 Rear axle housing assembly 1; -
2 HY1141-2400068 Vent plug assembly 1; -
3 Q618B03 Plug 1; -
4 Q62104 Screw plug-oil drain hole 1; -
5 HY1151B-2402010 Rear axle main reducer and bevel gear differential assembly 1; -
5.1 HY1151B-2402010A Rear axle main reducer and bevel gear differential assembly 1; -
5.2 HY1151B-2402010B Rear axle main reducer and bevel gear differential assembly 1; -
6 HY3228-2400016 Short bolts - fasten the main reducer assembly 8; -
7 HY3228-2400017 Long bolt - fasten the main reducer assembly 4; -
8 HY1151D1/F-3502010/020 Brake assembly 2; -
9 Q40516 Heavy-duty spring washer 16; -
10 Q151B1640TF2 Болт 16; -
11 HY3228-2400015 Oil seal seat ring 2; -
12 HY3228A-3104010 Rear hub brake drum with oil seal assembly 2; -
14 Q30022F3 Left/right wheel nut 20; -
15 HY3228-2403031 Half shaft 2; -
16 HY3228-2403033 Half shaft paper pad 2; -
17 Q40316 Шайба пружинная 20; -
18 HY3228-2403034 Half shaft bolt 20; -
19 Q150B1230 Hex lock screw 4; -
20 Q340B12 Гайка 4; -
21 FB65 80 12 B Half shaft oil seal 2; -
22 GB/T13871 Adjusting nut 2; -
23 HY3228-2400019 Lock washers 2; -
24 HY3228-2400018 Spring washer 6; -
25 Q40308 Шайба пружинная 6; 10 ₽ - 60 ₽
Q150B0816 Q150B0816 Болт ; -
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
