Жгут проводов кузова;The body harness
/ Shaanxi Shacman SX1255GP4

zoom-in zoom-out enlarge shrink circle-right circle-left file-text2 info cart

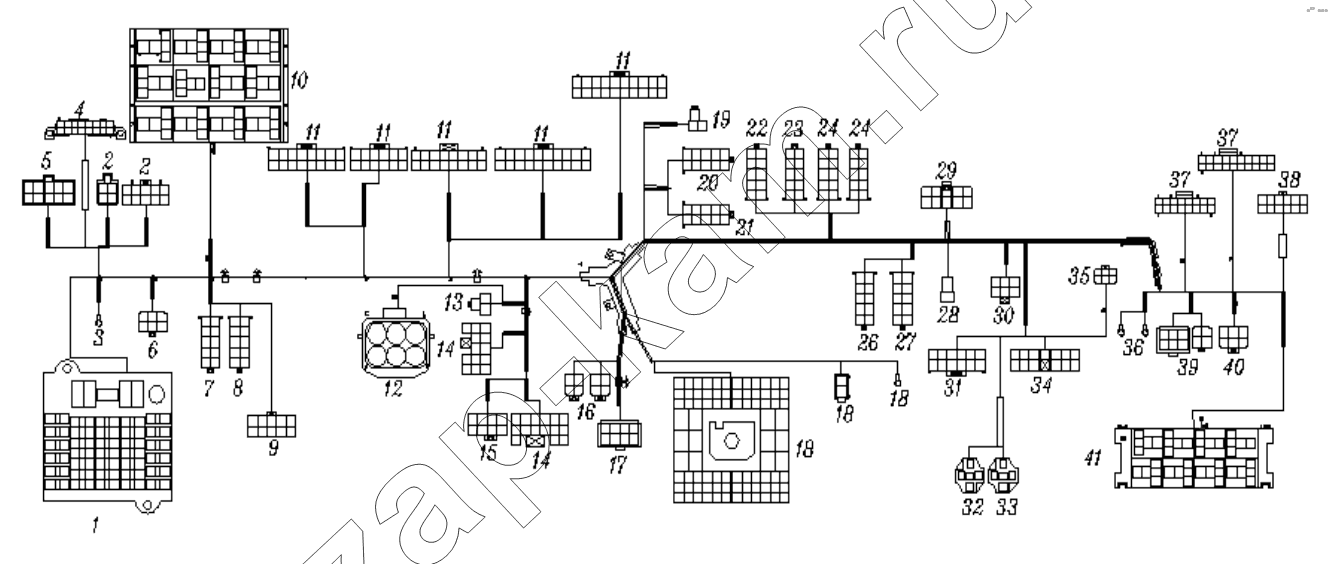

Схема/чертеж: Жгут проводов кузова;The body harness / Shaanxi Shacman SX1255GP4
1
2
2
3
4
5
6
7
8
9
10
11
11
11
11
11
12
13
14
14
15
16
17
18
18
18
19
20
21
22
23
24
24
26
27
28
29
30
31
32
33
34
35
36
37
37
38
39
40
41
Поз. Артикул Название детали Кол-во Цена
BZ40021106 BZ40021106 The body harness 1; -
Q2140616 Q2140616 Болт 1; -
Q41206 Q41206 Outer serrated lock washer 1; -
BZ40021107A BZ40021107A The body harness 1; -
Q41206 Q41206 Outer serrated lock washer 1; -
Q340B06 Q340B06 Nut 1; -
Q41206 Q41206 Outer serrated lock washer 1; -
Q2140616 Q2140616 Болт 1; -
1 Connect to fuse box Connect to fuse box ; -
2 Connect to the left door wiring harness Connect to the left door wiring harness ; -
3 Ground wire Ground wire ; -
4 Connect to diagnostic interface Connect to diagnostic interface ; -
5 Connect to ceiling wiring harness Connect to ceiling wiring harness ; -
6 Connect to the left lower floor wiring harness Connect to the left lower floor wiring harness ; -
7 Connect the front fog light switch Connect the front fog light switch ; -
8 Rear fog light switch Rear fog light switch ; -
9 Connect the headlight dimmer switch Connect the headlight dimmer switch ; -
10 Connect to four-claw or five-claw relays Connect to four-claw or five-claw relays ; -
11 Connect to instrument cluster Connect to instrument cluster ; -
12 Connect the accelerator pedal Connect the accelerator pedal ; -
13 Connect the brake light switch Connect the brake light switch ; -
14 Connect to combination switch Connect to combination switch ; -
15 Connect ignition lock Connect ignition lock ; -
16 Connect diode assembly Connect diode assembly ; -
17 Ground panel wiring harness Ground panel wiring harness ; -
18 Connect to SMJ box-left Connect to SMJ box-left ; -
19 Connect to backup power Connect to backup power ; -
20 Connect to the danger alarm switch Connect to the danger alarm switch ; -
21 Connect to remote throttle switch Connect to remote throttle switch ; -
22 Inter-axle differential switch Inter-axle differential switch ; -
23 Differential switch between wheels Differential switch between wheels ; -
24 Connect diagnostic switch Connect diagnostic switch ; -
25 Take-off force switch Take-off force switch ; -
26 Connect dryer switch Connect dryer switch ; -
27 Electric horn transfer switch Electric horn transfer switch ; -
28 Cigarette lighter Cigarette lighter ; -
29 receiver/player Receiver/player ; -
30 Connect the air conditioner heater wiring harness Connect the air conditioner heater wiring harness ; -
31 Connect to the multi-function buzzer Connect to the multi-function buzzer ; -
32 Connect to the turning flasher Connect to the turning flasher ; -
33 Connect to the turning flasher Connect to the turning flasher ; -
34 Wiper intermittent relay Wiper intermittent relay ; -
35 Connect to ABS wiring harness Connect to ABS wiring harness ; -
36 Ground wire Ground wire ; -
37 Jietianxingjian wiring harness Jietianxingjian wiring harness ; -
38 Connect the driving recorder wiring harness Connect the driving recorder wiring harness ; -
39 Connect the right door wiring harness Connect the right door wiring harness ; -
40 Connect the wiper motor Connect the wiper motor ; -
41 Connect to four-claw or five-claw relays Connect to four-claw or five-claw relays ; -
