Жгут проводов рамы;Frame wiring harness
/ Shaanxi Shacman SX1255GP4

zoom-in zoom-out enlarge shrink circle-right circle-left file-text2 info cart

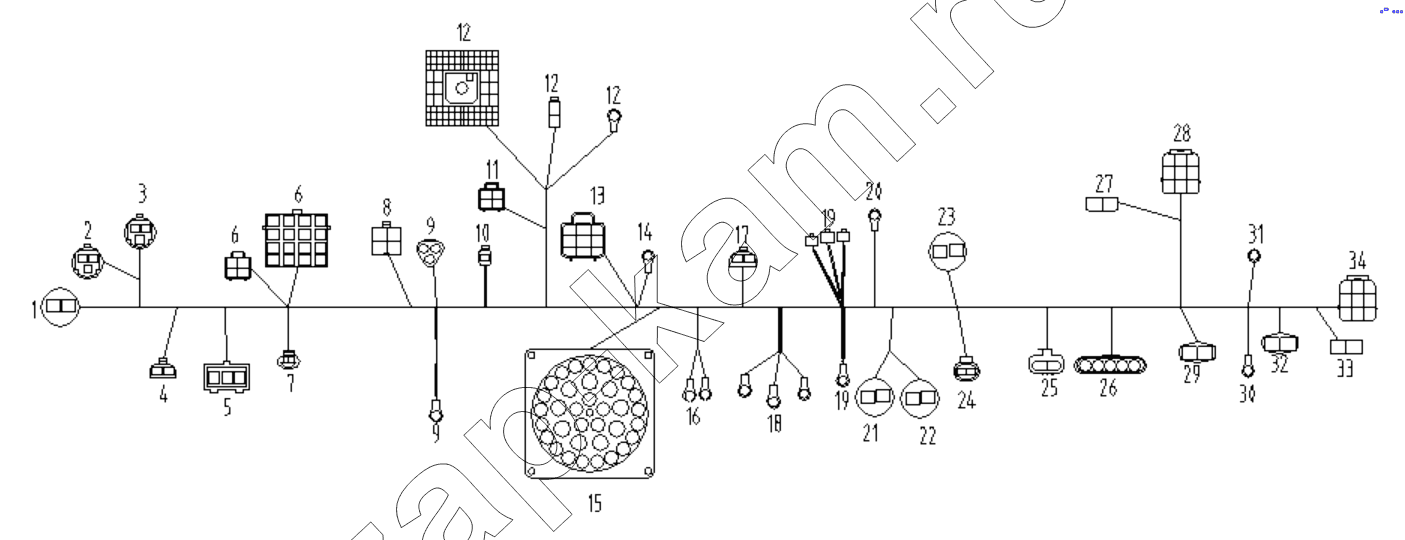

Схема/чертеж: Жгут проводов рамы;Frame wiring harness / Shaanxi Shacman SX1255GP4
1
2
3
4
5
6
6
7
8
9
9
10
11
12
12
12
13
14
15
16
17
18
19
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
Поз. Артикул Название детали Кол-во Цена
BZ40107139 BZ40107139 Frame wiring harness 1; -
BZ40107145 BZ40107145 Frame wiring harness 1; -
1 Connect dryer Connect dryer ; -
2 Connect the air pressure sensor Connect the air pressure sensor ; -
3 Connect the air pressure sensor Connect the air pressure sensor ; -
4 Connecting oil tank Connecting oil tank ; -
5 Connect odometer sensor Connect odometer sensor ; -
6 Connect to jet pump Connect to jet pump ; -
7 Connect to oil-water separator Connect to oil-water separator ; -
8 Connect the preheating relay Connect the preheating relay ; -
9 Connect the glow plug Connect the glow plug ; -
10 Connect the compressor Connect the compressor ; -
11 Connect the body harness Connect the body harness ; -
12 Connect the bumper wiring harness Connect the bumper wiring harness ; -
13 Ground connection Ground connection ; -
14 Connect the engine hardness Connect the engine hardness ; -
15 Connect the electric horn Connect the electric horn ; -
16 Connect the low water level alarm Connect the low water level alarm ; -
17 Connect the engine Connect the engine ; -
18 Connect the preheating relay Connect the preheating relay ; -
19 Connect the starter Connect the starter ; -
20 Connect the battery main switch Connect the battery main switch ; -
21 Switch to neutral position Switch to neutral position ; -
22 Connect reverse gear Connect reverse gear ; -
23 Connect single composite electromagnetic valve Connect single composite electromagnetic valve ; -
24 Connect nozzle Connect nozzle ; -
25 Connect temperature sensor Connect temperature sensor ; -
26 Connect NOx sensor Connect nox sensor ; -
27 Connect rectangular back clearance lamp Connect rectangular back clearance lamp ; -
28 Connect three-color tail lamp Connect three-color tail lamp ; -
29 Connect side marker light beam Connect side marker light beam ; -
30 Ground connection Ground connection ; -
31 Connect back-up buzzer Connect back-up buzzer ; -
32 Connect side marker light beam Connect side marker light beam ; -
33 Connect rectangular back clearance lamp Connect rectangular back clearance lamp ; -
34 Connect three-color tail lamp Connect three-color tail lamp ; -
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
