STR

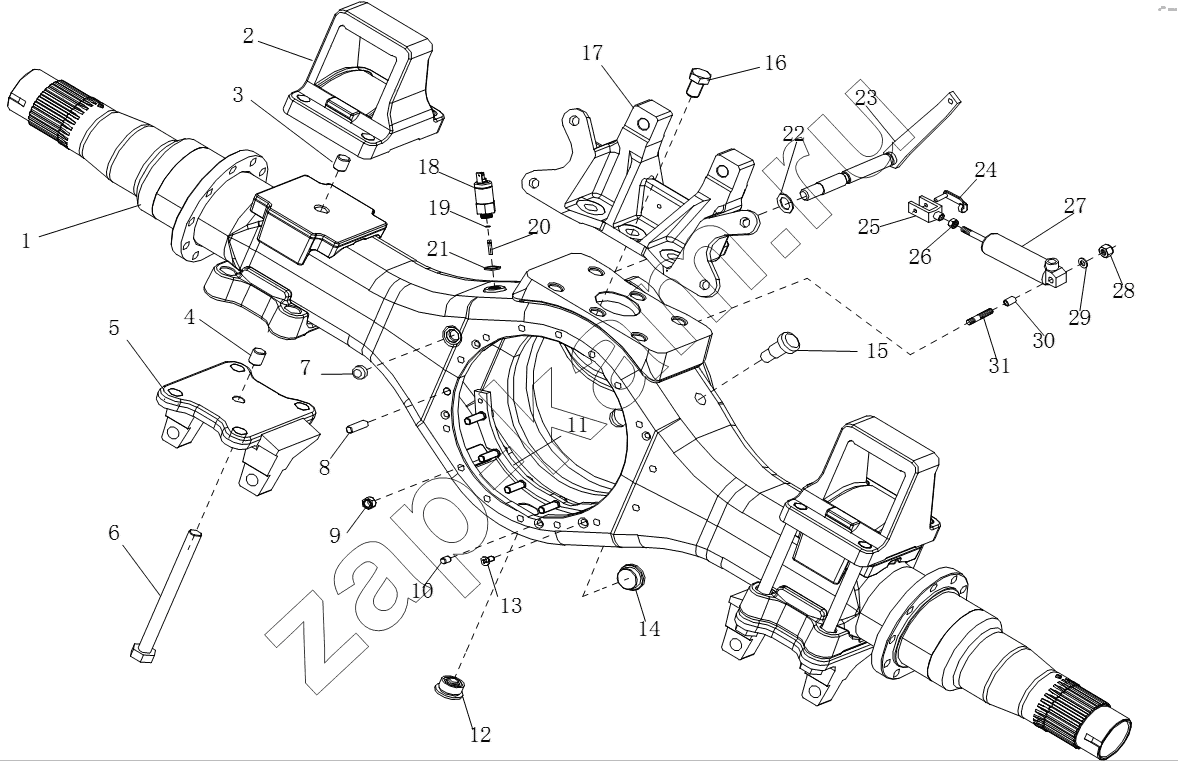

/ Shaanxi Shacman SX3256DT384
1
1
1
1
1
1
1
1
2
2
2
2
2
2
2
2
3
4
5
5
6
7
8
9
10
11
11
12
13
14
14
15
16
16
17
18
19
20
20
20
20
20
20
21
22
23
23
24
25
26
27
28
29
30
31
| Поз. | Артикул | Название детали | Кол-во | Цена | |
|---|---|---|---|---|---|
| 1 | DZ9112332065 | Rear axle housing assembly | 1; | - | |
| 1 | DZ9114330208 | Кожух среднего моста | 1; | - | |
| 1 | DZ9112330995 | Rear axle housing assembly | 1; | - | |
| 1 | DZ9114330995 | Middle axle housing | 1; | - | |
| 1 | DZ91129330061 | Rear axle housing assembly | 1; | - | |
| 1 | DZ9112330165 | Rear axle housing assembly | 1; | - | |
| 1 | DZ9114330308 | Middle axle housing | 1; | - | |
| 1 | DZ91129330062 | Middle axle housing | 1; | - | |
| 2 | DZ9114524001 | Spring bracket of f.r axle | 1; | - | |
| 2 | DZ9114524002 | Spring bracket of f.r axle | 1; | - | |
| 2 | DZ9114524003 | Spring bracket of f.r axle | 1; | - | |
| 2 | DZ9114524004 | Spring bracket of f.r axle | 1; | - | |
| 2 | DZ9114520629 | Spring bracket of f.r axle | 1; | - | |
| 2 | DZ9114520630 | Spring bracket of f.r axle | 1; | - | |
| 2 | DZ9114520631 | Spring bracket of f.r axle | 1; | - | |
| 2 | DZ9114520632 | Spring bracket of f.r axle | 1; | - | |
| 3 | 199014520256 | Pin | 4; | - | |
| 4 | 190003901905 | Pin | 4; | - | |
| 5 | DZ9114520292 | Lower torque rod of bracket | 2; | - | |
| 5 | DZ9114520293 | Lower torque rod of bracket | 2; | - | |
| 6 | DZ9114520116 | Hex bolt | 16; | - | |
| 7 | 190003989290 | Bowling plug | 2; | - | |
| 8 | 190003810631 | Stud | 8; | - | |
| 9 | 190003888457 | Гайка самоблокировочная | 32; | - | |
| 10 | 190003901506 | Pin | 2; | - | |
| 11 | 199014330147 | Bow hold-open catch assembly | 2; | - | |
| 11 | 199014330146 | Bow hold-open catch assembly | 2; | - | |
| 12 | DZ9112330623 | Magnetic plug assembly | 2; | - | |
| 13 | 190003825420 | Slit bolt | 8; | - | |
| 14 | DZ9112330620 | Plug screw assembly | 1; | - | |
| 14 | 190003962021 | Hex plug screw | 1; | - | |
| 15 | 199000330006 | Air vent assembly | 2; | - | |
| 16 | Q151B2030TF2 | Hex bolt | 4; | - | |
| 16 | Q151В2040ТF2 | Болт | 8; | - | |
| 17 | 199014340042 | Chamber break | 2; | - | |
| 18 | 2190-3834010 | Pressure switch | 2; | - | |
| 19 | Q43705 | Шайба | 2; | - | |
| 20 | DZ9112330043 | Pin | 1; | - | |
| 20 | DZ9112330044 | Pin | 1; | - | |
| 20 | DZ9112330042 | Pin | 1; | - | |
| 20 | DZ9112330041 | Pin | 1; | - | |
| 20 | 199112330016 | Pin | 1; | - | |
| 20 | 169000330008 | Pin | 1; | - | |
| 21 | 190003098020 | Packing washer | 2; | - | |
| 22 | 1680M0320015 | O style packing ring | 2; | - | |
| 23 | 199014330125 | Operation handle assembly | 1; | - | |
| 23 | 199014330126 | Operation handle assembly | 1; | - | |
| 24 | 178000350055 | Flat head lock | 2; | - | |
| 25 | 190003964418 | Y-type hinge | 2; | - | |
| 26 | 190003870221 | Hex.nut | 2; | - | |
| 27 | 179100360018 | Working cylinder | 2; | - | |
| 28 | 190003888451 | Hex nut | 2; | - | |
| 29 | 190003935007 | Plain washer | 2; | - | |
| 30 | 161000060084 | Space collar | 2; | - | |
| 31 | 190003813458 | Stud | 2; | - |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
