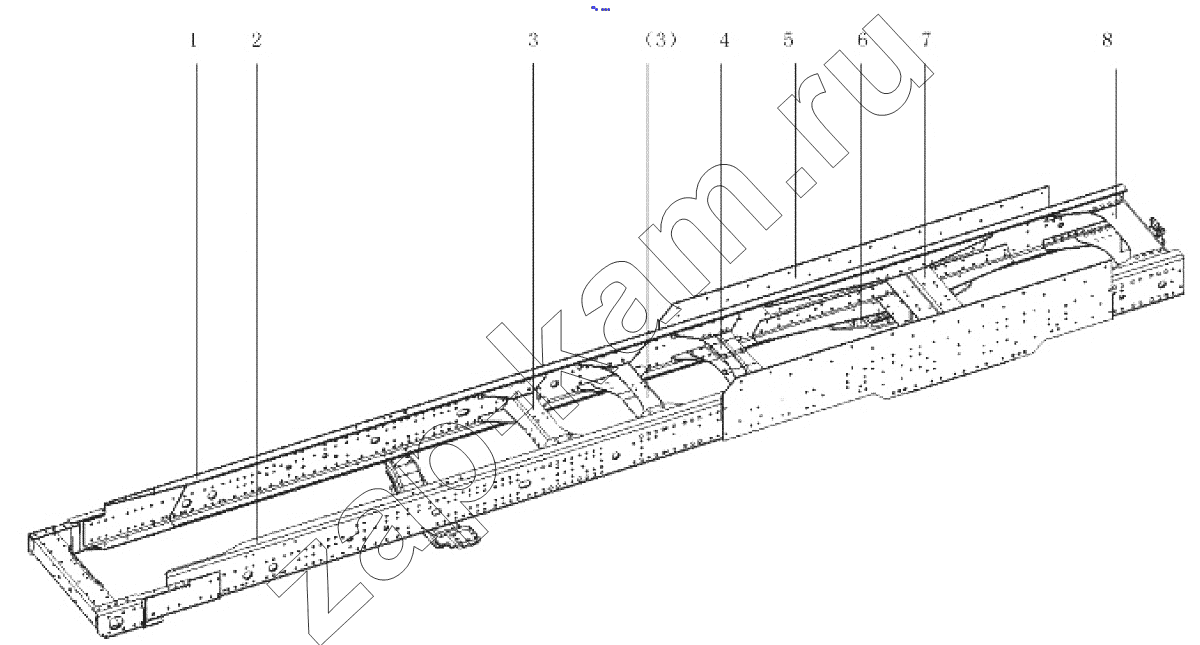

Frame assy
/ Shaanxi Shacman SX3258DR384—F2000

Тип техники Не выбрано Грузовые Двигатели

Марка Не выбрано DAF DongFeng FAW Foton HOWO IVECO JAC Motors MAN Shaanxi SITRAK Volvo Автокомпонент Плюс ЗИЛ КАЗ КамАЗ Мадара НефАЗ СЗАП Тонар УралАЗ

Модель Не выбрано DeLONG Е-3 (самосвал) (2008) DeLONG Е-3 (тягач) (2008) MAN-F2000 (SX3254JS384) (2008) Shacman F2000 (2013) Shacman F3000 (2013) Shacman SX1255GP4 (2016) Shacman SX13164N456 Shacman SX3255DR385 (2011) Shacman SX3256DR384 (F3000) (2015) Shacman SX3256DT384 (2011) Shacman SX32586T384 (X3000) Shacman SX3258DR384 (F3000) Shacman SX3258DR384—F2000 Shacman SX3316DR366 (F2000) (2011) Shacman SX3316DT366 (2011) Shacman SX3316DT426C Shacman SX3316DV386 Shacman SX3316HT406C Shacman SX331853386 (X5000) (2023) Shacman SX331863366 (X3000) (2021) Shacman SX33186T386 (X3000) Shacman SX3318DT366 (F3000) Shacman SX3318HT366TL Shacman SX4188YY381 Shacman SX4255DV385 (2011) Shacman SX42564V324 (X3000) Shacman SX4256NT324 Shacman SX42584V324 Shacman SX42584V384TL Shacman SX5256GJBMR364 (2018) Shacman SX5315GJB5V326C (X3000) (2021) Shacman SX5318GJBDT386TL SX-3255-DR 3804B 6х4 SX32566R384

Схема > Не выбрано High Roofcab Welding assy Left Fender Right Fender Front Cover Dashboard (10 Interior) Hand Griper Tool Box Tool Box Door window lifter Left operated Door window lifter Right operated Door and Door glass Door and Door glass Door covering left Door covering right Door arrestor and door acuating system right Door hinge left and right Seat Safety belt Lower berth Upper Berth Ail-round curtain Transverse curtain Headlining mounting and grab hadle Side-wall paneling closed with nounting I Luggage rack Floor mats front and anti-skid strip Sun visor roller Dashboard panelling Engine cowling insulation Noise insulation cab Front windshield glass assembly Wiper system Windscreen washer pump and accessories Rearview mirror Rearview mirror left bracket Rearview mirror right bracket View mirror under the door Sun visor Melt-on foil Sound proofing Decorative assembly Decorative assembly Decorative assembly Decorative assembly Decorative assembly Decorative assembly MAN7.5 ton drum steering shaft MAN Housing middle axle MAN Two-stage deceleration drive axle rear axle axle shell MAN Two-stage deceleration drive middle axle middle section MAN Two-stage deceleration drive middle axle middle section MAN Two-stage deceleration drive in the middle of the rear axle MAN Two-stage deceleration drive axle wheel side Air cleaning device (F3000-WP12) Air cleaning device (F3000-WP12) Cooler system (F3000-WP12) Dustproof net Expansion box system Preventing circumfluence system Exhausting and muffler F3000 (WP12 IV 6x4) Urea supply tank Engine suspension Gear box support Shifting device Pull diaphragm clutch Pull clutch control device Propeller shaft Front suspension (DC95259690902) Rear suspension I Rear suspension II Front shock absorber Front stabilizer assy Rear stabilizer assy Wheeling System Steering transmission device Steering column adjustable Hydraulic device Frame assy Fuel tank assembly 380L Accelerograph control device Exhaust brake control Air compressor outer line Air tanl fixing (I) Air compressor outer line Air dryer, four-loop guard valve, air tank fixing Dual-circuit brake system (6x4) Connecting parts, line & nipple joint Connecting parts, line & nipple joint Connecting parts, line & nipple joint Serve brake control device Parking brake control device Switch and cigarette lighter Switch Commbination switch Brake light switch Diagnosis panel Loudhailer wire Left, right front wiring Electronical horn Air pressure sensor Combination gauge assy with frame Switchm radio and cigarette lighter Exhaust brake switch Near switch Electric panel I Center electric panel II Electric panel scutcheon Plug Center electrical system (Inside the dashboard) Other cabin wiring Relay, fuse Other cabin wiring Relay, fuse ABS controller Other cabin wiring Relay, fuse Switch Other cabin wiring Relay, fuse Cab inner electronical device Pump Plug key for electric windows lifter switch Floodlight Floodlight on rear pannel Wiring Chassis electrical appliances-WP12E40-F3000HX-64-Dump truck-integrated urea tank-New cable-Russia Chassis electrical appliances-WP12E40-F3000HX-64-Dump truck-integrated urea tank-New cable-Russia Chassis electrical appliances-WP12E40-F3000HX-64-Dump truck-integrated urea tank-New cable-Russia Chassis electrical appliances-WP12E40-F3000HX-64-Dump truck-integrated urea tank-New cable-Russia Chassis electrical appliances-WP12E40-F3000HX-64-Dump truck-integrated urea tank-New cable-Russia Chassis electrical appliances-WP12E40-F3000HX-64-Dump truck-integrated urea tank-New cable-Russia Chassis electrical appliances-cold zone Valve Chassis appliances Chassis electrical appliances/WP10/Cold zone Valve Chassis electrical appliances/cold zone Chassis electrical appliances/cold zone Chassis appliances/Accessories/K38/B38/WABCO 6ABS/New Chassis electrical appliances/cold zone Battery box mounting Battery box Main battery switch Headlamps Foglights Flashers in bumper High position lights Side-marker lights Taillight bracket/universal/F3000 Air system Air system Air intake box on cab Air duct Air condition pipes Heater device (with air condition) Heater device (with air condition), (Suitable for WP10, WP12, WD12 engines) Temperature sensor Air condition controller Electronic control units for air conditioning Cab tilting mechanism l.h. drive vehicle Front bearing spring Cab locking device Cab hydraulic tilting equipment Left-right fender bracket Fender left behind cab Fender right behind cab Foot panel bracket Left door step Right door step Bumper and front bracket Rear anti-drilling protection frame Cab vehicle type letters Cab decoration signs and reflective signs Fram forepart accessory Draw gear Parking wedge

1

2

3

3

4

5

6

7

8

Поз.	Артикул		Название детали	Кол-во	Цена
1	SZ951002747		Right carling assy	1;	-
2	SZ951002746		Left carling assy	1;	-
3	DZ9114518970		Cross member assy	1;	-
4	DZ9114518985		Cross member assy	2;	-
5	SZ951002318		Support plate	1;	-
6	DZ9114510011		Connection base	2;	-
7	DZ95259516680		Cross member assy	1;	-
8	DZ95259511827		Rear cross member assy	1;	-
29	DZ95259511825		Fram assey	1;	-

Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
