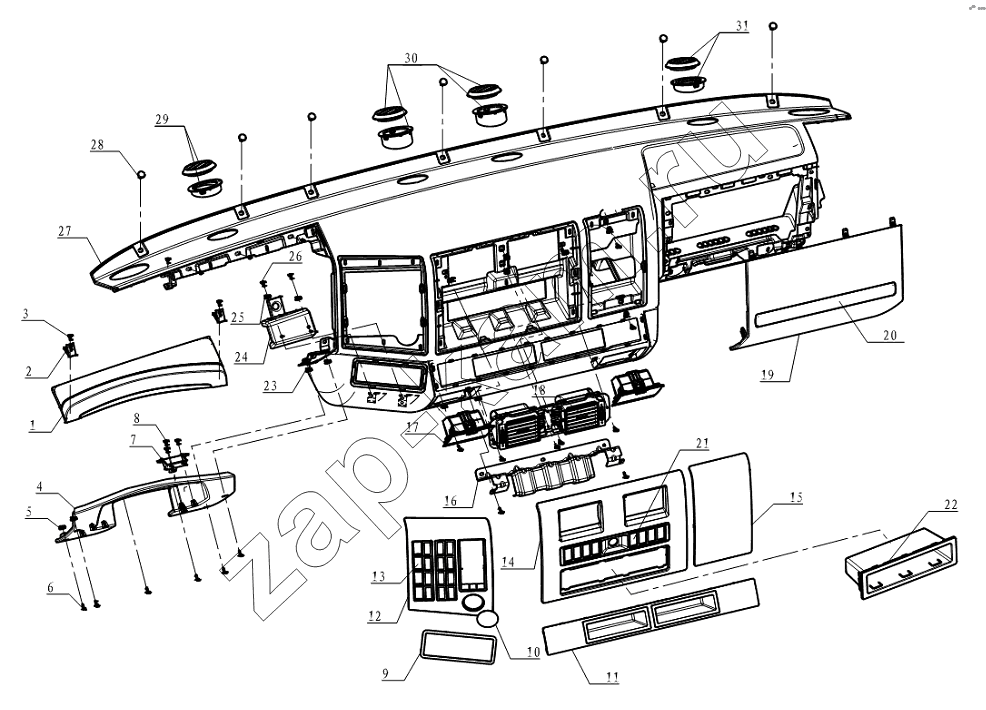

DASHBOARD
/ Shaanxi Shacman SX3316DR366 (F2000)
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
| Поз. | Артикул | Название детали | Кол-во | Цена | |
|---|---|---|---|---|---|
| 1 | DZ13241162200 | Cluster hood | 1; | - | |
| 2 | DZ13241162203 | Cluster hood support | 2; | - | |
| 3 | Q2714216 | Self tapping screw | 2; | - | |
| 4 | DZ13241162002 | Knee bolster | 1; | - | |
| 5 | 06.13189.0099 | Пластина-фиксатор SТ4,8-2-МАN183-В1 | 4; | - | |
| 6 | Q2714216 | Self tapping screw | 6; | - | |
| 7 | DZ13241841416 | Temperature sensor bracket | 1; | - | |
| 8 | Q2714216 | Self tapping screw | 3; | - | |
| 9 | DZ13241162112 | Vcd bezel | 1; | - | |
| 10 | DZ95189584614 | Plug | 1; | - | |
| 11 | DZ13241162015 | Center plate w box assy | 1; | - | |
| 12 | DZ95189583611 | Button panel | 1; | - | |
| 13 | DZ95189584613 | Button trim | 12; | - | |
| 14 | DZ13241162160 | Centre a/c plate | 1; | - | |
| 15 | DZ13241162190 | Maintaince garnish panel | 1; | - | |
| 16 | DZ13241161011 | Ip lower brace | 1; | - | |
| 17 | DZ13241162700 | Ash tray assy | 2; | - | |
| 18 | DZ13241842430 | Centre air vent w bracket assy | 1; | - | |
| 19 | DZ13241162800 | Fuse-box cover plate | 1; | - | |
| 20 | DZ13241162802 | Fuse-box cover trim | 1; | - | |
| 21 | DZ95189584613 | Button trim | 8; | - | |
| 22 | DZ13241160019 | Big store box | 1; | - | |
| 23 | 06.13189.0099 | Пластина-фиксатор SТ4,8-2-МАN183-В1 | 2; | - | |
| 24 | DZ13241162053 | Vcd bracket | 1; | - | |
| 25 | 06.13189.0099 | Пластина-фиксатор SТ4,8-2-МАN183-В1 | 2; | - | |
| 26 | Q2714216 | Self tapping screw | 2; | - | |
| 27 | DZ13241162051 | Dashboard | 1; | - | |
| 28 | DZ13241162215 | Plastic push pin | 7; | - | |
| 29 | DZ13241842410 | Nozzle assembly | 1; | - | |
| 30 | DZ13241842414 | Nozzle assembly | 2; | - | |
| 31 | DZ13241842412 | Nozzle assembly | 1; | - |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
