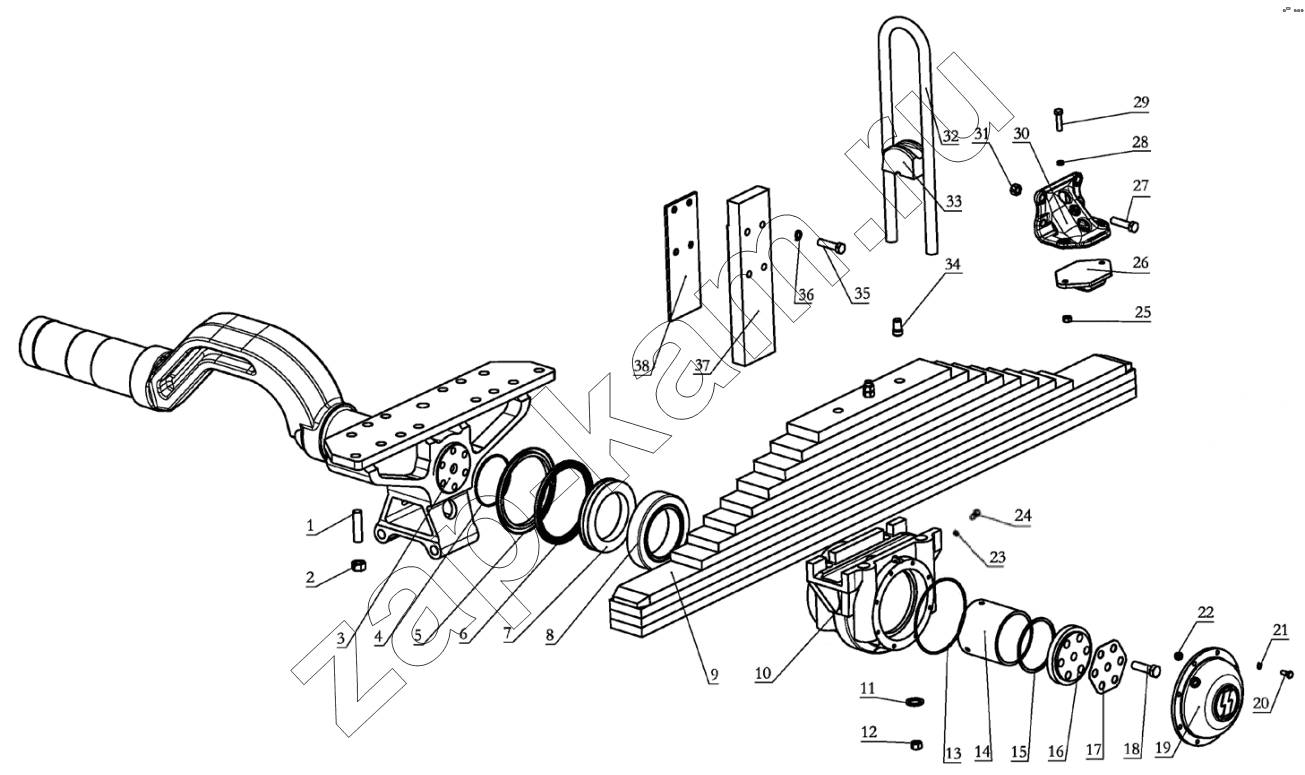

REAR SUSPENSION 1
/ Shaanxi Shacman SX3316DR366 (F2000)
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
15
15
15
15
15
15
15
15
15
15
15
15
15
15
15
15
15
15
15
15
15
15
15
15
15
15
15
15
15
15
15
15
15
15
15
15
15
15
15
15
15
15
15
15
15
15
15
15
16
17
18
19
19
19
19
20
21
22
23
24
25
26
27
27
28
29
30
31
32
33
34
35
36
37
38
38
38
38
38
38
38
38
38
| Поз. | Артикул | Название детали | Кол-во | Цена | |
|---|---|---|---|---|---|
| 1 | 199014520227 | Stud bolts | 28; | - | |
| 2 | 190003871353 | Type 1 Hex Nut - Fine Tooth - A-- Nut | 28; | - | |
| 3 | DZ91319523215 | Balance shaft assembly | 1; | - | |
| 4 | 161400130062 | Кольцо уплотнительное | 2; | - | |
| 5 | DZ91259520222 | Ring | 2; | - | |
| 6 | AZ9114520223 | Кольцо уплотнительное | 2; | - | |
| 7 | 199114520136 | Кольцо уплотнительное | 2; | - | |
| 8 | 199114520042 | Подшипник | 4; | - | |
| 9 | DZ9114520240 | Рессора задняя в сборе | 2; | - | |
| 10 | DZ91259525035 | Balanced axle housing | 2; | - | |
| 11 | 188000340022 | Washer | 16; | - | |
| 12 | 190003888749 | Self-locking thin nuts | 16; | - | |
| 13 | DZ91259520036 | O-ring seal | 2; | - | |
| 14 | 199014520191 | Втулка | 2; | - | |
| 15 | 199014520192 | Positioning washer | 2; | - | |
| 15 | 199014520193 | Positioning washer | 2; | - | |
| 15 | 199014520194 | Positioning washer | 2; | - | |
| 15 | 199014520303 | Positioning washer | 2; | - | |
| 15 | 199014520306 | Positioning washer | 2; | - | |
| 15 | 199114520059 | Positioning washer | 2; | - | |
| 15 | AZ9100520008 | Positioning washer | 2; | - | |
| 16 | AZ9114520188 | Прижим на подшипник | 2; | - | |
| 17 | DZ91259520265 | Stop washer | 2; | - | |
| 18 | Q151B1655TF2 | Hex head bolt | 12; | - | |
| 19 | DZ91259520211 | Shell cover | 1; | - | |
| 19 | DZ91259520212 | Shell cover | 1; | - | |
| 20 | Q150B0820 | Болт | 16; | - | |
| 21 | Q40308 | Шайба пружинная | 16; | 10 ₽ - 60 ₽ | |
| 22 | 190003962021 | Hex plug screw | 2; | - | |
| 23 | Q72308 | Sealing washer | 2; | - | |
| 24 | Q150B0810 | Hex bolt | 2; | - | |
| 25 | Q340B10 | Nut | 8; | 80 ₽ | |
| 26 | SZ952000730 | Buffer block assembly | 4; | - | |
| 27 | Q151B1455TF2 | Болт | 8; | - | |
| 27 | Q151B1465TF2 | Болт | ; | - | |
| 28 | Q40310 | Шайба | 8; | - | |
| 29 | Q150B1040 | Болт | 8; | - | |
| 30 | DZ95259521011 | Buffer block bracket | 4; | - | |
| 31 | 190003888620 | Self-locking nuts | 16; | - | |
| 32 | DZ9118520124 | Rear spring riding bolt | 8; | - | |
| 33 | 199000520021 | Седло стремянки | 4; | - | |
| 34 | 199000520006 | Направляющий палец | 4; | - | |
| 35 | Q40314 | Шайба пружинная | 16; | - | |
| 36 | Q151B1465TF2 | Болт | 16; | - | |
| 37 | DZ95259520435 | guide plate | 4; | - | |
| 38 | DZ95259520306 | Balance board | 4; | - | |
| 38 | DZ95259520302 | Balance board | 4; | - | |
| 38 | DZ95259520301 | Balance board | 4; | - |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
