  5. STR REAR AXLE DRIVE

STR REAR AXLE DRIVE
/ Shaanxi Shacman SX3316DR366 (F2000)

zoom-in zoom-out enlarge shrink circle-right circle-left file-text2 info cart

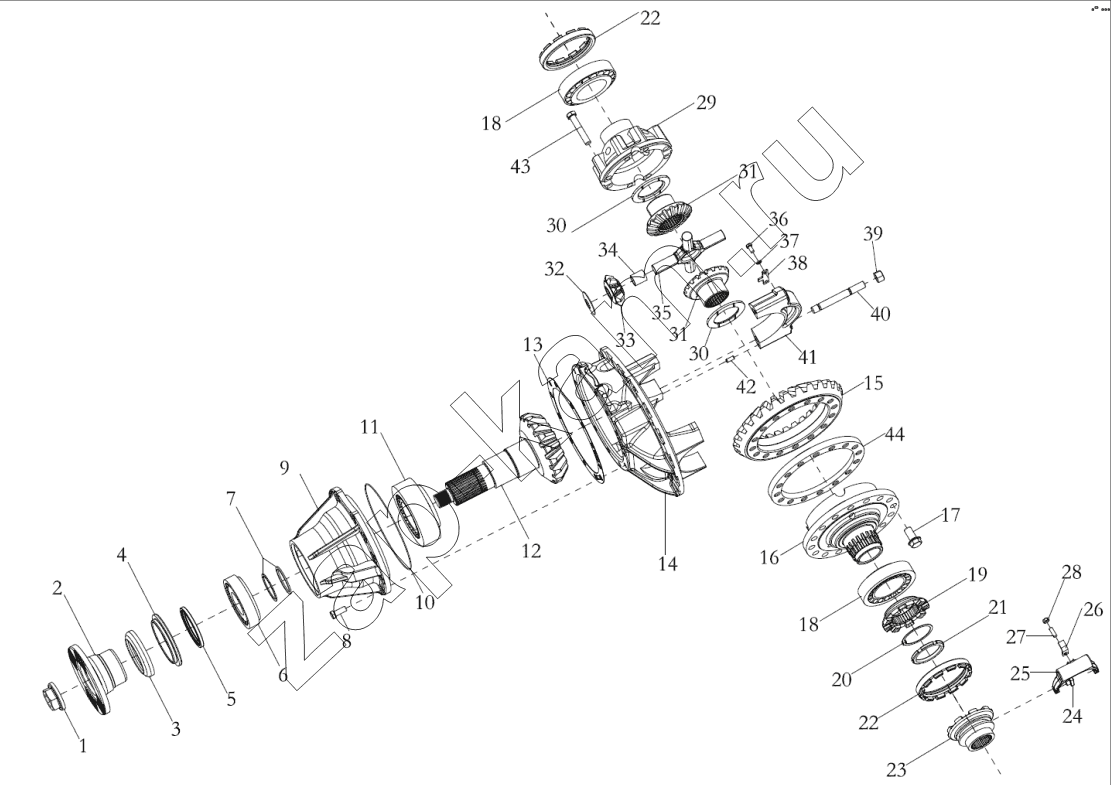

Схема/чертеж: STR REAR AXLE DRIVE / Shaanxi Shacman SX3316DR366 (F2000)
1
2
2
2
2
3
4
5
6
7
7
7
7
7
7
7
7
7
7
7
7
7
7
7
7
7
7
7
7
7
7
7
7
7
7
7
7
7
7
7
7
7
7
7
7
7
7
7
7
7
7
7
7
7
7
7
7
7
7
7
7
7
7
7
7
7
7
7
7
7
7
7
7
7
7
7
7
7
7
7
7
7
7
7
7
7
7
7
7
7
7
7
7
7
7
7
7
7
7
7
7
7
7
7
7
7
7
7
7
7
7
7
7
7
7
7
7
7
7
7
7
7
7
7
7
7
7
7
7
7
7
7
7
7
7
7
7
7
7
7
7
7
7
7
7
7
7
7
7
7
7
7
7
7
7
7
7
7
7
7
7
7
7
7
7
7
7
7
7
7
7
7
7
7
7
7
7
7
7
7
7
7
7
7
7
7
7
7
7
7
7
7
7
7
7
7
7
7
7
7
7
7
7
7
7
8
9
9
9
9
10
11
11
11
11
12
12
12
12
12
12
12
12
12
12
12
12
12
12
12
12
12
12
12
12
12
12
12
12
12
12
12
12
12
12
12
12
12
12
12
12
13
13
13
13
13
13
13
13
13
13
13
13
13
13
13
13
14
14
14
14
15
15
15
15
15
15
15
15
15
15
15
15
15
15
15
15
15
15
15
15
15
15
15
15
15
15
15
15
15
15
15
15
15
15
15
15
16
16
16
16
16
16
16
16
16
17
17
17
17
17
17
17
17
17
18
18
19
20
21
22
22
23
24
25
26
27
28
29
30
30
30
30
30
30
30
30
30
30
30
30
30
30
30
30
30
30
30
30
30
30
30
30
30
30
30
30
30
30
31
31
32
33
34
35
35
35
35
36
37
38
39
40
41
42
43
44
Поз. Артикул Название детали Кол-во Цена
1 DZ91129320007 Flange nut 1; -
2 DZ9112320631 Flange assembly 1; -
2 DZ9112320632 Flange 1; -
3 179000320012 Prevented dust cap 1; -
4 199012320121 Ring 1; -
5 DZ9112320920 Axle packing ring 1; -
6 190003326236 Row-steep roller bearing 1; -
7 188000320008 Adjusting washer 1; -
7 188000320015 Adjusting washer 1; -
7 188000320014 Adjusting washer 1; -
7 188000320013 Adjusting washer 1; -
7 188000320012 Adjusting washer 1; -
7 188000320011 Adjusting washer 1; -
7 188000320010 Adjusting washer 1; -
7 188000320009 Adjusting washer 1; -
7 188000320007 Adjusting washer 1; -
7 188000320006 Adjusting washer 1; -
7 188000320005 Adjusting washer 1; -
7 188000320004 Adjusting washer 1; -
7 188000320003 Adjusting washer 1; -
7 188000320002 Adjusting washer 1; -
8 190003802623 Hex bolt 12; -
9 199012320131 Bearing seat 1; -
9 199012320103 Bearing seat 1; -
10 199012320133 Packing ring 1; -
11 190003326546 Row-steep roller bearing 1; -
11 190003326547 Row-steep roller bearing 1; -
12 DZ9112320626 Bevel drive gear 1; -
12 DZ9112320625 Bevel drive gear 1; -
12 DZ9112320623 Bevel drive gear 1; -
12 DZ9112320621 Bevel drive gear 1; -
12 DZ9112320620 Bevel drive gear 1; -
12 DZ9112320622 Bevel drive gear 1; -
13 199012320173 Adjusting washer 1; -
13 199012320174 Adjusting washer 1; -
13 199012320175 Adjusting washer 1; -
13 199012320176 Adjusting washer 1; -
14 199012320098 Main speed reducer case assy 1; -
14 199012320097 Main speed reducer case 1; -
15 199112320001 Bevel gear 1; -
15 199012320013 Bevel gear 1; -
15 199012320037 Bevel gear 1; -
15 199012320035 Bevel gear 1; -
15 199012320006 Bevel gear 1; -
15 199012320125 Bevel gear 1; -
16 199012320027 Differential housing 1; -
16 199012320197 Differential housing 1; -
16 AZ9112320197 Кожух дифференциала 1; -
17 DZ9114320013 Hex bolt 16; -
17 DZ9114320011 Болт 16; -
17 DZ9114320012 Болт 16; -
18 190003326148 Row-steeproller bearing 2; -
19 138090320155 Fixed engage cowl 1; -
20 138090320158 Locking washer 1; -
21 138090320157 Circle nut 1; -
22 138090320159 Differential adjusting nut 2; -
23 138090320156 Sliding engage cowl 1; -
24 118000320077 Sliding block 2; -
25 199012320014 Declutch shift 1; -
26 199012320023 Bend plate 1; -
27 190003902481 Slit nut 1; -
28 190003871252 Hex nut 1; -
29 199012320008 Differential case 1; -
30 118000320131 Adjusting washer 1; -
30 118000320132 Adjusting washer 1; -
30 199012320129 Adjusting washer 1; -
30 138090320169 Adjusting washer 1; -
30 118000320012 Adjusting washer 1; -
31 199012320009 Axle shaft gear 2; -
32 DZ90129320082 Planet gear washer 4; -
33 DZ90129320003 Planet gear 4; -
34 DZ90129320001 Planet gear bush 4; -
35 DZ90129320000 Cross axle 1; -
35 DZ90129320002 Cross axle assy 1; -
36 190003802411 Hex bolt 4; -
37 190003931102 Шайба пружинная 4; -
38 DZ9112320083 Кольцо стопорное 2; -
39 190003888459 Гайка VМ16х1,5DIN980 4; -
40 190003810852 Stud 4; -
41 DZ9112320002 Differential bearing cover 2; -
42 190003901420 Pin 4; -
43 190003803712 Hex bolt 8; -
44 AZ9112320153 Кольцо внутренее 1; -
