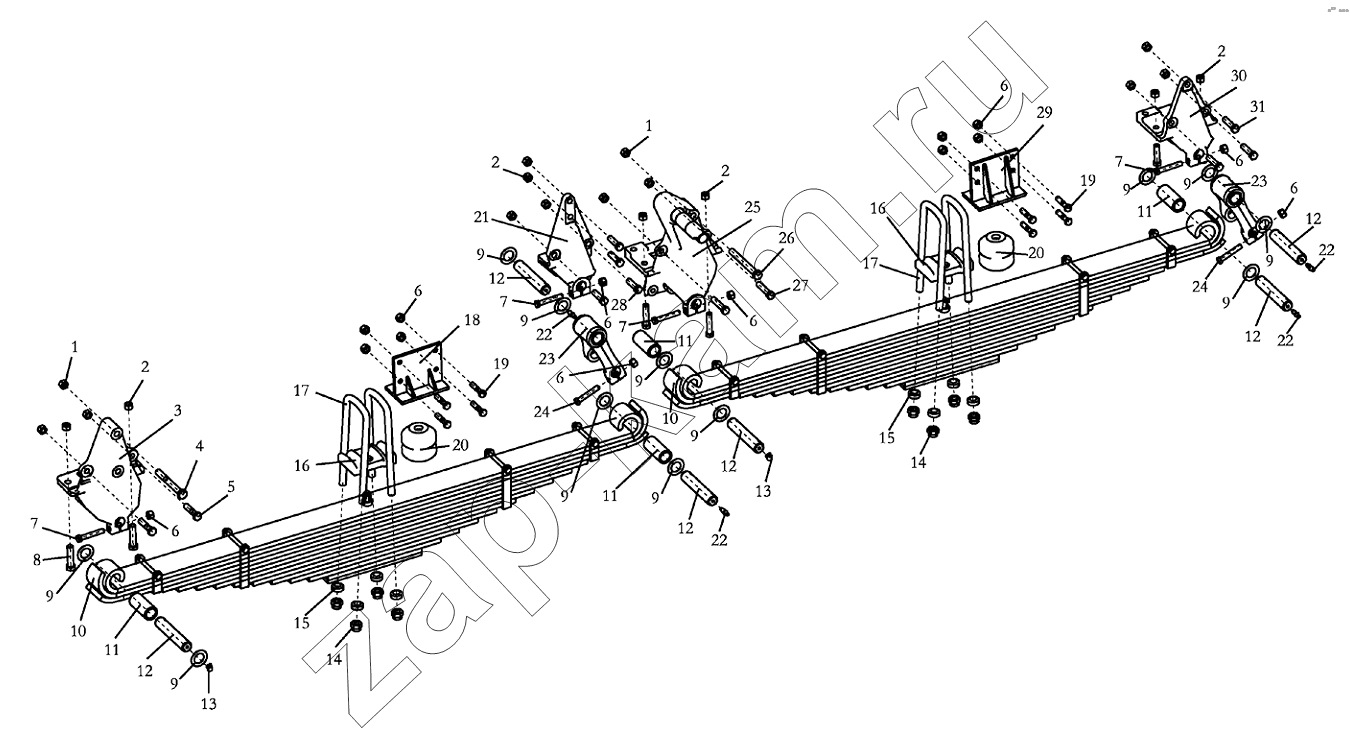

FRONT SUSPENSION (DC93319690507)
/ Shaanxi Shacman SX3316DT366
1
1
2
2
2
2
3
4
5
6
6
6
6
6
6
6
6
7
7
7
7
8
9
9
9
9
9
9
9
9
9
9
9
9
10
10
11
11
11
11
12
12
12
12
12
12
13
13
14
14
15
15
16
16
17
17
18
19
19
20
20
21
22
22
22
22
23
23
24
24
25
26
27
28
29
30
31
| Поз. | Артикул | Название детали | Кол-во | Цена | |
|---|---|---|---|---|---|
| DZ91319690500 | DZ91319690500 | Front spring right front bracket | 1; | - | |
| Q151B16115 | Q151B16115 | Hexagon head bolts - fine teeth | 1; | - | |
| DZ93319690504 | DZ93319690504 | I spring right front bracket | 1; | - | |
| DZ9100520007 | DZ9100520007 | Стремянка рессоры | 1; | - | |
| DZ9118529002 | DZ9118529002 | Рессора правая в сборе | 2; | - | |
| 1 | 190003888459 | Гайка VМ16х1,5DIN980 | 8; | - | |
| 2 | 190003888458 | Гайка | 21; | - | |
| 3 | DZ93319690503 | I spring left front bracket | 1; | - | |
| 4 | Q151B16130TF2 | Болт | 1; | 290 ₽ | |
| 5 | Q151B1460 | Hexagon head bolts - fine teeth | 5; | - | |
| 6 | 190003888457 | Гайка самоблокировочная | 28; | - | |
| 7 | Q151C1275 | Hexagon head bolts - fine teeth | 8; | - | |
| 8 | Q151B1665TF2 | Болт | 4; | - | |
| 9 | 168000520050 | Шайба | 24; | - | |
| 10 | DZ9118529001 | Рессора левая в сборе | 2; | - | |
| 11 | 199000520078 | Втулка-ушка | 8; | - | |
| 12 | 199100520065 | Палец | 11; | - | |
| 13 | 190003963127 | Масленка | 4; | - | |
| 14 | 168000520056 | Шайба | 16; | - | |
| 15 | 190003888626 | Гайка | 16; | - | |
| 16 | 188000520002 | Накладка | 4; | - | |
| 17 | 199000520086 | Front spring riding bolt | 8; | - | |
| 18 | DZ9118520172 | Front spring limit bracket assembly | 2; | - | |
| 19 | Q151C1255TF2 | Hexagon head bolts - fine teeth | 16; | - | |
| 20 | 81.96020.6013 | Hollow rubber bumper | 4; | - | |
| 21 | DZ93319690505 | I spring rear bracket | 2; | - | |
| 22 | 190003963124 | Масленка | 8; | - | |
| 23 | SZ970000026 | Front spring hanger assembly | 4; | - | |
| 24 | Q151C1270 | Болт | 4; | - | |
| 25 | DZ91319690501 | Front spring left front bracket assembly | 1; | - | |
| 26 | Q151B16140 | Hexagon head bolts - fine teeth | 1; | - | |
| 27 | Q151B1465TF2 | Болт | 8; | - | |
| 28 | Q151B1450 | Болт | 8; | - | |
| 29 | DZ9114520172 | Front spring limit bracket assembly | 2; | - | |
| 30 | DZ93319690507 | Front spring rear bracket | 2; | - | |
| 31 | Q151B1455TF2 | Болт | 10; | - |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
