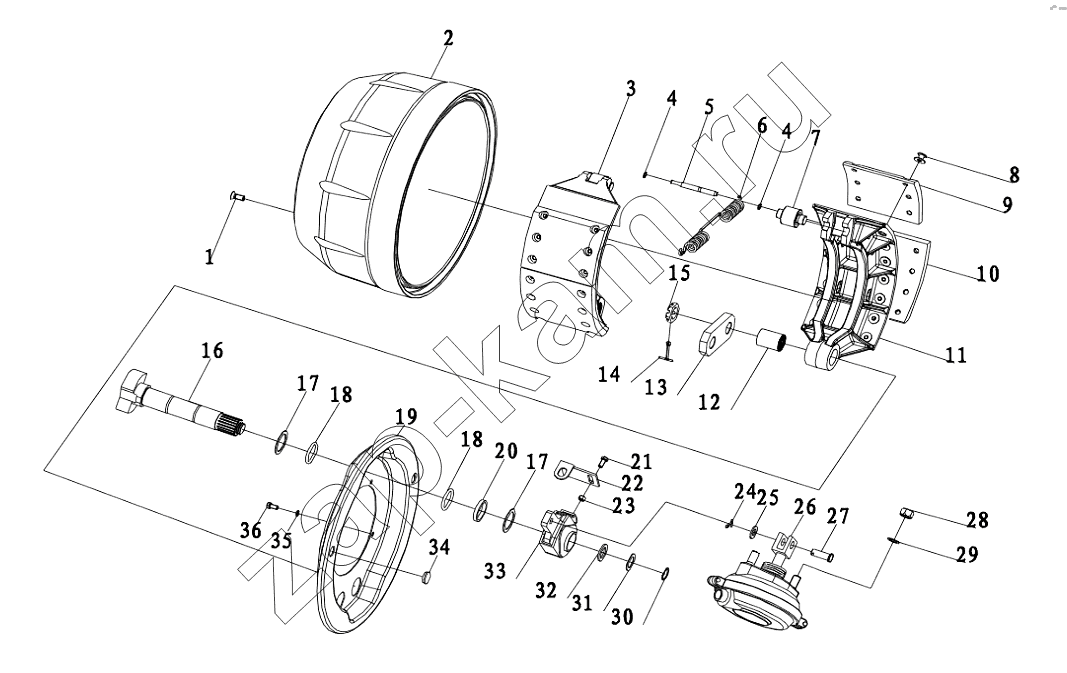

STEYR 6.5 TONS STEERING SHAFT BRAKE
/ Shaanxi Shacman SX3316DT366
1
2
3
3
4
4
5
6
7
8
9
10
11
11
12
13
14
15
16
16
17
17
18
18
19
19
20
21
22
22
23
24
25
26
26
27
28
29
30
31
31
31
31
32
33
34
35
36
| Поз. | Артикул | Название детали | Кол-во | Цена | |
|---|---|---|---|---|---|
| AZ9100440023 | AZ9100440023 | Automatic gap adjusting arm | 2; | - | |
| 1 | Q2541025 | Bolt | 4; | - | |
| 2 | 199112440001 | Brake drum | 2; | - | |
| 3 | 199000440031 | Brake prevented cap | 4; | - | |
| 3 | DZ9100440060 | Brake prevented cap | 4; | - | |
| 4 | Q43110F3 | Circlip for axle | 8; | - | |
| 5 | 188000440032 | Pin | 4; | - | |
| 5 | HD91009440003 | Return spring pin | 4; | - | |
| 6 | 188000440012 | Return spring | 2; | - | |
| 7 | 199000340027 | Holddown wheel | 4; | - | |
| 8 | 189000340068 | Hollowness clincher | 14; | - | |
| 9 | 199000440027 | Brake friction plate | 4; | - | |
| 10 | 199000440029 | Brake friction plate | 4; | - | |
| 11 | HD91009440008 | Brake prevented cap | 4; | - | |
| 11 | 199000440018 | Brake prevented cap | 4; | - | |
| 12 | DZ9100440006 | Bush | 4; | - | |
| 13 | 188000440008 | Positive plate | 2; | - | |
| 14 | Q5005045 | Cotter pin | 4; | - | |
| 15 | 190003872369 | Hex nut | 4; | - | |
| 16 | 199100440001 | Brake camshaft | 1; | - | |
| 16 | 199100440002 | Brake camshaft | 1; | - | |
| 17 | 188000440010 | Washer | 4; | - | |
| 18 | 188000340023 | O style packing ring | 4; | - | |
| 19 | 199112440006 | Brake prevented dust cap | 2; | - | |
| 19 | 188000440007 | Brake prevented dust cap | 2; | - | |
| 20 | 188000440015 | Bush | 2; | - | |
| 21 | Q150B0816 | Болт | 2; | - | |
| 22 | AZ9100349994 | Automatic gap adjusting arm bearer | 1; | - | |
| 22 | AZ9100349995 | Automatic gap adjusting arm bearer | 1; | - | |
| 23 | Q33408 | Гайка М8-8-МАN183-В4 | 2; | - | |
| 24 | Q5004022 | Шплинт | 2; | - | |
| 25 | Q40114 | Шайба | 2; | - | |
| 26 | DZ9100360315 | Diaphragm brake chamber | 1; | - | |
| 26 | DZ9100360316 | Diaphragm brake chamber | 1; | - | |
| 27 | 190003903661 | Pin axle | 2; | - | |
| 28 | Q340B16 | Nut | 4; | - | |
| 29 | Q41216 | Шайба пружинная | 4; | - | |
| 30 | Q43125 | Кольцо | 2; | - | |
| 31 | 108000320028 | Adjusting washer | ; | - | |
| 31 | 108000320029 | Adjusting washer | ; | - | |
| 31 | 108000320030 | Adjusting washer | ; | - | |
| 31 | 108000320046 | Adjusting washer | ; | - | |
| 32 | 188000340022 | Washer | 2; | - | |
| 33 | 188000340040 | Brake arm | 2; | - | |
| 34 | 188000340037 | Choke plug | 4; | - | |
| 35 | Q40308 | Шайба пружинная | 8; | 10 ₽ - 60 ₽ | |
| 36 | Q150B0816 | Болт | 8; | - |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
