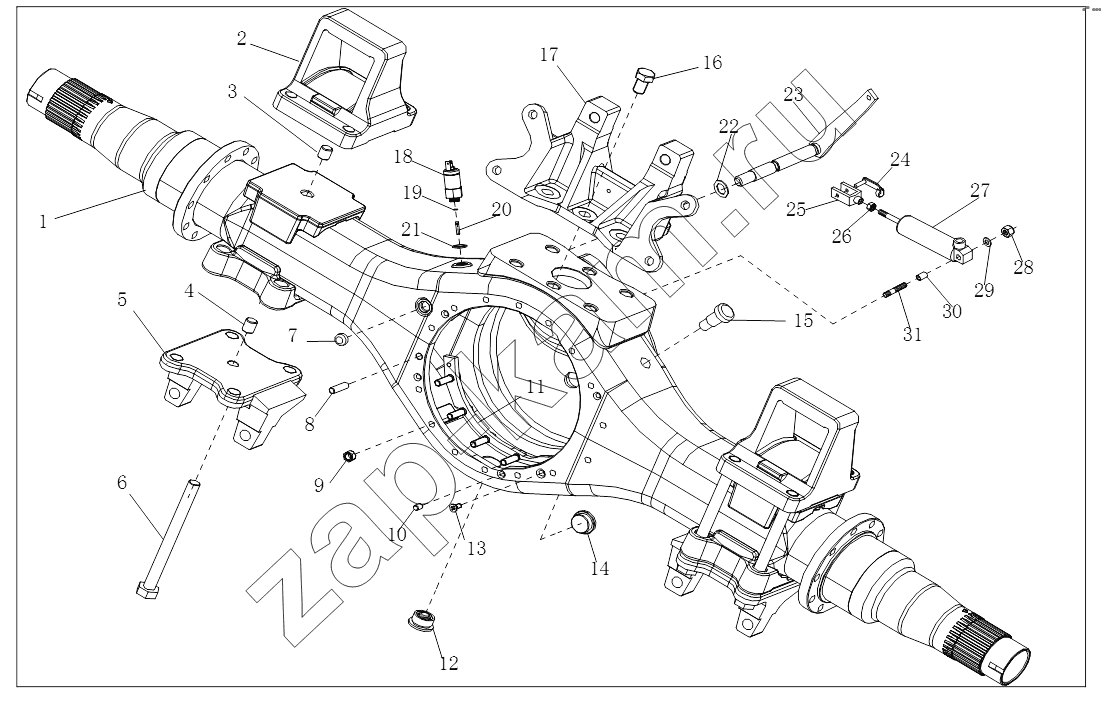

STR DOUBLE BRIDGE SHELL
/ Shaanxi Shacman SX3316DT366

zoom-in zoom-out enlarge shrink circle-right circle-left file-text2 info cart
1
2
2
2
2
2
2
2
2
3
4
5
5
6
7
8
9
10
11
11
12
13
14
15
16
16
17
18
19
20
20
20
20
20
20
21
22
23
23
24
25
26
27
28
29
30
31
Поз. Артикул Название детали Кол-во
DZ9114330995 DZ9114330995 Middle axle housing 1;
190003962021 190003962021 Hex plug screw 1;
DZ9112330995 DZ9112330995 Rear axle housing assembly 1;
DZ91129330061 DZ91129330061 Rear axle housing assembly 1;
DZ91129330062 DZ91129330062 Middle axle housing 1;
DZ9112330165 DZ9112330165 Rear axle housing assembly 1;
DZ9114330308 DZ9114330308 Middle axle housing 1;
DZ9112332065 DZ9112332065 Rear axle housing assembly 1;
1 DZ9114330208 Кожух среднего моста 1;
2 DZ9114520631 Spring bracket of f.r axle 1;
2 DZ9114520632 Spring bracket of f.r axle 1;
2 DZ9114520630 Spring bracket of f.r axle 1;
2 DZ9114520629 Spring bracket of f.r axle 1;
2 DZ9114524004 Spring bracket of f.r axle 1;
2 DZ9114524003 Spring bracket of f.r axle 1;
2 DZ9114524002 Spring bracket of f.r axle 1;
2 DZ9114524001 Spring bracket of f.r axle 1;
3 199014520256 Pin 4;
4 190003901905 Pin 4;
5 DZ9114520292 Lower torque rod of bracket 2;
5 DZ9114520293 Lower torque rod of bracket 2;
6 DZ9114520116 Hex bolt 16;
7 190003989290 Bowling plug 2;
8 190003810631 Stud 8;
9 190003888457 Гайка самоблокировочная 32;
10 190003901506 Pin 2;
11 199014330147 Bow hold-open catch assembly 2;
11 199014330146 Bow hold-open catch assembly 2;
12 DZ9112330623 Magnetic plug assembly 2;
13 190003825420 Slit bolt 8;
14 DZ9112330620 Plug screw assembly 1;
15 199000330006 Air vent assembly 2;
16 Q151B2030TF2 Hex bolt 4;
16 Q151B2040TF2 Болт 8;
17 199014340042 Chamber break 2;
18 2190-3834010 Pressure switch 2;
19 Q43705 Шайба 2;
20 DZ9112330044 Pin ;
20 DZ9112330043 Pin ;
20 DZ9112330042 Pin ;
20 DZ9112330041 Pin ;
20 199112330016 Pin ;
20 169000330008 Pin ;
21 190003098020 Packing washer 2;
22 1680M0320015 O style packing ring 2;
23 199014330125 Operation handle assembly 1;
23 199014330126 Operation handle assembly 1;
24 178000350055 Flat head lock 2;
25 190003964418 Y-type hinge 2;
26 190003870221 Hex.nut 2;
27 179100360018 Working cylinder 2;
28 190003888451 Hex nut 2;
29 190003935007 Plain washer 2;
30 161000060084 Space collar 2;
31 190003813458 Stud 2;
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
