AIR COMPRESSOR PIPELINE
/ Shaanxi Shacman SX3316DT426C

zoom-in zoom-out enlarge shrink circle-right circle-left file-text2 info cart

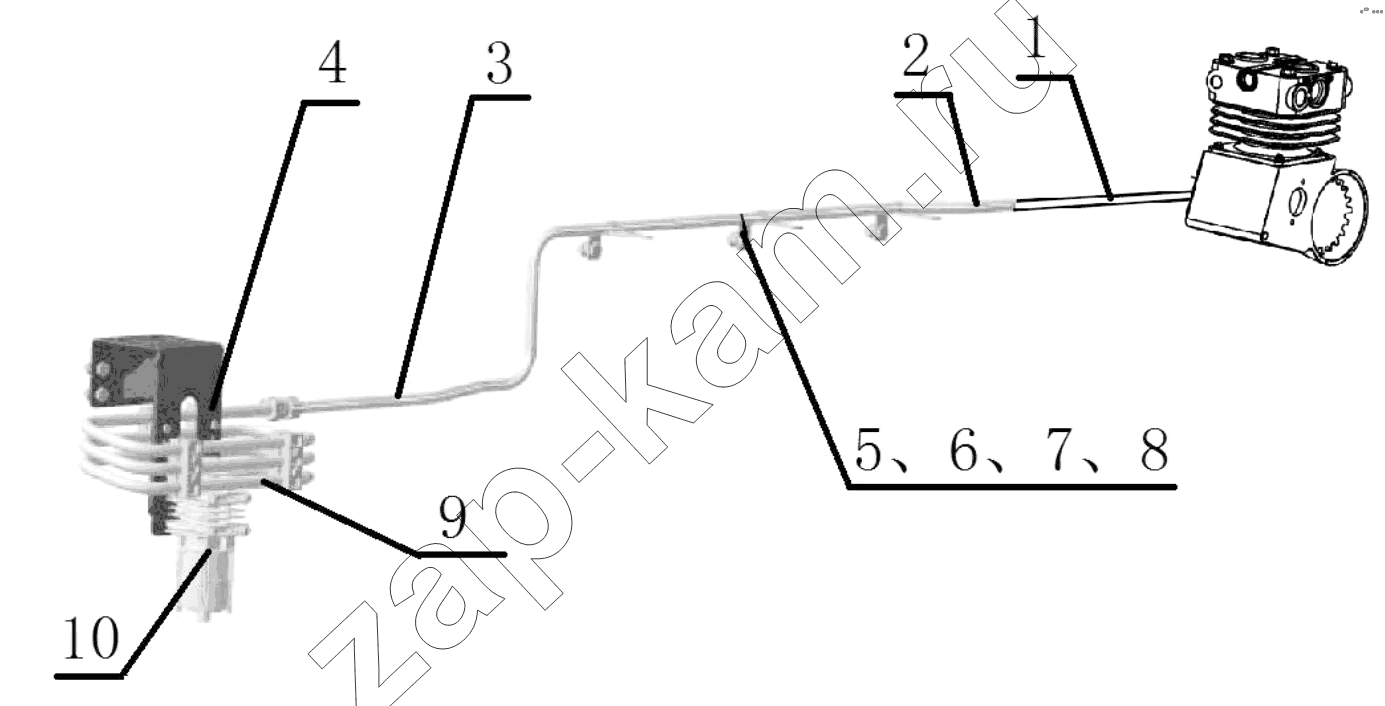

Схема/чертеж: AIR COMPRESSOR PIPELINE / Shaanxi Shacman SX3316DT426C
1
1
1
1
1
1
1
1
1
1
2
2
2
2
2
2
3
3
3
3
3
3
3
3
4
4
5
6
7
8
9
9
9
9
9
10
Поз. Артикул Название детали Кол-во Цена
1 DZ97319361019 Steel Pipe 20 Air Compressor/Hose 1; -
1 DZ97319361023 Steel Pipe 20 Air Compressor/Hose 1; -
1 DZ97319361066 Steel Pipe 20 Air Compressor/Hose 1; -
1 DZ97319361051 Steel Pipe 20 Air Compressor/Hose 1; -
1 DZ95319360062 Steel Pipe 20 Air Compressor/Hose 1; -
1 SZ903000820 Steel Pipe 20 Air Compressor/Hose 1; -
1 DZ97319361051 Steel Pipe 20 Air Compressor/Hose 1; -
1 DZ96189360149 Steel Pipe 20 Air Compressor/Hose 1; -
1 DZ97319361048 Steel Pipe 20 Air Compressor/Hose 1; -
1 DZ97319361015 Steel Pipe 20 Air Compressor/Hose 1; -
2 DZ93189360007 Шланг 1; -
2 DZ9100360442 Шланг 1; -
2 DZ93319360021 Stainless steel metal hose 1; -
2 DZ93319360020 Stainless steel metal hose 1; -
2 DZ93319360019 Stainless steel metal hose 1; -
2 DZ93319360018 Stainless steel metal hose 1; -
3 DZ97319361075 Tube 20 Straight/Straight 1; -
3 DZ97319361021 Tube 20 hose/straight 1; -
3 DZ97319361060 Tube 20 Straight/Straight 1; -
3 DZ97319361017 Tube 20 hose/straight 1; -
3 DZ97319361126 Tube 20 Straight/Straight 1; -
3 DZ97319361056 Tube 20 Straight/Straight 1; -
3 DZ97319361054 Tube 20 hose/straight 1; -
3 DZ97319361025 Tube 20 hose/straight 1; -
4 DZ97319360040 Oil-water separator bracket assembly 1; -
4 DZ97259360012 Oil-water separator bracket 1; -
5 199000360315 Bracket 3; -
6 Q68620 Pipe clamp 3; -
7 Q151B1430 Q151B1430 3; -
8 190003888458 Гайка 3; -
9 DZ97319360045 Tube 20 Straight-through/oil-water separator 1; -
9 DZ97259360013 Tube 20 hose/water separator 1; -
9 DZ97319361017 Tube 20 Straight-through/oil-water separator 1; -
9 SZ903000759 Pipe 1; -
9 SZ903000749 Tube 20 hose/water separator 1; -
10 DZ97259360017 Water separator 1; -
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
