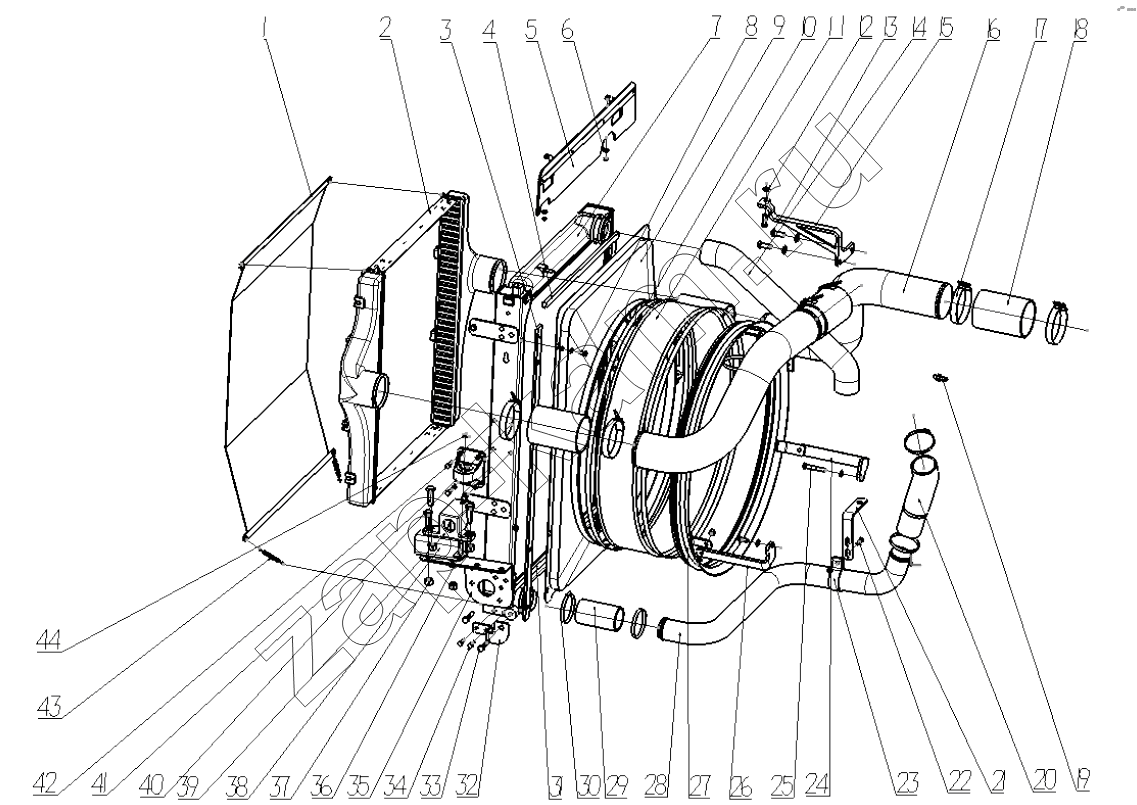

COOLER SYSTEM (NEW M3000/ISM)
/ Shaanxi Shacman SX3316HT406C
Q33210T2F3
Q40110
Q33210T2F3
Q33210T2F3
Q40208
Q33208T2F3
Q40110
DZ96259534047
DZ96259538034
Q40308
190003888620
DZ96259538020
Q40214
Q33214
Q40308
1
2
2
3
4
4
5
6
6
7
7
8
8
9
10
11
12
13
14
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
| Поз. | Артикул | Название детали | Кол-во | Цена | |
|---|---|---|---|---|---|
| Q33210T2F3 | Q33210T2F3 | Hex nut | 4; | - | |
| Q40110 | Q40110 | Шайба | 3; | - | |
| Q33210T2F3 | Q33210T2F3 | Hex nut | 3; | - | |
| Q33210T2F3 | Q33210T2F3 | Hex nut | 2; | - | |
| Q40208 | Q40208 | Шайба | ; | - | |
| Q33208T2F3 | Q33208T2F3 | Hex nut | ; | - | |
| Q40110 | Q40110 | Шайба | 1; | - | |
| DZ96259534047 | DZ96259534047 | Water outlet pipe | 1; | - | |
| DZ96259538034 | DZ96259538034 | Right connect bracket | 1; | - | |
| Q40308 | Q40308 | Шайба пружинная | 4; | 10 ₽ - 60 ₽ | |
| 190003888620 | 190003888620 | Self-locking nuts | 4; | - | |
| DZ96259538020 | DZ96259538020 | Rihgt support | 1; | - | |
| Q40214 | Q40214 | Large gasket | 4; | - | |
| Q33214 | Q33214 | Гайка | 4; | - | |
| Q40308 | Q40308 | Шайба пружинная | 8; | 10 ₽ - 60 ₽ | |
| 1 | DZ96259537003 | Dustproof net | 1; | - | |
| 2 | DZ96259531030 | CAC | 1; | - | |
| 2 | DZ96259531021 | CAC | 1; | - | |
| 3 | DZ96259537015 | Hermetical pastern | 2; | - | |
| 4 | DZ96259536023 | Hermetical pastern | 2; | - | |
| 4 | DZ96259537016 | Hermetical pastern | 1; | - | |
| 5 | DZ96259536026 | Preventing circumfluence assembly | 1; | - | |
| 6 | Q340B06 | Nut | 2; | - | |
| 6 | Q40206 | Шайба | 2; | - | |
| 7 | DZ96259532030 | Radiator | 1; | - | |
| 7 | DZ96259532023 | Radiator | 1; | - | |
| 8 | Q150B0816 | Болт | 8; | - | |
| 8 | Q40308 | Шайба пружинная | 8; | 10 ₽ - 60 ₽ | |
| 9 | DZ96259536047 | Air duct assembly | 1; | - | |
| 10 | DZ91259538602 | Хомут | 2; | - | |
| 11 | DZ9112538037 | Air duct assembly | 1; | - | |
| 12 | Q150B1030T1F3 | Hex screw | 3; | - | |
| 13 | Q150B1230TF2 | Болт | 2; | - | |
| 14 | DZ96259535058 | Outlet rubber hose | 1; | - | |
| 14 | DZ93259535815 | Outlet rubber hose | 1; | - | |
| 15 | DZ95259538899 | UP bracket | 1; | - | |
| 16 | DZ96259534049 | CAC outlet pipe | 1; | - | |
| 17 | DZ95259533115 | Clip | 8; | - | |
| 18 | DZ93259535308 | Rubber hose | 4; | - | |
| 19 | 2300-1303016 | connect | 1; | - | |
| 20 | DZ93259535806 | Rubber hose | 1; | - | |
| 21 | DZ93259538035 | Bracket | 1; | - | |
| 22 | Q150B0825T1F3 | Hex bolt | ; | - | |
| 23 | DZ93259538605 | Water pipe clip | 1; | - | |
| 24 | DZ95259538909 | Bracket | 1; | - | |
| 25 | Q150B1060 | Hex screw | 1; | - | |
| 26 | DZ95259538944 | Left bracket | 1; | - | |
| 27 | DZ96259536045 | Wind retaining ring | 1; | - | |
| 28 | DZ96259534034 | Water outlet pipe | 1; | - | |
| 29 | DZ93259535324 | Rubber hose | 1; | - | |
| 30 | Q67683 | Хомут | 1; | - | |
| 31 | DZ96259537017 | Hermetical pastern | 1; | - | |
| 32 | DZ96259538033 | Left connect bracket | 1; | - | |
| 33 | Q150B1050 | Hex.screw | 4; | - | |
| 34 | Q150B0816 | Болт | 4; | - | |
| 35 | DZ95259538072 | Support | 2; | - | |
| 36 | DZ9112538040 | Опора в сборе | 2; | - | |
| 37 | Q151B14100 | Hex screw | 4; | - | |
| 38 | DZ96259538057 | Bracket | 2; | - | |
| 39 | DZ96259538019 | Left support | 1; | - | |
| 40 | 81.06225.6008 | Держатель радиатора в сборе | 2; | - | |
| 41 | Q150B1435 | Болт | 4; | - | |
| 42 | Q150B0816 | Болт | 8; | - | |
| 43 | DZ95259537001 | Spring | 2; | - | |
| 44 | 06.11240.0411 | Гайка | 2; | - |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
