DC14251110052 FRONT COVER
/ Shaanxi Shacman SX331853386 (X5000)

zoom-in zoom-out enlarge shrink circle-right circle-left file-text2 info cart

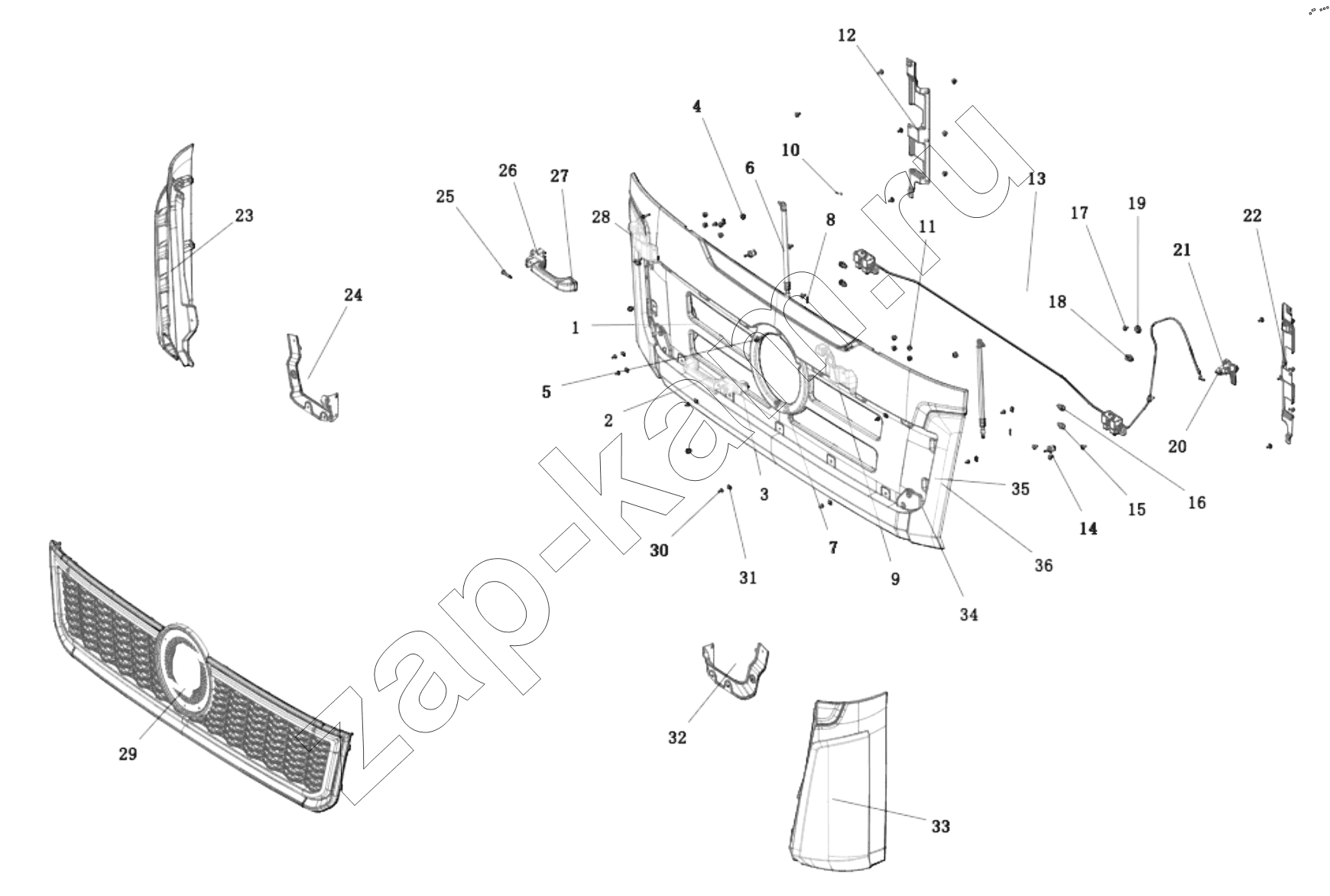

Схема/чертеж: DC14251110052 FRONT COVER / Shaanxi Shacman SX331853386 (X5000)
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
Поз. Артикул Название детали Кол-во Цена
1 DZ14251110534 Right lock ring mounting plate 1; -
2 DZ14251110043 Front cover left handle assembly 1; -
3 DZ14251110047 Left front handrail shield 1; -
4 Q33008T2F60 Hexagon nut 2; -
5 Q230B0630F60 Self tapping screw 4; -
6 DZ14251111040 Gas spring assembly/x5000 2; -
7 DZ14251110540 Install the buckle 3; -
8 Q5002020 Cotter pin 2; -
9 DZ14251110543 Front lid hinge assembly 1; -
10 Q140B0820T1F60L Hex bolt 2; -
11 Q32208 Nut 8; -
12 DZ14251110528 Right spoiler corner plate mounting plate 1; -
13 DZ14251110531 Mask lock seat and pull rod assembly 1; -
14 DZ14251110030 Buffer assy 2; -
15 Q140B1025T1F31 Hexagonal head bolt and flat washer assembly 4; -
16 Q340B10T2F60 Type 1 hex nut 4; -
17 SXQ230B0616F60L Cross recessed pan head screw and plain washer assembly 20; -
18 81.97470.0073 Plastic fastening tape 1; -
19 DZ13241110076 Cable sheath 1; -
20 Q230B0625F60 Cross recessed pan head screw and plain washer assembly 2; -
21 DZ14251110075 Unlock hand shank 1; -
22 DZ14251110527 Left spoiler corner plate mounting plate 1; -
23 DZ14251110530 Right spoiler angle plate assembly/19 models 1; -
24 DZ14251110526 Front hood lock right mounting bracket assembly 1; -
25 DZ14251110045 Self tapping screw 2; -
26 DZ14251110055 Right front handrail shield 1; -
27 DZ14251110052 Front cover right handle assembly 1; -
28 DZ14251110544 Right hinge assembly 1; -
29 DZ14251110512 Mask grille assembly/19 models 1; -
30 Q221B4816F60 Oval-head self-tapping screw 12; -
31 DZ14251110022 Reed nut 12; -
32 DZ14251110525 Front hood lock left mounting bracket assembly 1; -
33 DZ14251110520 Left spoiler angle plate assembly/19 models 1; -
34 Q2540616F60 Cross recessed countersunk head screws 6; -
35 DZ14251110570 Front cover body sub assembly/19 models/without insect net 1; -
36 DZ14251110533 Left lock ring mounting plate 1; -
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
