DC14251160073 INSTRUMENT PANEL
/ Shaanxi Shacman SX331853386 (X5000)

zoom-in zoom-out enlarge shrink circle-right circle-left file-text2 info cart

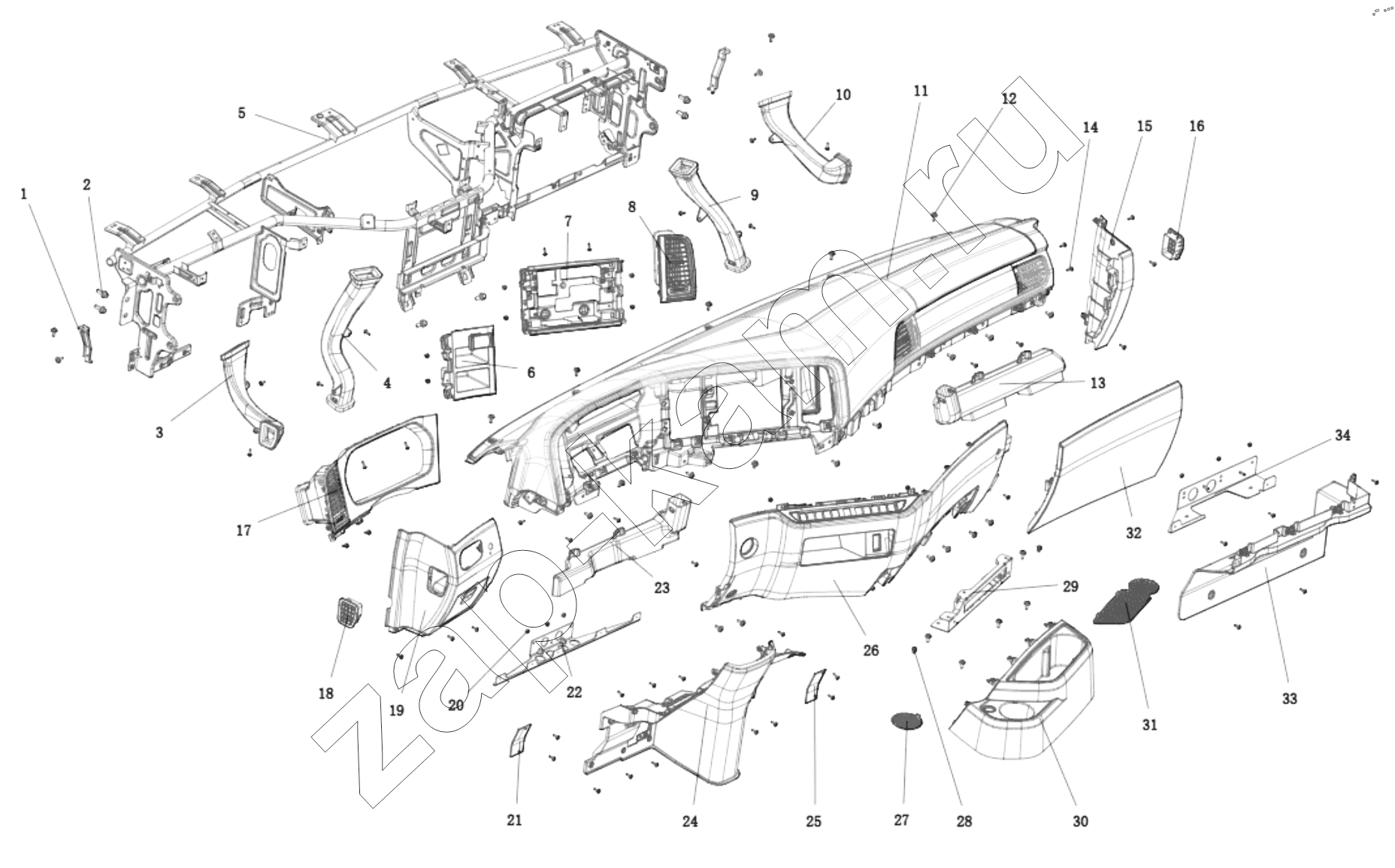

Схема/чертеж: DC14251160073 INSTRUMENT PANEL / Shaanxi Shacman SX331853386 (X5000)
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
Поз. Артикул Название детали Кол-во Цена
1 DZ14251164231 Install the upper bracket 2; -
2 Q1841025T1F31 Hexagon flange bolt 6; -
3 DZ14251164023 Left defrosting duct 1; -
4 DZ14251164025 On the left foot blowing duct 1; -
5 DZ14251164230 Pipe beam assembly 1; -
6 DZ14251164055 Small storage box 1; -
7 DZ14251164059 Intermediate panel body/cassette player 1; -
8 DZ14251164080 Driver's right air vent assembly 1; -
9 DZ14251164026 On the right foot blowing duct 1; -
10 DZ14251164024 Right defrosting duct 1; -
11 DZ14251164010 Instrument panel assembly 1; -
12 SXQ230B0620F31L Cross recessed pan head screw and plain washer assembly 29; -
13 DZ14251164028 Under the right foot blowing duct 1; -
14 Q221B4219F60 Self tapping screw 55; -
15 DZ14251164076 Right end cover body/gray 1; -
16 DZ14251164077 Right defrost air outlet/gray 1; -
17 DZ14251164040 Combination instrument cover assembly 1; -
18 DZ14251164072 Left defrost air outlet/gray 1; -
19 DZ14251164167 Left knee guard assembly/glonass/gray 1; -
20 Q340B06F60 Hexagon nut 6; -
21 DZ14251164172 Clutch pedal cover 1; -
22 DZ14251164124 Left knee guard bracket 1; -
23 DZ14251164027 Under the left foot blowing duct 1; -
24 DZ14251164170 Left lower guard body 1; -
25 DZ14251164173 Brake pedal cover 1; -
26 DZ14251164166 Instrument panel lower body assembly/glonass/gray 1; -
27 DZ14251164224 Cup holder rubber pad 1; -
28 06.13169.0012 Заклепка 2; -
29 DZ14251164222 Auxiliary instrument panel mounting bracket 1; -
30 DZ14251164078 Auxiliary instrument panel body/gray 1; -
31 DZ14251164223 Auxiliary instrument panel rubber pad 1; -
32 DZ14251164074 Ecu access cover assembly/gray 1; -
33 DZ14251164075 Right lower guard body/gray 1; -
34 DZ14251160410 Right instrument panel lower bracket assembly 1; -
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
