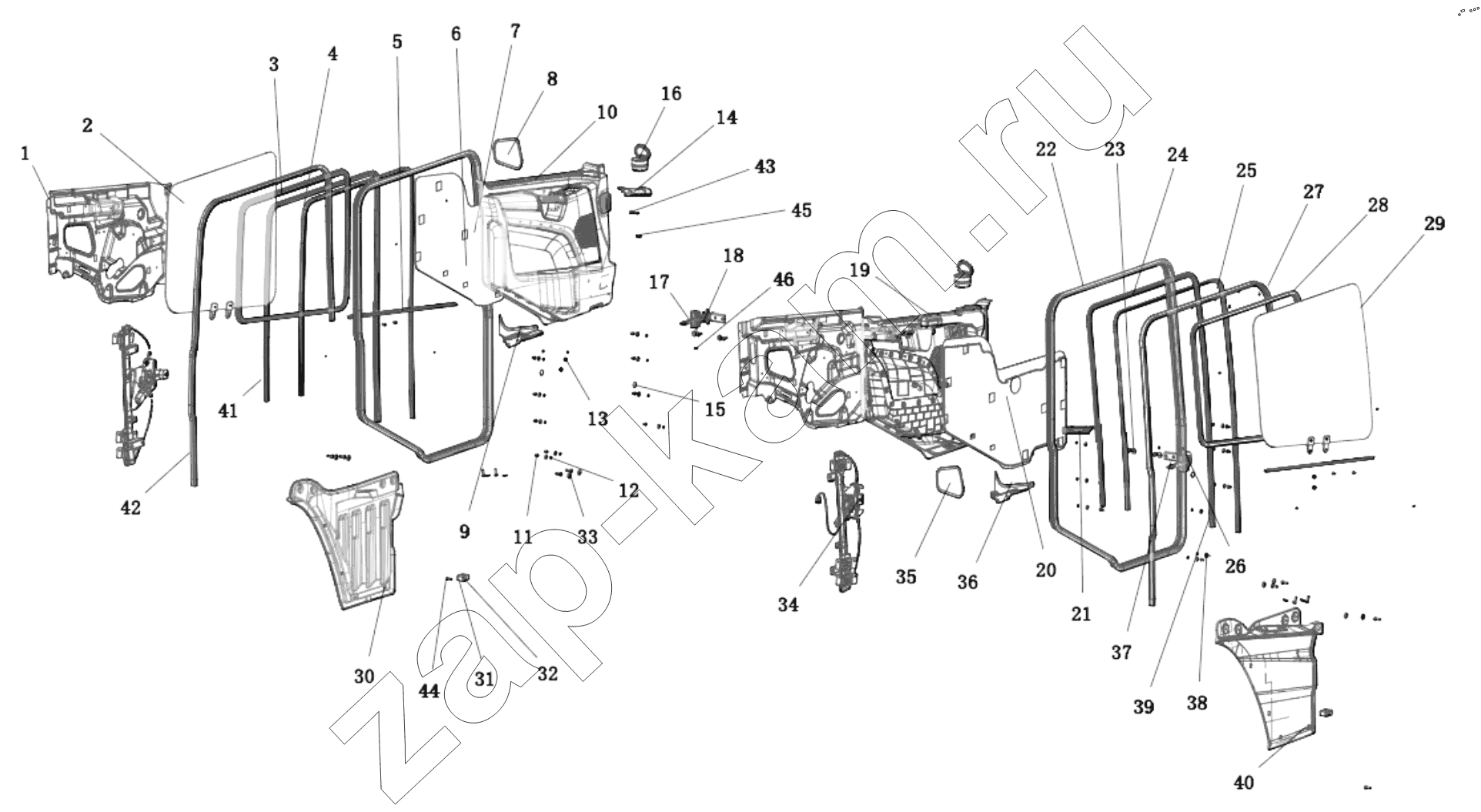

DC14251330064 DOOR ACCESSORIES
/ Shaanxi Shacman SX331853386 (X5000)
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
| Поз. | Артикул | Название детали | Кол-во | Цена | |
|---|---|---|---|---|---|
| 1 | DZ14251330261 | Left door regulator and mounting plate assembly | 1; | - | |
| 2 | DZ14251330009 | Left door class assembly | 1; | - | |
| 3 | DZ14251330123 | Left door out cut | 1; | - | |
| 4 | DZ14251330019 | Left door lead rail | 1; | - | |
| 5 | DZ14251330220 | Door interior water cut/19 models | 2; | - | |
| 6 | Q2713513 | Grooved oval head screw | 18; | - | |
| 7 | DZ14251330059 | Left door trap | 1; | - | |
| 8 | DZ14251330107 | Left Door flashing 3 | 1; | - | |
| 9 | DZ14251330105 | Left Door flashing 2 | 1; | - | |
| 10 | DZ14251334034 | Left door inner guard assembly/gray | 1; | - | |
| 11 | Q2140612 | Гайка | 8; | - | |
| 12 | Q41206 | Outer serrated lock washer | 18; | - | |
| 13 | Q33006 | Nut | 4; | - | |
| 14 | DZ14251334015 | Left door handle cover | 1; | - | |
| 15 | DZ14251970023 | PVC Stem | 4; | - | |
| 16 | DZ14251160326 | Ashtray | 2; | - | |
| 17 | Q150B0820T1F3 | Hex head bolts | 4; | - | |
| 18 | DZ14251330120 | Left door limit assembly | 1; | - | |
| 19 | DZ14251334035 | Right door inner guard assembly/gray | 1; | - | |
| 20 | DZ14251330060 | Right door trap | 1; | - | |
| 21 | DZ14251334025 | Right door handle cover | 1; | - | |
| 22 | DZ14251330245 | Door frame sealing strip | 2; | - | |
| 23 | Q402B08F60 | Big Washer | 16; | - | |
| 24 | DZ14251330028 | Right door class mud tank | 1; | - | |
| 25 | DZ14251330020 | Right door lead rail | 1; | - | |
| 26 | Q401B06F60 | Plane Washer | 4; | - | |
| 27 | DZ14251330234 | Right door second sealing strip assembly | 1; | - | |
| 28 | DZ14251330124 | Right door out cut | 1; | - | |
| 29 | DZ14251330010 | Right door class assembly | 1; | - | |
| 30 | DZ14251330151 | Left door deck board assembly | 1; | - | |
| 31 | Q401B08 | Washer | 2; | - | |
| 32 | DZ14251330157 | Door Deck Board Cushion | 2; | - | |
| 33 | Q2140825F60 | Cross recess head screw | 12; | - | |
| 34 | DZ14251330262 | Right elevator and mounting plate assembly /19 models | 1; | - | |
| 35 | DZ14251330108 | Right Door flashing 3 | 1; | - | |
| 36 | DZ14251330106 | Right Door flashing 2 | 1; | - | |
| 37 | DZ14251330130 | Right door limit assembly | 1; | - | |
| 38 | Q402B06 | Big Washer | 22; | - | |
| 39 | DZ14251330043 | Cross recess head screw | 14; | - | |
| 40 | DZ14251330152 | Right door deck board assembly | 1; | - | |
| 41 | DZ14251330027 | Left door class mud tank | 1; | - | |
| 42 | DZ14251330233 | Left door second sealing strip assembly | 1; | - | |
| 43 | Q2140642F31 | Cross recessed pan head screws | 4; | - | |
| 44 | Q2140625F60 | Cross recessed pan head screws | 2; | - | |
| 45 | Q2140616 | Болт | 4; | - | |
| 46 | Q41208 | Шайба | 4; | - |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
