DC14251611116 INTERIOR
/ Shaanxi Shacman SX331853386 (X5000)

zoom-in zoom-out enlarge shrink circle-right circle-left file-text2 info cart

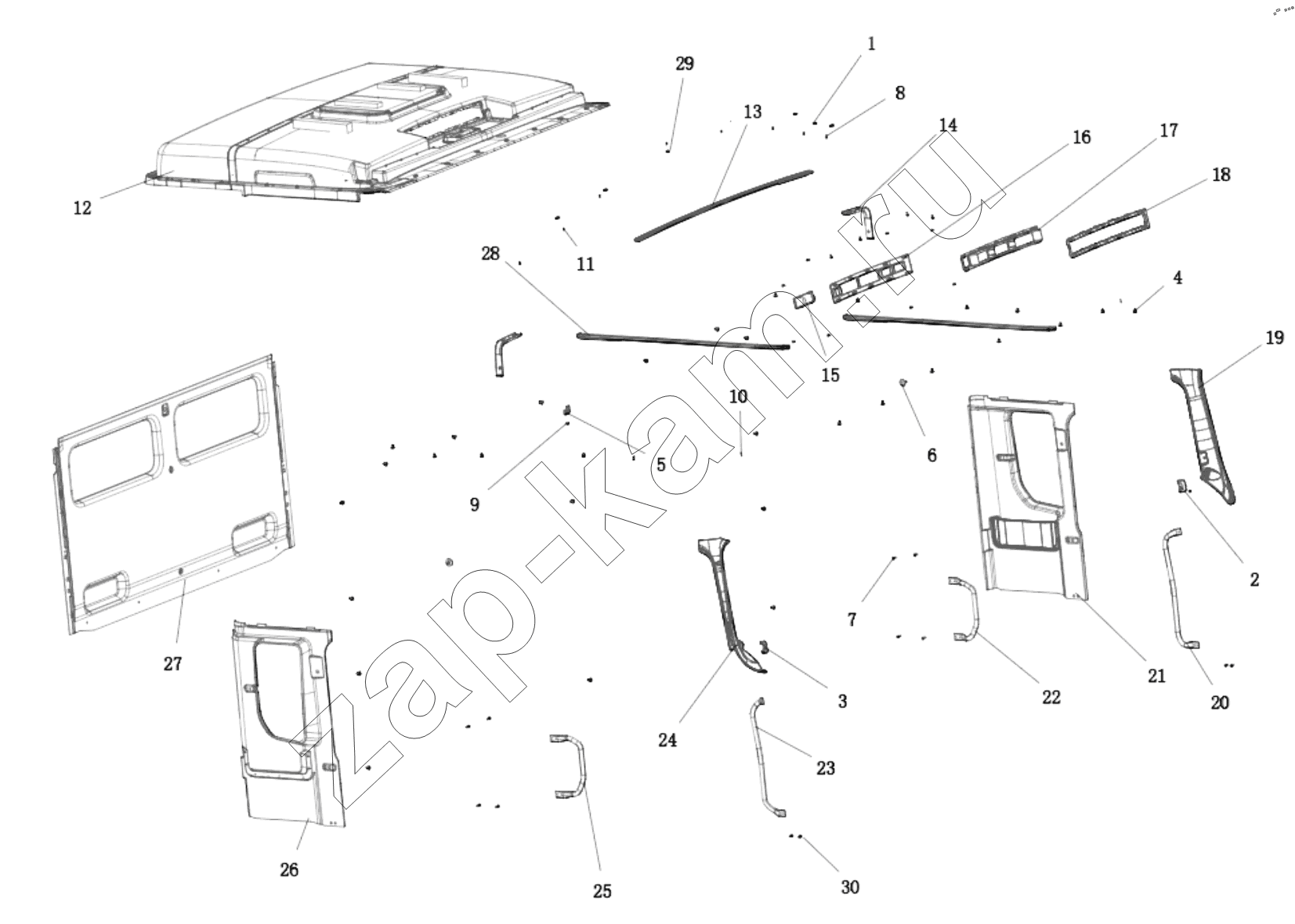

Схема/чертеж: DC14251611116 INTERIOR / Shaanxi Shacman SX331853386 (X5000)
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
Поз. Артикул Название детали Кол-во Цена
2 DZ14251612003 Left armrest cover 1; -
3 DZ14251612004 Right armrest cover 1; -
4 DZ14251614111 Plastic buckle 33; -
5 DZ14251614114 Coat hook 1; -
6 DZ14251614115 Plug 2; -
7 Q1840625T1F31 Hexagon flange bolt 8; -
8 Q221B4219F60 Self tapping screw 10; -
9 Q230B0616F60 Self tapping screw 5; -
10 Q2713525 Cross recessed pan head tapping screws 2; -
11 Q2714219F60 Cross recessed pan head tapping screws 6; -
12 DZ14251615035 Miscellaneous box top cover lining assembly 1; -
13 DZ14251614160 Middle window rail assembly 1; -
14 DZ14251614161 Flat top middle curtain rail 2; -
15 DZ14251614162 Driving recorder cover 1; -
16 DZ14251610626 Miscellaneous box driving recorder panel 1; -
17 DZ14251610627 Miscellaneous box driving recorder back frame 1; -
18 DZ14251610519 Installing the sheet metal frame 1; -
19 DZ14251612001 Left a-pillar guard 1; -
20 DZ14251610163 Left front armrest 1; -
21 DZ14251614130 Left side wall lining assembly 1; -
22 DZ14251610165 Left rear armrest 1; -
23 DZ14251610164 Right front armrest 1; -
24 DZ14251612002 Right a-pillar guard 1; -
25 DZ14251610166 Right rear armrest 1; -
26 DZ14251614140 Right side wall lining assembly 1; -
27 DZ14251614129 Rear wall lining assembly 1; -
28 DZ14251614150 Side window rail assembly 2; -
29 06.13189.0099 Пластина-фиксатор SТ4,8-2-МАN183-В1 8; -
30 Q230B0620F60 Self tapping screw 6; -
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
