  5. DC14251845522 AIR CONDITIONING CHASSIS

DC14251845522 AIR CONDITIONING CHASSIS
/ Shaanxi Shacman SX331853386 (X5000)

zoom-in zoom-out enlarge shrink circle-right circle-left file-text2 info cart

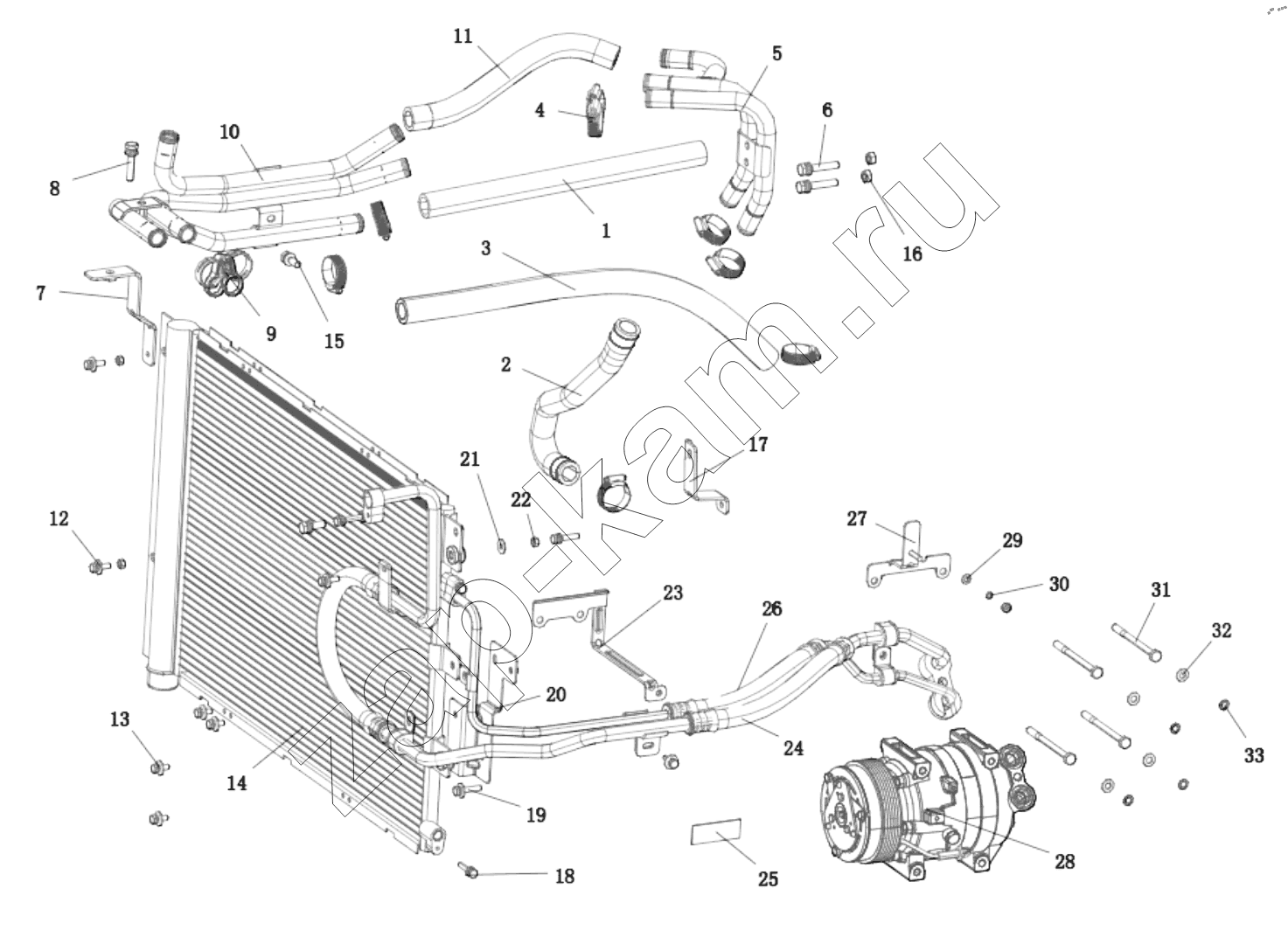

Схема/чертеж: DC14251845522 AIR CONDITIONING CHASSIS / Shaanxi Shacman SX331853386 (X5000)
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
26
27
28
29
30
31
32
33
Поз. Артикул Название детали Кол-во Цена
1 199100360226 Rubber hose 1; -
2 DZ14251842623 Warm air hose for water intake 1; -
3 115200840058 Rubber hose 4; -
4 190003989301 Clip 8; -
5 DZ14251842204 Chassis heating hard pipe 1; -
6 Q146B0845T1F60 Hexagon head bolt, spring washer and plain washer 1; -
7 DZ14251845102 Heater bracket 1; -
8 Q146B0840T1F60 Hexagon head bolt, spring washer and plain washer 1; -
9 DZ13241848911 Elastic clamp 1; -
10 DZ14251845104 Heater chassis aluminum tube 1; -
11 179000530018 Rubber hose 1; -
12 SXQ146B0620T1F60L Hexagon head bolt, spring washer and plain washer 2; -
13 SXQ146B0616T1F60L Hexagon head bolt, spring washer and plain washer 1; -
14 DZ13241824370 Subcooled condenser assembly 1; -
15 Q146B0825T1F60 Hex head bolts, spring washers and flat washers assemblies 7; -
16 Q340B08T2F60 Type 1 hex nut 6; -
17 DZ13241845122 Pipeline bracket 1; -
18 Q146B0630T1F60 Hexagon head bolt, spring washer and plain washer 1; -
19 SXQ146B0630T1F60L Hexagon head bolt, spring washer and plain washer 1; -
20 DZ14251845008 Pipeline bracket 5; -
21 Q402B06F60 Big Washer 1; -
22 Q340B06F60 Hexagon nut 3; -
23 DZ14251848901 Pipe fixing bracket 1; -
24 DZ14251848642 Evaporator-compressor connection tube 1; -
26 DZ14251848308 Compressor-condenser connection tube 1; -
27 DZ14251845034 Pipe support 1; -
28 DZ15221840303 Compressor assembly 4; -
29 Q401B06F60 Plane Washer 1; -
30 Q40306F60 Washer 2; -
31 Q150B08100 Hexagonal head bolt 2; -
32 Q401B08F60 Flat washer 1; -
33 Q40308F60 Spring washer 1; -
