SECOND SHAFT ASSEMBLY
/ Shaanxi Shacman SX331853386 (X5000)

zoom-in zoom-out enlarge shrink circle-right circle-left file-text2 info cart

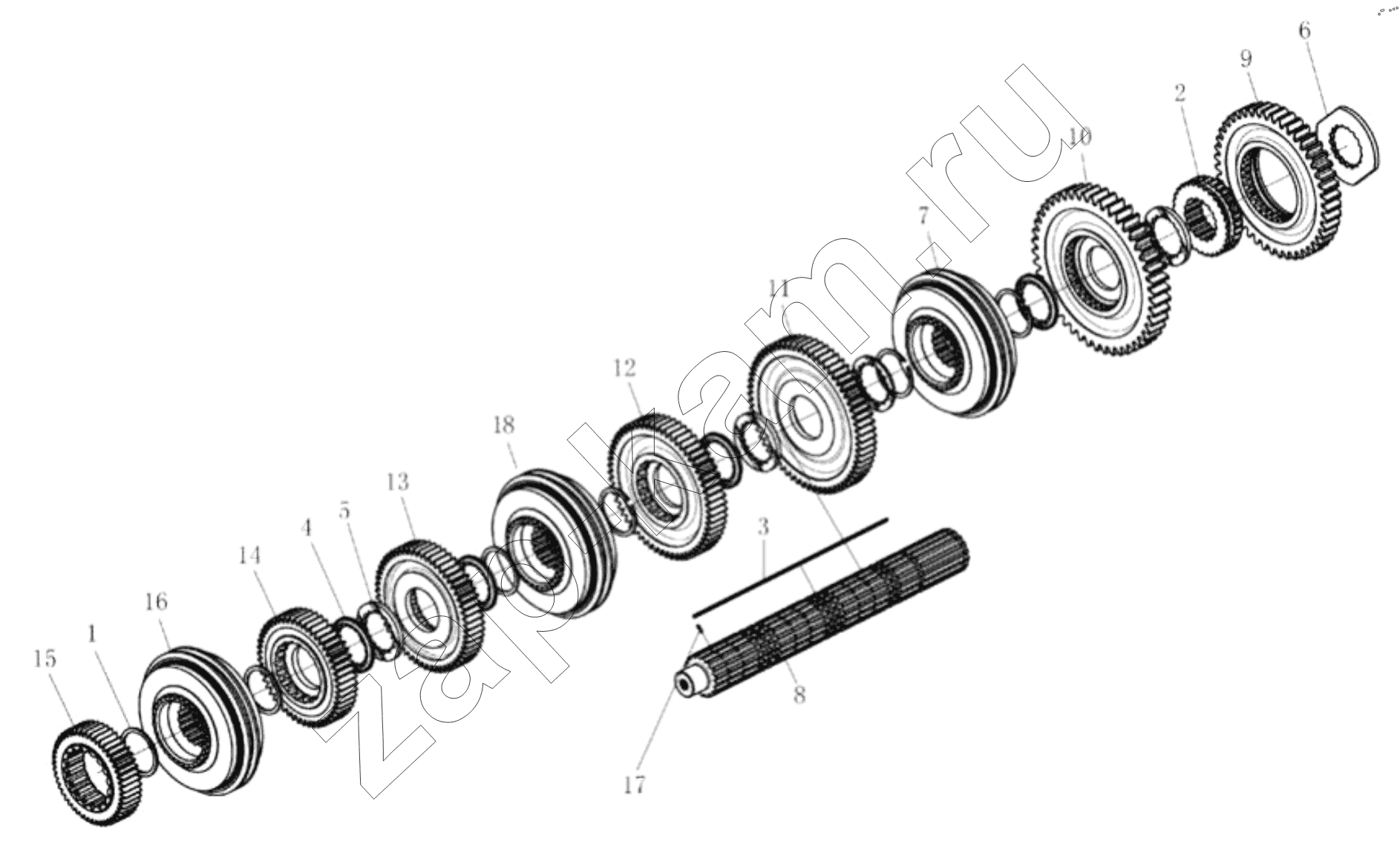

Схема/чертеж: SECOND SHAFT ASSEMBLY / Shaanxi Shacman SX331853386 (X5000)
1
2
3
5
6
7
8
9
10
11
12
13
14
15
16
17
18
Поз. Артикул Название детали Кол-во Цена
12JSDX220TA-1701100-1 12JSDX220TA-1701100-1 Second shaft assembly 1; -
1 9JS200T- 1701123 Stop ring 6; -
2 12JSDX240T- 1701108 Sliding sleeve 1; -
3 12JSDX220T- 1701121B Second shaft hexagonal key 1; -
5 9JS200T- 1701122 Spindle gear gasket 8; -
6 12JSDX240T- 1701125 Second shaft reverse gear gasket 1; -
7 12JSDX240T- 1701170- 1 First and second gear synchronizer assembly 1; -
8 12JSDX240T- 1701105 Second shaft 1; -
9 12JSDX240T- 1701110 Second shaft reverse gear 1; -
10 12JSDX240T- 1701111- 1 Second shaft first gear 1; -
11 12JSDX240T- 1701112-2 Second shaft second gear 1; -
12 12JSDX240TA- 1701113 Second shaft third gear 1; -
13 12JSDX240TA- 1701114 Second shaft fourth gear 1; -
14 12JSDX240TA- 1701115 Second shaft fifth gear 1; -
15 12JSDX240TA- 1701116 First shaft gear 1; -
16 12JSDX240T- 1701190-2 5th and 6th synchronizer assembly 1; -
17 Q5280310 Стопор 1; -
18 12JSDX240T- 1701180- 1 Synchronizer assembly 1; -
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
