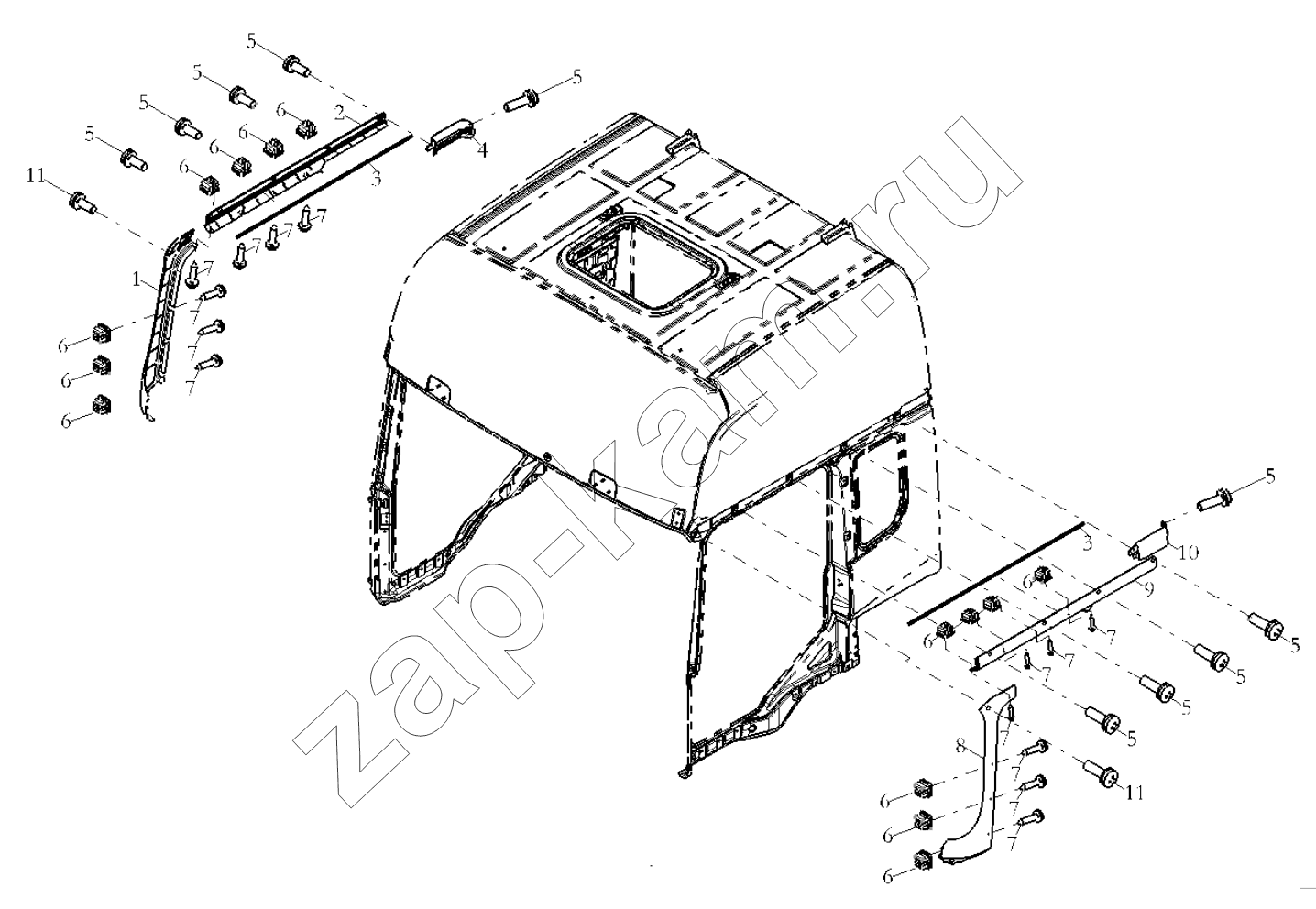

DECORATIVE ASSEMBLY
/ Shaanxi Shacman SX331863366 (X3000)

zoom-in zoom-out enlarge shrink circle-right circle-left file-text2 info cart
1
1
2
2
2
3
3
3
3
4
4
5
5
5
5
5
5
5
5
5
5
6
6
6
6
6
6
6
6
6
6
6
6
7
7
7
7
7
7
7
7
7
7
7
7
7
7
8
8
9
9
9
10
10
11
11
11
11
11
11
Поз. Артикул Название детали Кол-во
1 DZ14251110552 Decorative panel right A column 1;
1 DZ14251110562 Decorative panel right A column 1;
2 DZ14251970007 Front decorative board on the right side 1;
2 DZ14251971012 Decorative board on the right side/j 1;
2 DZ14251972012 Decorative board on the right side/d 1;
3 DZ14251970047 Sealing strip for side surrounding water tank 2;
3 DZ14251970045 Sealing strip for side surrounding water tank 2;
4 DZ14251970016 Decorative panels on the right side and rear 1;
4 DZ14251979994 Decorative panels on the right side and rear 1;
5 SXQ230B0620F60L Screw 10;
6 DZ14251970009 Plastic clip 14;
7 Q221B4216F60 Screw 14;
8 DZ14251110551 Decorative panel left A column 1;
8 DZ14251110561 Decorative panel left A column 1;
9 DZ14251972011 Decorative panel left front 1;
9 DZ14251971011 Decorative panel left front 1;
9 DZ14251970006 Front decorative board on the left side 1;
10 DZ14251970015 Decorative panel left rear 1;
10 DZ14251979998 Decorative panel left rear 1;
11 Q2140616 Болт 2;
11 Q40106 Шайба 8х16х2-SТ-А3С 2;
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
