5. DEFENSIVE DRILL PROTECTION FRAME

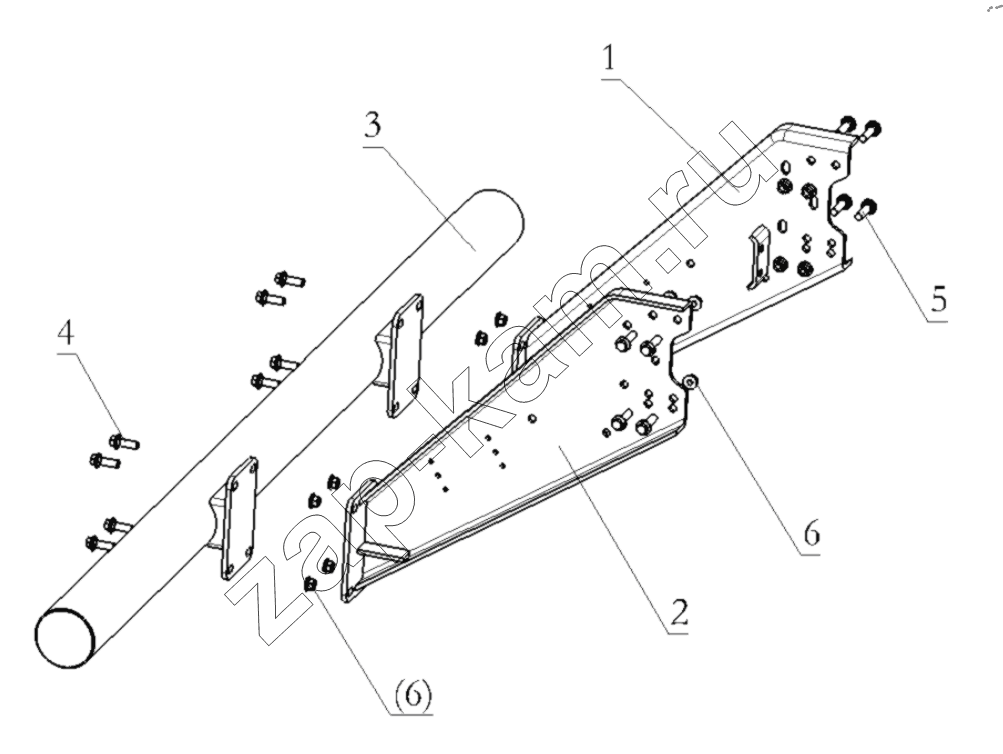

DEFENSIVE DRILL PROTECTION FRAME
/ Shaanxi Shacman SX331863366 (X3000)

Тип техники Не выбрано Грузовые Двигатели

Марка Не выбрано DAF DongFeng FAW Foton HOWO IVECO JAC Motors MAN Shaanxi SITRAK Volvo Автокомпонент Плюс ЗИЛ КАЗ КамАЗ Мадара НефАЗ СЗАП Тонар УралАЗ

Модель Не выбрано DeLONG Е-3 (самосвал) (2008) DeLONG Е-3 (тягач) (2008) MAN-F2000 (SX3254JS384) (2008) Shacman F2000 (2013) Shacman F3000 (2013) Shacman SX1255GP4 (2016) Shacman SX13164N456 Shacman SX3255DR385 (2011) Shacman SX3256DR384 (F3000) (2015) Shacman SX3256DT384 (2011) Shacman SX32586T384 (X3000) Shacman SX3258DR384 (F3000) Shacman SX3258DR384—F2000 Shacman SX3316DR366 (F2000) (2011) Shacman SX3316DT366 (2011) Shacman SX3316DT426C Shacman SX3316DV386 Shacman SX3316HT406C Shacman SX331853386 (X5000) (2023) Shacman SX331863366 (X3000) (2021) Shacman SX33186T386 (X3000) Shacman SX3318DT366 (F3000) Shacman SX3318HT366TL Shacman SX4188YY381 Shacman SX4255DV385 (2011) Shacman SX42564V324 (X3000) Shacman SX4256NT324 Shacman SX42584V324 Shacman SX42584V384TL Shacman SX5256GJBMR364 (2018) Shacman SX5315GJB5V326C (X3000) (2021) Shacman SX5318GJBDT386TL SX-3255-DR 3804B 6х4 SX32566R384

Схема > Не выбрано ENGINE SUSPENSION FUEL TANK ASSEMBLY 600L ACCELEROGRAPH CONTROL DEVICE AIR CLEANING DEVICE COOLER SYSTEM (F3000/WP12) DUSTPROOF NET DC95319740519 UREA SUPPLY TANK DC95319740519 UREA SUPPLY TANK PULL CLUTCH CONTROL DEVICE PULL DIAPHRAGM CLUTCH О¦430 SHIFTING DEVECE PROPELLER SHAFT MAN9.5T (DRUM TYPE) STEERING SHAFT WHEELSIDE REDUCTION THROUGH-TYPE DRIVE AXLE MAIN REDUCER ASSEMBLY (MIDDLE AXLE) WHEEL-SIDE REDUCTION THROUGH-TYPE DRIVE AXLE HOUSING (MIDDLE AXLE) WHEEL EDGE REDUCTION THROUGH DRIVE AXLE WHEEL EDGE WHEEL REDUCTION TRANSAXLE MAIN REDUCER ASSEMBLY (REAR AXLE) WHEEL REDUCTION TRANSAXLE HOUSING (REAR AXLE) WHEEL EDGE REDUCTION DRIVE AXLE WHEEL EDGE CAB WELDING ASSEMBLY SUN BLIND AIL-ROUND CURTAIN LEFT AND RIGHT SEAT ASSEMBLY THE INTERIOR TRIM ASSEMBLY THE INTERIOR TRIM ASSEMBLY THE INTERIOR TRIM ASSEMBLY THE INTERIOR TRIM ASSEMBLY SLEEPER UNDER CAB (LIGHTWEIGHT) DASHBOARD DECORATIVE ASSEMBLY DECORATIVE ASSEMBLY DECORATIVE ASSEMBLY DECORATIVE ASSEMBLY RADIATOR FENCE (DC97259200047) LEFT DOOR LOCK SYSTEM LEFT DOOR LOCK SYSTEM LEFT DOOR LOCK SYSTEM RIGHT DOOR LOCK SYSTEM RIGHT DOOR LOCK SYSTEM RIGHT DOOR LOCK SYSTEM FRONT COVER LEFT DOOR LIMIT RIGHT DOOR LIMIT LEFT DOOR WINDOW LIFTER RIGHT DOOR WINDOW LIFTER DOOR COVERING LEFT (ELECTROMOTION) DOOR COVERING RIGHT (ELECTROMOTION) LEFT DOOR SEAL AND DOOR CLASS SEAL RIGHT DOOR SEAL AND DOOR CLASS SEAL SKYLIGHT PANEL ASSEMBLY CAR WINDOW VIEW MIRROR SUN VISOR THE DRIVER’S CAB LEFT FENDER THE DRIVER’S CAB RIGHT FENDER FENDER SYSTEM LEFT FOOT PANEL RIGHT FOOT PANEL LEFT FOOT PANEL FOR CAB RIGHT FOOT PANEL FOR CAB BUMPER MUDGUARDS STEERING COLUMN ADJUSTABLE STEERING HYDRAULIC DEVICE DOUBLE SHAFTS STEERING TRANSMISSION DEVICE SERVE BRAKE CONTROL DEVICE PARKING BRAKE CONTROL DEVICE BRAKE DEVICE OF DUMP TRUCK BRAKE DEVICE OF DUMP TRUCK BRAKE PIPELINE OF DRIVE AXLE CAB ELECTRICAL APPLIANCES CAB ELECTRICAL APPLIANCES CAB ELECTRICAL APPLIANCES CAB ELECTRICAL APPLIANCES CAB ELECTRICAL APPLIANCES CAB ELECTRICAL APPLIANCES CAB ELECTRICAL APPLIANCES CAB ELECTRICAL APPLIANCES (GLONASS)/BCM CAB ELECTRICAL APPLIANCES CAB ELECTRICAL APPLIANCES CAB ELECTRICAL APPLIANCES CAB ELECTRICAL APPLIANCES FHB400 CAB ELECTRICAL ACCESSORIES CAB ELECTRICAL ACCESSORIES LOOMS ON CAB OUTER FRONT TERMINAL BOX SWITCH SWITCH CIGRATE COMMBINATION SWITCH REAR LIGHT LOUDHAILER CHASSIS ELECTRICAL APPLIANCES/WP12E50/4Г—2/6Г—4/BOX TYPE SCR/UREA TANK MODULE/CROSSBEAM REARWARD MOVEMENT 350/YOUSHUN/FHQ/ELECTROMAGNETIC SWITCH CHASSIS ELECTRICAL APPLIANCES/ADDITIONAL/8Г—4/ELECTRIC HEATING OIL TANK/FIREWALL/COLD ZONE CHASSIS ELECTRICAL APPLIANCES/NON-TRACTOR/DUMP/8Г— 4/K38/1000/WABCO 6ABS/STORAGE II LEFT 1500/FHQ/COLD AREA CHASSIS ELECTRICAL APPLIANCES/NON-TRACTOR/DUMP/8Г— 4/K38/1000/WABCO 6ABS/STORAGE II LEFT 1500/FHQ/COLD AREA CHASSIS ELECTRICAL APPLIANCES/X3000 WEICHAI/ADDITIONAL/FAST HYDRAULIC RETARDER/FHB400 CHASSIS ELECTRICAL APPLIANCES/ADDITIONAL/REVERSING BUZZER/NO JUNCTION BOX BATTERY BOX MOUNTING BATTERY BOX MAIN POWER SWITCH (SWITCH IN THE MIDDLE) FRAME WIRING HARNESS ACCESSORIES (X3000/DUMP TRUCK/8Г—4/FHQ) FRAME WIRING HARNESS ACCESSORIES (X3000/DUMP TRUCK/8Г—4/FHQ) FRAME WIRING HARNESS ACCESSORIES (X3000/DUMP TRUCK/8Г—4/FHQ) ENGINE WIRING HARNESS ACCESSORIES (X3000/WP13E50/8Г—4/RETARDER/FHQ) ENGINE WIRING HARNESS ACCESSORIES (X3000/WP13E50/8Г—4/RETARDER/FHQ) ENGINE WIRING HARNESS ACCESSORIES (X3000/WP13E50/8Г—4/RETARDER/FHQ) CHASSIS LIGHTS/IRON BUMPER/DRL/MAN TAIL LIGHTS/YELLOW HEIGHT LIGHTS/WHITE POSITION LIGHTS AIR CONDITION PIPES HEATER DEVICE (WITH AIR CONDITION) AIR CONDITION CONTROLLER SENSOR CAB LOCKING DEVICE (DC14251440348) CAB LOCKING DEVICE (DZ14251440448) FRONT SUSPENSION FOR VEHICLE (DC14251433007) FRONT SUSPENSION (DC97319690777) REAR SUSPENSION I (DC97319520821) REAR SUSPENSION II (DC97319520821) FRONT SHOCK ABSORBER (DC97319680164) FRONT STABILIZER ASSEMBLY (DC97319680164) REAR STABILIZER BAR (DC97319680164) FRAM ASSEMBLY BASIN BEAM ASSEMBLY FRAM ASSEMBLY DEFENSIVE DRILL PROTECTION FRAME TAILLIGHT BRACKET DRAG DEVICE WHEELING SYSTEM CLUTCH PNEUMATIC CONTROL AIR RESERVOIR SUPPORT ASSEMBLY DC97189361057 AIR RESERVOIR SUPPORT CONNECTING PARTS, LINE & NIPPLE JOINT CONNECTING PARTS, LINE & NIPPLE JOINT CONNECTING PARTS, LINE & NIPPLE JOINT CONNECTING PARTS, LINE & NIPPLE JOINT CONNECTING PARTS, LINE & NIPPLE JOINT CONNECTING PARTS, LINE & NIPPLE JOINT CONNECTING PARTS, LINE & NIPPLE JOINT PARKING WEDGE CONNECTING PARTS, LINE & NIPPLE JOINT CONNECTING PARTS, LINE & NIPPLE JOINT CONNECTING PARTS, LINE & NIPPLE JOINT CONNECTING PARTS, LINE & NIPPLE JOINT CONNECTING PARTS, LINE & NIPPLE JOINT AIR TANK FIXING (I) DC95189090100 AIR FOR CAB NIPPLE SUPPORT NIPPLE SUPPORT NIPPLE SUPPORT CONNECTING PARTS, LINE & NIPPLE JOINT CONNECTING PARTS, LINE & NIPPLE JOINT CONNECTING PARTS, LINE & NIPPLE JOINT CONNECTING PARTS, LINE & NIPPLE JOINT AIR COMPRESSOR PIPELINE AIR BLACKCURRANT UNIT CONNECTING PARTS, LINE & NIPPLE JOINT CONNECTING PARTS, LINE & NIPPLE JOINT DC93189270201 PNEUMATIC CONTROL OF POWER TAKE-OFF AIR OPERATOR FOR POWER TAKE-OFF CONNECTING PARTS, LINE & NIPPLE JOINT CONNECTING PARTS, LINE & NIPPLE JOINT CAB OSTENTATIOUS SCUTCHEON GLISTEN MARK VEHICLE SCUTCHEON

1

2

3

4

5

6

6

Поз.	Артикул		Название детали	Кол-во
1	DZ95259642110		Left supporting assembly	1;
2	DZ95259642120		Right supporting assembly	1;
3	DZ95259644009		Beam assembly	1;
4	Q1811440TF3		Hex Flange Face Bearing Bolts-Fine	8;
5	Q1811455TF3		Hexagon flange face bearing toothed bolt - fine teeth	8;
6	06.11251.2005		Гайка М14х1,5-10-МАN183-В1	16;

Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
