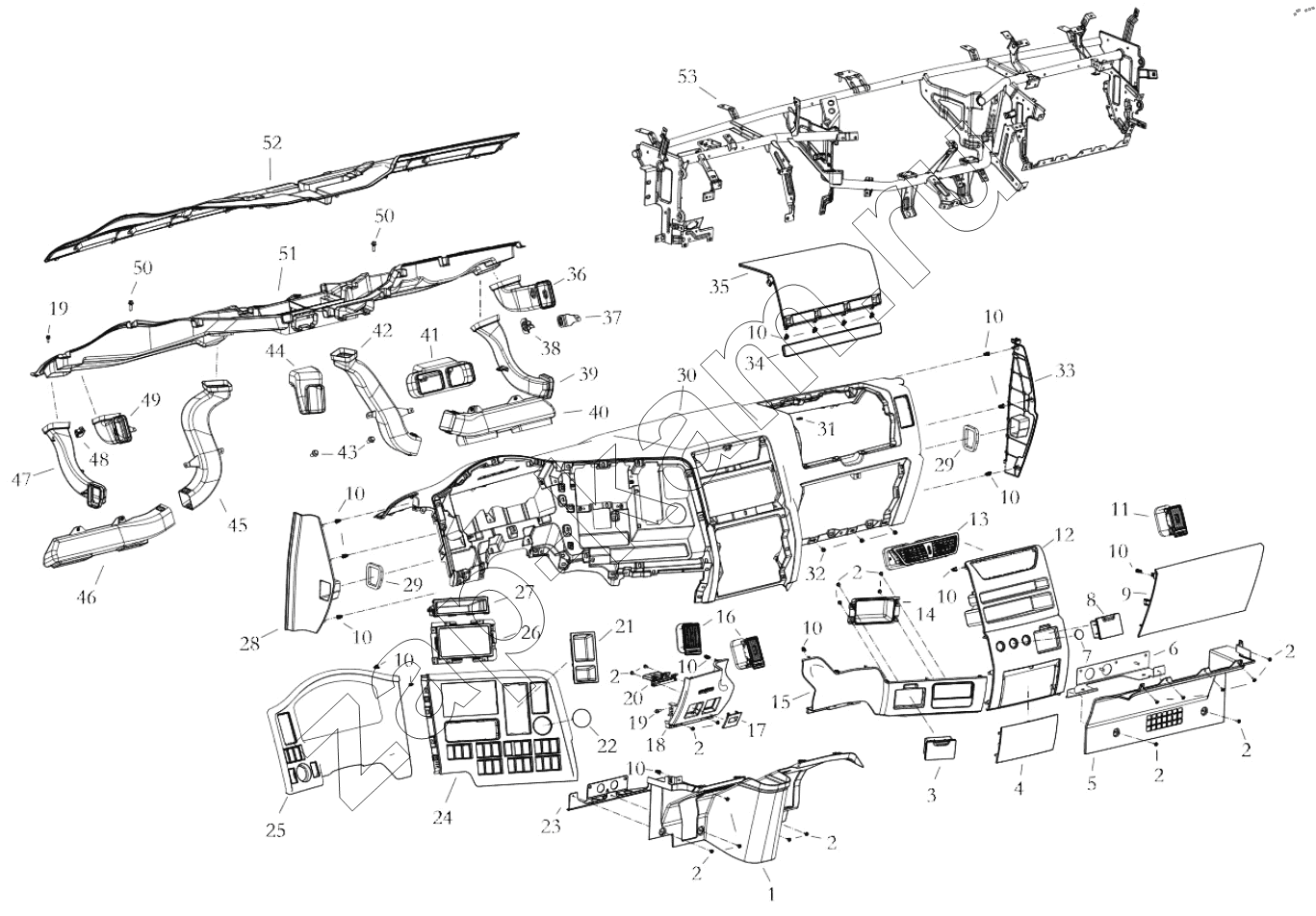

DASHBOARD
/ Shaanxi Shacman SX33186T386 (X3000)
1
1
2
2
2
2
2
2
2
2
3
4
5
6
7
8
9
10
10
10
10
10
10
10
10
10
10
10
11
12
13
14
15
15
16
17
18
18
19
19
20
21
22
23
24
25
25
26
27
28
29
29
30
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
50
51
52
53
| Поз. | Артикул | Название детали | Кол-во | Цена | |
|---|---|---|---|---|---|
| 1 | DZ14251160282 | Lh knee bolster | 1; | - | |
| 1 | DZ14251160281 | Lh knee bolster | 1; | - | |
| 2 | DZ14251160153 | Self tapping screw | 75; | - | |
| 3 | DZ14251160330 | Knee bolster ashtray assy | 1; | - | |
| 4 | DZ14251160142 | Floor wiring connecting-peg | 1; | - | |
| 5 | DZ14251160290 | Hood | 1; | - | |
| 6 | DZ14251160411 | Rh knee bolster | 1; | - | |
| 7 | DZ14251160143 | Ip rh lower brace | 1; | - | |
| 8 | DZ14251160340 | Cigar lighter trim | 1; | - | |
| 9 | DZ14251160321 | Center plate ashtray assy | 1; | - | |
| 10 | DZ14251160123 | Ecu maintaince garnish panel | 66; | - | |
| 11 | DZ14251160190 | Metal clip | 1; | - | |
| 12 | DZ14251160141 | Rh air vent assy | 1; | - | |
| 13 | DZ14251160180 | Center plate noumenon | 1; | - | |
| 14 | DZ14251160272 | Centre air vent assy | 1; | - | |
| 15 | DZ14251160273 | Driver rh knee bolster | 1; | - | |
| 15 | DZ14251160271 | Knee bolster store box | 1; | - | |
| 16 | DZ14251160160 | Driver rh knee bolster | 2; | - | |
| 17 | DZ14251160262 | Driver lh air vent assy | ; | - | |
| 18 | DZ14251160261 | Engine diagnose connecter | 1; | - | |
| 18 | DZ14251160264 | Hood | 1; | - | |
| 19 | Q1840616 | Driver lh air knee bolster | 1; | - | |
| 20 | DZ14251160263 | Driver lh air knee bolster | 27; | - | |
| 21 | DZ14251160324 | Hexagonal flange side bolt | 1; | - | |
| 22 | DZ14251160132 | Card trim | 1; | - | |
| 23 | DZ14251160412 | Driver's side lower hoard mounting bracket | 1; | - | |
| 24 | DZ14251160131 | Control panel body | 1; | - | |
| 25 | DZ14251160121 | Combination instrument mask body | 1; | - | |
| 25 | DZ14251160124 | Combination instrument mask body | 1; | - | |
| 26 | DZ14251160322 | Dvd decoration strip | 1; | - | |
| 27 | DZ14251160323 | Storage box | 1; | - | |
| 28 | DZ14251160301 | Left end plate body | 1; | - | |
| 29 | DZ14251160302 | End plate sponge sealing strip | 2; | - | |
| 30 | DZ14251160101 | Dashboard body | 1; | - | |
| 30 | DZ14251160119 | Dashboard body | 1; | - | |
| 31 | DZ14251160117 | Reed nut | 17; | - | |
| 32 | DZ14251160116 | Reed nut | 14; | - | |
| 33 | DZ14251160311 | Right end plate body | 1; | - | |
| 34 | DZ14251160152 | Relay box maintenance cover decorative strip | 1; | - | |
| 35 | DZ14251160151 | Relay box maintenance cover body | 1; | - | |
| 36 | DZ14251160115 | Right side blowing duct | 1; | - | |
| 37 | DZ14251160109 | Right side blowing air duct right bracket | 1; | - | |
| 38 | DZ14251160108 | Right side blowing air duct, left bracket | 1; | - | |
| 39 | DZ14251160210 | Defrosting duct on the right | 1; | - | |
| 40 | DZ14251160250 | Right blowing foot duct | 1; | - | |
| 41 | DZ14251160114 | Central blowing air duct | 1; | - | |
| 42 | DZ14251160230 | Right foot blowing duct | 1; | - | |
| 43 | Q1841020 | Hexagonal flange bolts | 6; | - | |
| 44 | DZ14251160113 | Blowing air duct on the right side of the driver | 1; | - | |
| 45 | DZ14251160220 | Left blowing foot duct | 1; | - | |
| 46 | DZ14251160240 | Left blowing foot duct | 1; | - | |
| 47 | DZ14251160200 | Defrosting duct on the left | 1; | - | |
| 48 | DZ14251160103 | Blowing air duct bracket on the left side of the driver | 1; | - | |
| 49 | DZ14251160112 | Blowing air duct on the left side of the driver | 1; | - | |
| 50 | Q1840825 | Hexagon flange bolt | 2; | - | |
| 51 | DZ14251160111 | The lower body of the front defrosting duct | 1; | - | |
| 52 | DZ14251160102 | Front defrosting duct upper body | 1; | - | |
| 53 | DZ14251160350 | Instrument panel mounting beam assembly | 1; | - |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
