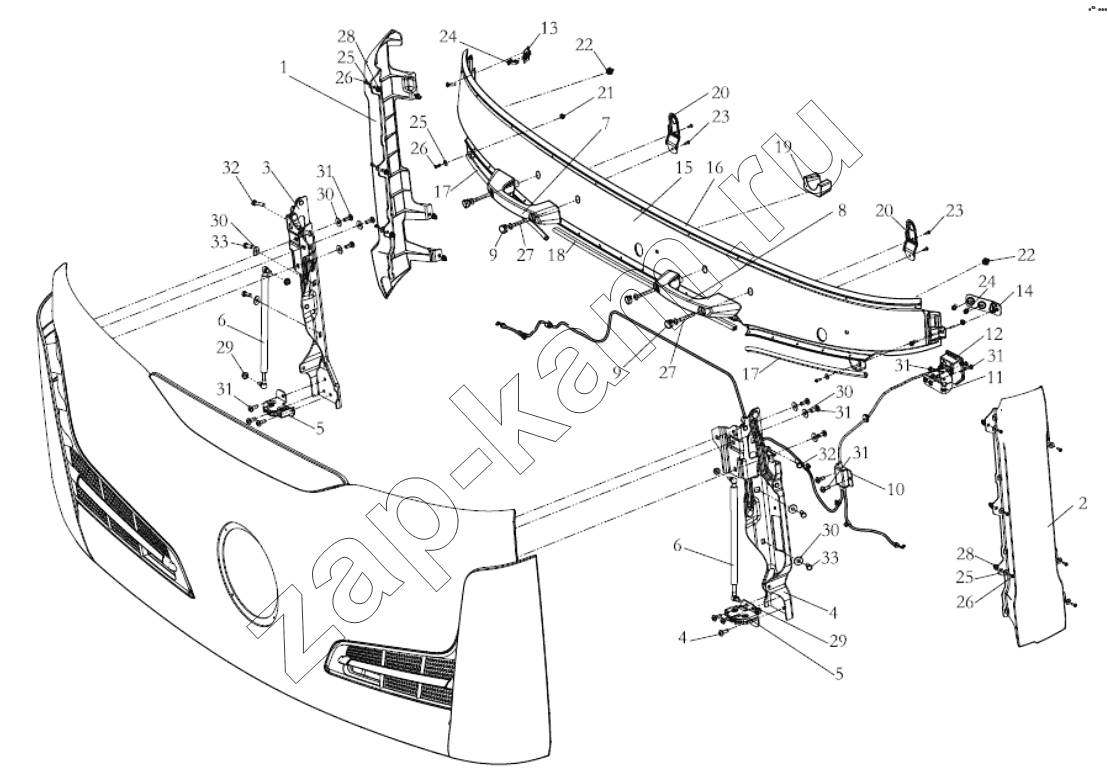

ПЕРЕДНЯЯ КРЫШКА; FRONT LID
/ Shaanxi Shacman SX4188YY381
1
2
3
4
4
5
5
6
6
7
8
9
9
10
11
12
13
14
15
16
17
17
18
19
20
20
21
22
22
23
23
24
24
25
25
25
26
26
26
27
27
28
28
29
29
30
30
30
30
31
31
31
31
31
31
32
32
33
33
| Поз. | Артикул | Название детали | Кол-во | Цена | |
|---|---|---|---|---|---|
| 1 | DZ16251110006 | Right lower a-pillar cover | 1; | - | |
| 2 | DZ16251110005 | Left lower a-pillar cover | 1; | - | |
| 3 | DZ16251110040 | Right front lid hinge assembly | 1; | - | |
| 4 | DZ16251110030 | Left front lid hinge assembly | 1; | - | |
| 5 | DZ16251110070 | Front lid lock assembly | 2; | - | |
| 6 | DZ16251110050 | Front lid air spring assembly | 2; | - | |
| 7 | DZ16251110008 | Right front wall handrail | 1; | - | |
| 8 | DZ16251110007 | Left front wall handrail | 1; | - | |
| 9 | DZ16251110017 | Front wall handrail cover | 4; | - | |
| 10 | DZ16251110082 | Front lid lock stay wire and dividing box | 1; | - | |
| 11 | DZ16251110191 | Hand shank bracket assembly | 1; | - | |
| 12 | DZ16251110193 | Front lid hand shank | 1; | - | |
| 13 | DZ16251110188 | Right mounting bracket | 1; | - | |
| 14 | DZ16251110187 | Left mounting bracket | 1; | - | |
| 15 | DZ16251110181 | Wiper cover panel | 1; | - | |
| 16 | DZ16251110182 | Upper wiper cover sealing strip | 1; | - | |
| 17 | DZ16251110184 | Left lower wiper cover sealing strip | 2; | - | |
| 18 | DZ16251110183 | Middle lower wiper cover sealing strip | 1; | - | |
| 19 | DZ16251110185 | Rubber blanket | 1; | - | |
| 20 | DZ16251110189 | Wiper cover plate strengthening bracket | 2; | - | |
| 21 | DZ14251970009 | Plastic clip | 2; | - | |
| 22 | DZ16251970016 | Side wall outer plate clip | 2; | - | |
| 23 | Q2714213F60 | Screw | 4; | - | |
| 24 | Q2140620F60 | Cross recessed pan head screws | 8; | - | |
| 25 | Q402B05F60 | Large washer | 49; | - | |
| 26 | Q2714216F60 | Srcew | 57; | - | |
| 27 | Q2140860 | Hex bolt | 4; | - | |
| 28 | DZ16251110019 | Plastic clip | 12; | - | |
| 29 | Q33008 | Nut | 4; | - | |
| 30 | Q402B08F60 | Big Washer | 18; | - | |
| 31 | Q2140820F60 | Cross groove pan head screw | 26; | - | |
| 32 | DZ16251110009 | Preparing mounting screw | 2; | - | |
| 33 | Q150B0818 | Болт | 4; | - | |
| 34 | DZ16251110014 | Right flap | 1; | - | |
| 35 | DZ16251110013 | Left flap | 1; | - | |
| 36 | DZ16251110016 | Right front lid grill chroming strip | 1; | - | |
| 37 | DZ16251110015 | Left front lid grill chroming strip | 1; | - | |
| 38 | DZ16251110012 | Right front lid grill | 1; | - | |
| 39 | DZ16251110011 | Left front lid grill | 1; | - | |
| 40 | DZ16251110003 | Front lid | 1; | - | |
| 41 | DZ16251110004 | Plate | 1; | - | |
| 42 | Q402B04 | Large washer (galvanized) | 8; | - | |
| 43 | DZ9X259620079 | Spring nut | 35; | - | |
| 44 | DZ16251110110 | Front lid lock assembly | 2; | - | |
| 45 | DZ16251110029 | Front lid rubber | 2; | - | |
| 46 | DZ16251110025 | Reinforcing pipe | 1; | - | |
| 47 | DZ16251110024 | Right lower front wall handrail | 1; | - | |
| 48 | DZ16251110023 | Left lower front wall handrail | 1; | - | |
| 49 | DZ16251110022 | Right lower front wall handrail cover | 1; | - | |
| 50 | DZ16251110021 | Left lower front wall handrail cover | 1; | - |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
