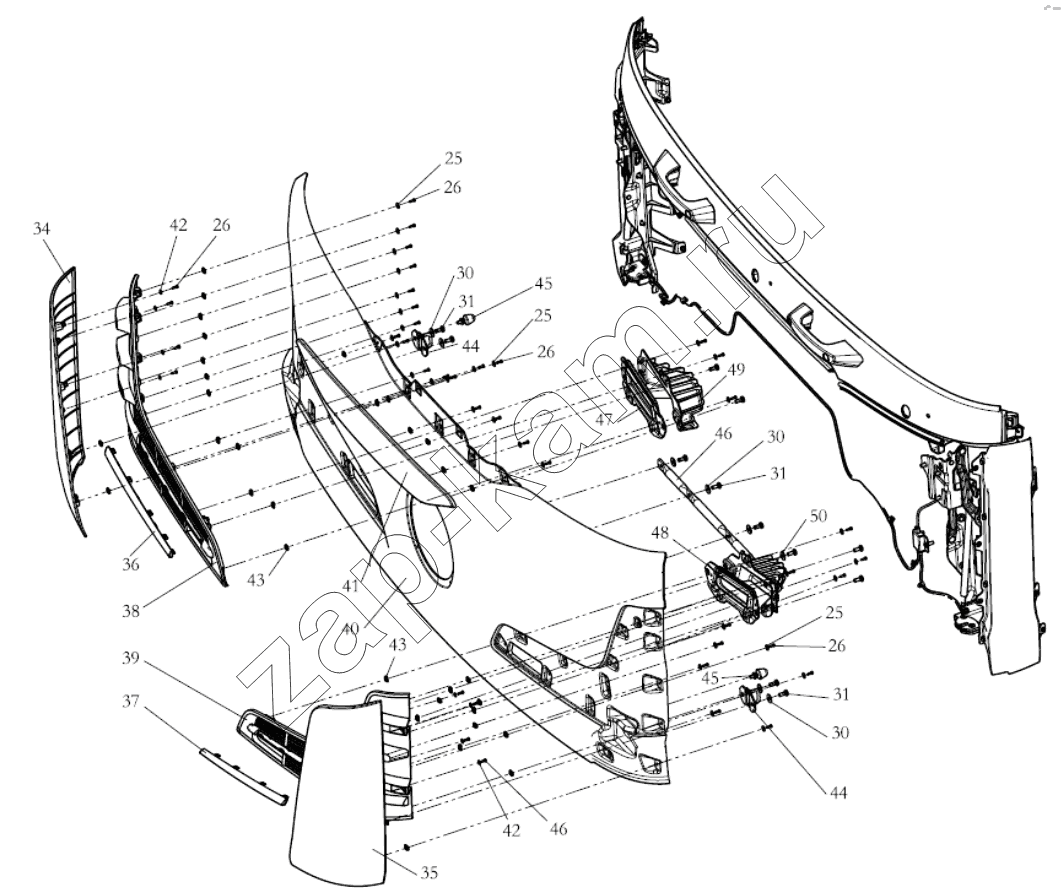

ПЕРЕДНЯЯ КРЫШКА; FRONT LID
/ Shaanxi Shacman SX4188YY381

zoom-in zoom-out enlarge shrink circle-right circle-left file-text2 info cart
1
1
1
25
25
25
26
30
30
30
31
31
31
34
35
36
37
38
39
40
41
42
42
43
43
44
44
45
45
46
46
47
48
49
50
Поз. Артикул Название детали Кол-во
1 DZ16251110006 Right lower a-pillar cover 1;
2 DZ16251110005 Left lower a-pillar cover 1;
3 DZ16251110040 Right front lid hinge assembly 1;
4 DZ16251110030 Left front lid hinge assembly 1;
5 DZ16251110070 Front lid lock assembly 2;
6 DZ16251110050 Front lid air spring assembly 2;
7 DZ16251110008 Right front wall handrail 1;
8 DZ16251110007 Left front wall handrail 1;
9 DZ16251110017 Front wall handrail cover 4;
10 DZ16251110082 Front lid lock stay wire and dividing box 1;
11 DZ16251110191 Hand shank bracket assembly 1;
12 DZ16251110193 Front lid hand shank 1;
13 DZ16251110188 Right mounting bracket 1;
14 DZ16251110187 Left mounting bracket 1;
15 DZ16251110181 Wiper cover panel 1;
16 DZ16251110182 Upper wiper cover sealing strip 1;
17 DZ16251110184 Left lower wiper cover sealing strip 2;
18 DZ16251110183 Middle lower wiper cover sealing strip 1;
19 DZ16251110185 Rubber blanket 1;
20 DZ16251110189 Wiper cover plate strengthening bracket 2;
21 DZ14251970009 Plastic clip 2;
22 DZ16251970016 Side wall outer plate clip 2;
23 Q2714213F60 Screw 4;
24 Q2140620F60 Cross recessed pan head screws 8;
25 Q402B05F60 Large washer 49;
26 Q2714216F60 Srcew 57;
27 Q2140860 Hex bolt 4;
28 DZ16251110019 Plastic clip 12;
29 Q33008 Nut 4;
30 Q402B08F60 Big Washer 18;
31 Q2140820F60 Cross groove pan head screw 26;
32 DZ16251110009 Preparing mounting screw 2;
33 Q150B0818 Болт 4;
34 DZ16251110014 Right flap 1;
35 DZ16251110013 Left flap 1;
36 DZ16251110016 Right front lid grill chroming strip 1;
37 DZ16251110015 Left front lid grill chroming strip 1;
38 DZ16251110012 Right front lid grill 1;
39 DZ16251110011 Left front lid grill 1;
40 DZ16251110003 Front lid 1;
41 DZ16251110004 Plate 1;
42 Q402B04 Large washer (galvanized) 8;
43 DZ9X259620079 Spring nut 35;
44 DZ16251110110 Front lid lock assembly 2;
45 DZ16251110029 Front lid rubber 2;
46 DZ16251110025 Reinforcing pipe 1;
47 DZ16251110024 Right lower front wall handrail 1;
48 DZ16251110023 Left lower front wall handrail 1;
49 DZ16251110022 Right lower front wall handrail cover 1;
50 DZ16251110021 Left lower front wall handrail cover 1;
