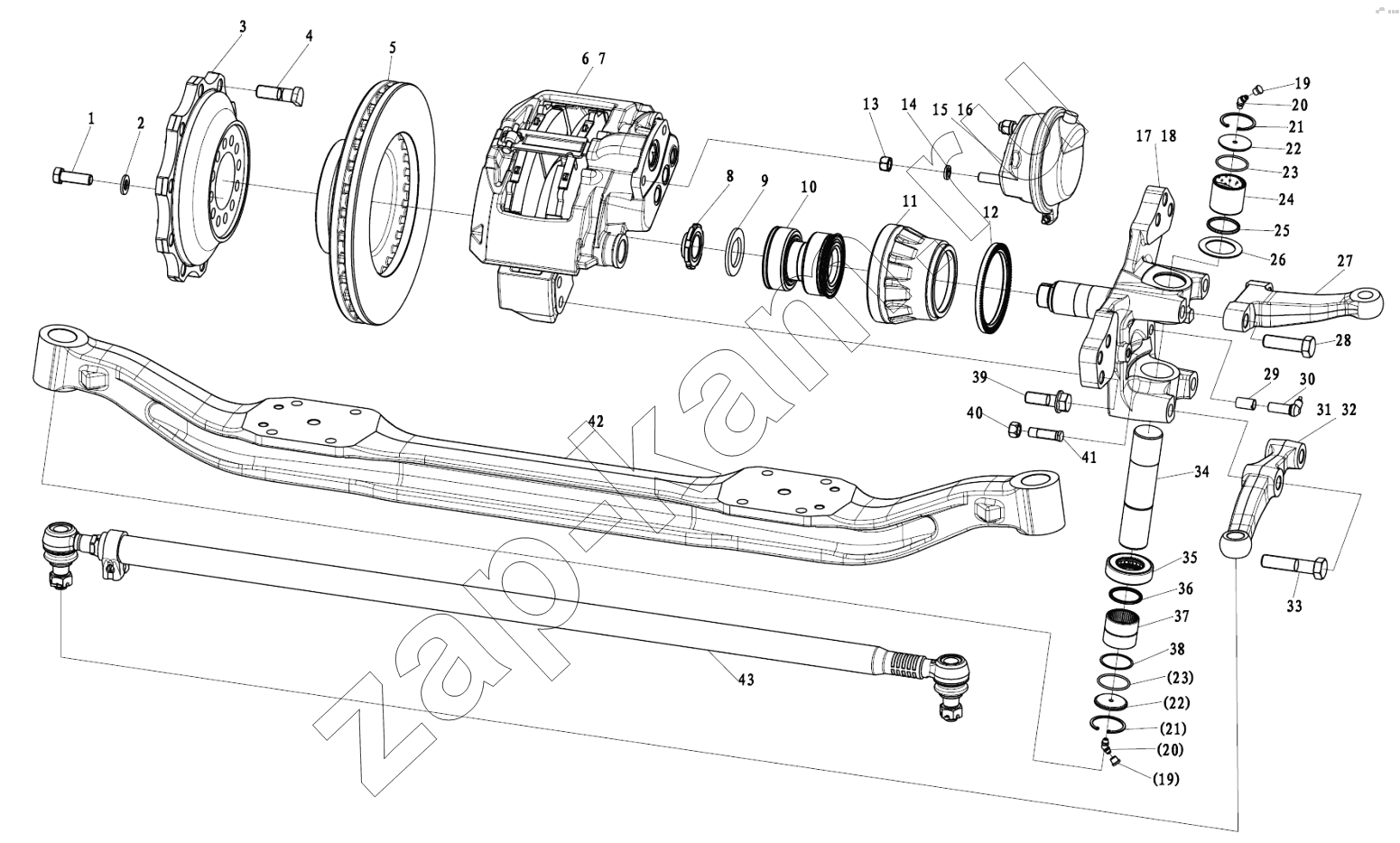

РУЛЕВАЯ ОСЬ; STEER AXLE
/ Shaanxi Shacman SX4188YY381
1
1
2
3
3
4
4
4
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
19
20
20
21
21
22
22
23
23
24
25
26
26
26
26
26
26
26
26
26
26
26
26
26
26
26
26
27
27
27
27
27
27
28
29
30
30
31
31
32
32
33
34
35
36
37
38
39
40
41
41
42
43
43
43
| Поз. | Артикул | Название детали | Кол-во | Цена | |
|---|---|---|---|---|---|
| 81.96002.0368 | 81.96002.0368 | Blocking | 2; | - | |
| 1 | Q151B1855TF2 | Hex screw | 24; | - | |
| 1 | HD90001500068 | Hex bolt | 24; | - | |
| 2 | HD90004000019 | Flat washer | 24; | - | |
| 3 | HD90009410456 | Wheel disc | 2; | - | |
| 3 | HD90009410598 | Wheel disc | 2; | - | |
| 4 | HD90009340345 | Wheel bolt | 20; | - | |
| 4 | HD90009340344 | Wheel bolt | 20; | - | |
| 4 | H150A2272AZF3 | Wheel bolt | 20; | - | |
| 4 | H150A2279AZF3 | Wheel bolt | 20; | - | |
| 5 | HD90009440083 | Brake disc | 2; | - | |
| 6 | DZ9100440040 | Brake clamp assembly | 1; | - | |
| 7 | DZ9100440050 | Brake clamp assembly | 1; | - | |
| 8 | DZ90009410098 | Locking nut | 2; | - | |
| 9 | DZ90009410099 | Stop washer | 2; | - | |
| 10 | HD90009410458 | Tapered roller bearing unit | 2; | - | |
| 11 | HD90009410457 | Bearing seat | 2; | - | |
| 12 | HD90009410464 | Abs pulse gear ring | 2; | - | |
| 13 | Q341B16F6 | Hex nut | 4; | - | |
| 14 | Q40516F6 | Hex nut | 4; | - | |
| 15 | HD90009448010 | Brake air-chamber | 1; | - | |
| 16 | HD90009448011 | Brake air-chamber | 1; | - | |
| 17 | HD90009410459 | Disc brake knuckle | 1; | - | |
| 18 | HD90009410460 | Disc brake knuckle | 1; | - | |
| 19 | 199000520096 | Крышка защитная | 4; | - | |
| 20 | 190003963114 | Taper thread grease nipple | 4; | - | |
| 21 | Q43058 | Шайба стопорная | 4; | - | |
| 22 | 81.90711.0941 | Packing disc | 4; | - | |
| 23 | 81.96501.0671 | Кольцо уплотнительное | 4; | - | |
| 24 | HD95009410053 | Bush | 2; | - | |
| 25 | HD95009410055 | Packing ring for axle | 2; | - | |
| 26 | HD95009410073 | Adjusting washer | ; | - | |
| 26 | HD95009410072 | Adjusting washer | ; | - | |
| 26 | HD95009410071 | Adjusting washer | ; | - | |
| 26 | HD95009410070 | Adjusting washer | ; | - | |
| 26 | HD95009410069 | Adjusting washer | ; | - | |
| 26 | HD95009410067 | Adjusting washer | ; | - | |
| 26 | HD95009410064 | Adjusting washer | ; | - | |
| 26 | HD95009410066 | Adjusting washer | ; | - | |
| 26 | HD95009410063 | Adjusting washer | ; | - | |
| 26 | HD95009410065 | Adjusting washer | ; | - | |
| 26 | HD95009410057 | Adjusting washer | ; | - | |
| 26 | HD95009410058 | Adjusting washer | ; | - | |
| 26 | HD95009410059 | Adjusting washer | ; | - | |
| 26 | HD95009410060 | Adjusting washer | ; | - | |
| 26 | HD95009410061 | Adjusting washer | ; | - | |
| 26 | HD95009410062 | Adjusting washer | ; | - | |
| 27 | HD90009410463 | Steering arm | 1; | - | |
| 27 | HD90009410593 | Steering arm | 1; | - | |
| 27 | HD90009410734 | Steering arm | 1; | - | |
| 27 | DZ9100410109 | Steering arm | 1; | - | |
| 27 | HD90009410633 | Steering arm | 1; | - | |
| 27 | HD90009410636 | Steering arm | 1; | - | |
| 28 | Q151B2275TF2S | Hex bolt | 2; | - | |
| 29 | DZ9100580215 | Втулка датчика | 2; | - | |
| 30 | DZ9100580214 | Датчик АВS | 2; | - | |
| 30 | HD90129580003 | Sensor | 2; | - | |
| 31 | HD95009410031 | Steering trapezium arm | 1; | - | |
| 31 | HD90009410591 | Steering trapezium arm | 1; | - | |
| 32 | HD95009410032 | Steering trapezium arm | 1; | - | |
| 32 | HD90009410592 | Steering trapezium arm | 1; | - | |
| 33 | Q151B22100TF2S | Hex bolt | 4; | - | |
| 34 | HD95009410054 | King pin | 2; | - | |
| 35 | HD95009410176 | Push row-steep roller bearing | 2; | - | |
| 36 | 81.96502.6044 | Кольцо уплотнительное | 2; | - | |
| 37 | 81.93402.6003 | Подшипник | 2; | - | |
| 38 | 81.90770.0096 | Шайба | 2; | - | |
| 39 | DZ9112340385 | Bolt | 12; | - | |
| 40 | Q341B16 | Гайка № 1 | 2; | - | |
| 41 | HD95009410001 | Fixed bolt | 2; | - | |
| 41 | HD90009418081 | Stop scream | 2; | - | |
| 42 | HD90009410455 | Front axle | 1; | - | |
| 43 | DZ9100430027 | Steering track rod | 1; | - | |
| 43 | DZ9100430026 | Steering track rod | 1; | - | |
| 43 | HD90009430018 | Steering track rod | 1; | - |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
