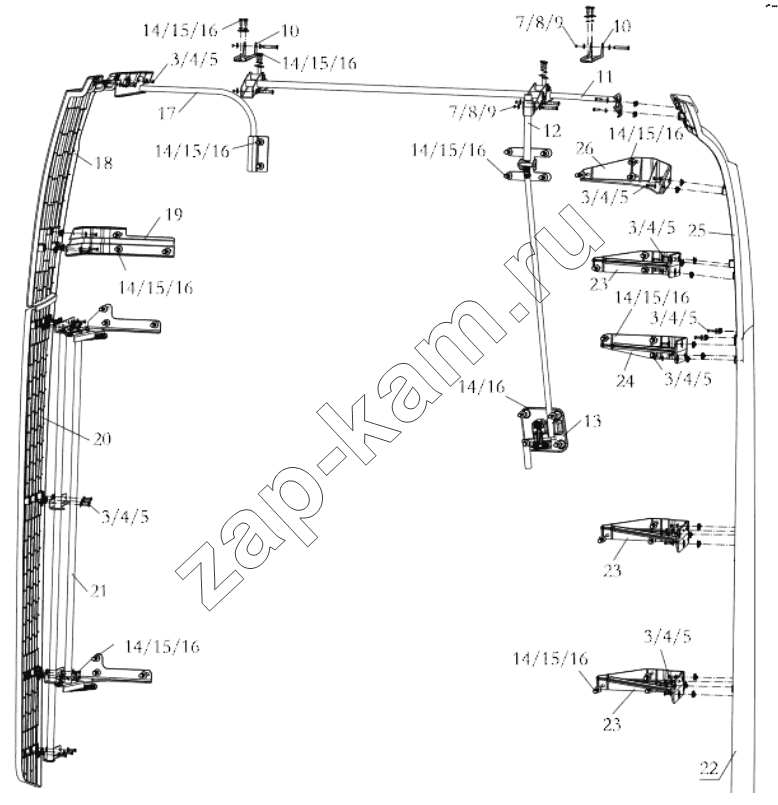

ВОЗДУШНЫЙ ОТКЛОНИТЕЛЬ; AIR DEFLECTOR
/ Shaanxi Shacman SX4188YY381
3
3
3
3
3
3
3
4
4
4
4
4
4
4
5
5
5
5
5
5
5
7
7
8
8
9
9
10
10
11
12
13
14
14
14
14
14
14
14
14
14
14
15
15
15
15
15
15
15
15
15
16
16
16
16
16
16
16
16
16
16
17
18
19
20
21
22
23
23
23
24
25
26
| Поз. | Артикул | Название детали | Кол-во | |
|---|---|---|---|---|
| 1 | DZ16251870011 | Top spoiler panel | 1; | |
| 2 | DZ16251870020 | Top spoiler fixing bracket assembly | 1; | |
| 3 | DZ16251870083 | Spring nut | 58; | |
| 4 | Q402B06F60 | Big Washer | 58; | |
| 5 | Q150B0620 | Hex.screw | 58; | |
| 6 | DZ16251870034 | Junction plate | 2; | |
| 7 | Q5101055 | Pin | 5; | |
| 8 | Q40010 | Шайба | 10; | |
| 9 | Q5003214 | Шплинт | 5; | |
| 10 | DZ16251870021 | Top spoiler front upper junction plate | 2; | |
| 11 | DZ16251870028 | Stabilizer bar assembly | 1; | |
| 12 | DZ16251870030 | Top spoiler rear wall brackets assembly | 1; | |
| 13 | DZ16251870071 | Top spoiler fixing plate assembly | 1; | |
| 14 | Q402B08F60 | Big Washer | 42; | |
| 15 | Q40308 | Шайба пружинная | 38; | |
| 16 | Q150B0820T1F3 | Hex head bolts | 42; | |
| 17 | DZ16251870047 | Left upper side spoiler bracket assembly | 1; | |
| 18 | DZ16251870041 | Left upper side spoiler | 1; | |
| 19 | DZ16251870045 | Panel | 1; | |
| 20 | DZ16251870051 | Left upper side bracket i | 1; | |
| 21 | DZ16251870040 | Left lower side spoiler panel | 1; | |
| 22 | DZ16251870085 | Left side spoiler bracket assembly | 1; | |
| 23 | DZ16251870054 | Right lower spiler panel | 3; | |
| 24 | DZ16251870053 | Assembly | 1; | |
| 25 | DZ16251870042 | Right lower side bracket 2 | 1; | |
| 26 | DZ16251870044 | Right lower side bracket 1 | 1; |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
