1. Каталоги запчастей к технике
2. Грузовые
3. Shaanxi
4. Shacman SX42564V324 (X3000)
5. UPPER BERTH

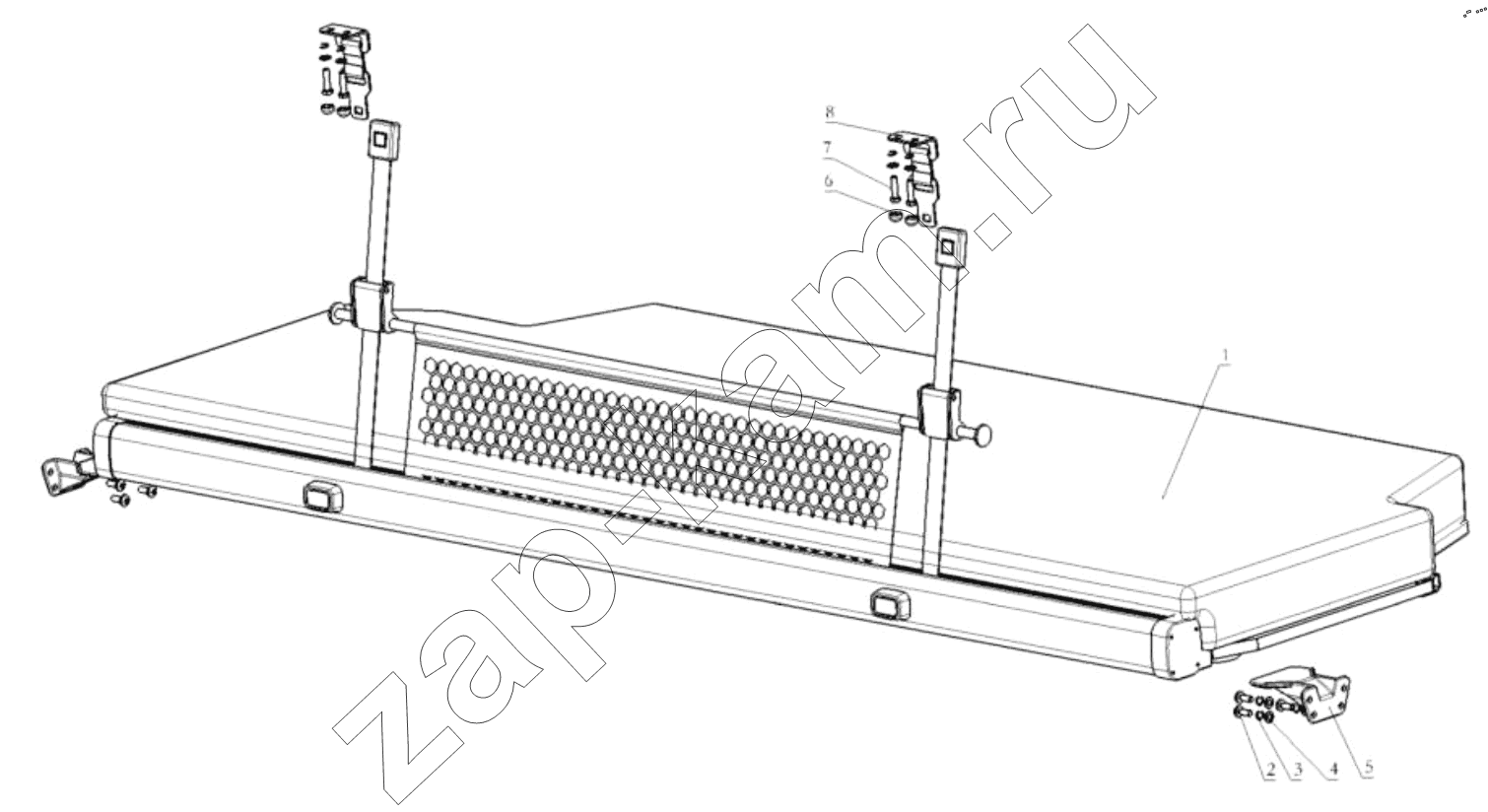

UPPER BERTH
/ Shaanxi Shacman SX42564V324 (X3000)

Тип техники Не выбрано Грузовые Двигатели

Марка Не выбрано DAF DongFeng FAW Foton HOWO IVECO JAC Motors MAN Shaanxi SITRAK Volvo Автокомпонент Плюс ЗИЛ КАЗ КамАЗ Мадара НефАЗ СЗАП Тонар УралАЗ

Модель Не выбрано DeLONG Е-3 (самосвал) (2008) DeLONG Е-3 (тягач) (2008) MAN-F2000 (SX3254JS384) (2008) Shacman F2000 (2013) Shacman F3000 (2013) Shacman SX1255GP4 (2016) Shacman SX13164N456 Shacman SX3255DR385 (2011) Shacman SX3256DR384 (F3000) (2015) Shacman SX3256DT384 (2011) Shacman SX32586T384 (X3000) Shacman SX3258DR384 (F3000) Shacman SX3258DR384—F2000 Shacman SX3316DR366 (F2000) (2011) Shacman SX3316DT366 (2011) Shacman SX3316DT426C Shacman SX3316DV386 Shacman SX3316HT406C Shacman SX331853386 (X5000) (2023) Shacman SX331863366 (X3000) (2021) Shacman SX33186T386 (X3000) Shacman SX3318DT366 (F3000) Shacman SX3318HT366TL Shacman SX4188YY381 Shacman SX4255DV385 (2011) Shacman SX42564V324 (X3000) Shacman SX4256NT324 Shacman SX42584V324 Shacman SX42584V384TL Shacman SX5256GJBMR364 (2018) Shacman SX5315GJB5V326C (X3000) (2021) Shacman SX5318GJBDT386TL SX-3255-DR 3804B 6х4 SX32566R384

Схема > Не выбрано ENGINE SUSPENSION ACCELEROGRAPH CONTROL DEVICE AIR CLEANING DEVICE (F3000/WP10) EXPANSION BOX SYSTEM COOLER SYSTEM (F3000/WP12) DUSTPROOF NET RADIATOR PROTECTOR SYSTEM AIR TANK FIXING AIR COMPESSOR OUTER LINE AIR TANK FIXING (B3) AIR TANK FIXING (C2) F3000 EXHAUST PIPE AND MUFFLER (WP12 NATIONAL IV ENGINE 6X4) UREA SUPPLY TANK PULL CLUTCH CONTROL DEVICE О¦430 PULL DIAPHRAGM CLUTCH SHIFTING DEVICE GEAR BOX SUPPORT PROPELLER SHAFT SYSTEM 7.5 TON DISC TYPE FRONT AXLE DOUBLE-STAGE REDUCTION TRANSAXLE SPARE PARTS CATALOG - MIDDLE AXLE HOUSING DOUBLE-STAGE REDUCTION TRANSAXLE SPARE PARTS CATALOG - REAR AXLE HOUSING DOUBLE-STAGE REDUCTION TRANSAXLE SPARE PARTS CATALOG - MIDDLE AXLE HOUSING DOUBLE-STAGE REDUCTION TRANSAXLE SPARE PARTS CATALOG - REAR AXLE HOUSING DOUBLE-STAGE REDUCTION TRANSAXLE SPARE PARTS CATALOG - MAIN REDUCER ASSEMBLY DOUBLE-STAGE REDUCTION TRANSAXLE SPARE PARTS CATALOG - MAIN REDUCER ASSEMBLY (REAR AXLE) DOUBLE-STAGE REDUCTION TRANSAXLE SPARE PARTS CATALOG - WHEEL HUB AND BRAKE ASSEMBLY HIGH ROOF BIW FLOOR MAT WIDE SOUND INSULATION AND HEAT INSULATION PANEL DEVICE UNDER ENGINE NOISE INSULATION CAB DASHBOARD PANELLING DASHBOARD THE INTERIOR TRIM ASSEMBLY THE INTERIOR TRIM ASSEMBLY THE INTERIOR TRIM ASSEMBLY (FOAM OVERHEAD BOX) THE INTERIOR TRIM ASSEMBLY (INJECTION MOLDED OVERHEAD BOX) THE INTERIOR TRIM ASSEMBLY THE INTERIOR TRIM ASSEMBLY THE INTERIOR TRIM ASSEMBLY AIL-ROUND CURTAIN TRANSVERSE CURTAIN LOWER BERTH UPPER BERTH UPPER BERTH SEAT CAR WINDOW LEFT DOOR LOCK SYSTEM LEFT DOOR LOCK SYSTEM LEFT DOOR LOCK SYSTEM LEFT DOOR LOCK SYSTEM RIGHT DOOR LOCK SYSTEM RIGHT DOOR LOCK SYSTEM RIGHT DOOR LOCK SYSTEM RIGHT DOOR LOCK SYSTEM LEFT DOOR LIMIT RIGHT DOOR LIMIT LEFT DOOR WINDOW LIFTER (ELECTROMOTION) RIGHT DOOR WINDOW LIFTER (ELECTROMOTION) DOOR COVERING LEFT (ELECTROMOTION) DOOR COVERING RIGHT (ELECTROMOTION) LEFT DOOR INNER PANEL ASSENBLY (ELECTROMOTION) RIGHT DOOR INNER PANEL ASSENBLY (ELECTROMOTION) LEFT DOOR SEAL AND DOOR CLASS SEAL RIGHT DOOR SEAL AND DOOR CLASS SEAL DOOR HINGE LEFT DOOR HINGE LEFT DOOR HINGE RIGHT DOOR HINGE RIGHT WINDSCREEN RINSE SYSTEM/LEFT WINDSCREEN RINSE SYSTEM/LEFT FRONT MASK DECORATIVE ASSEMBLY DECORATIVE ASSEMBLY DECORATIVE ASSEMBLY DECORATIVE ASSEMBLY VIEW MIRROR LEFT VIEW MIRROR RIGHT VIEW MIRROR SUN VISOR SUNSHADES LEFT FENDER RIGHT FENDER CAB REAR LEFT FENDER CAB REAR RIGHT FENDER LEFT FOOT PANEL FOR CAB RIGHT FOOT PANEL FOR CAB BUMPER BUMPER DEFENSIVE DRILL PROTECTION FRAME PARKING WEDGE DAMPER ROOF VENT/MANUAL HIGH ROOF CAB AIR DEFLECTOR HIGH ROOF CAB AIR DEFLECTOR MUDGUARDS STEERING COLUMN ADJUSTABLE SINGLE SHAFTS STEERING TRANSMISSION DEVICE HYDRAULIC DEVICE EXHAUST BRAKE CONTROL SERVE BRAKE CONTROL DEVICE PARKING BRAKE CONTROL DEVICE SINGLE FRONT AXLE BRAKE 7.5ABS DOUBAL CIRCUIT BRAKE SYSTEM II DOUBAL CIRCUIT BRAKE SYSTEM II CONNECTING PARTS,LINE & NIPPLE JOINT PIPE CONNECTORS, PIPE JOINTS (QUICK PLUG) PIPE CONNECTORS, PIPE JOINTS (QUICK PLUG) PIPE CONNECTORS, PIPE JOINTS (CUT SETS) RADIO CAB ELECTRICAL APPLIANCES/ADDITIONAL/FAST RETARDER/WP/BCM CAB ELECTRICAL APPLIANCES/ADDITIONAL/FAST RETARDER/WP/BCM CAB ELECTRICAL APPLIANCES/ADDITIONAL/FAST RETARDER/WP/BCM CAB ELECTRICAL APPLIANCES/ADDITIONAL/FAST RETARDER/WP/BCM ABS CONTROLLER INSURANCE WIRING HARNESS LOOMS ON CAB OUTER FRONT TERMINAL BOX SWITCH SWITCH CIGRATE COMBINATION SWITCH REAR LIGHT LOUDHAILER SWITCH LOUDHAILER WINDOW LIFTER REMOTE CONTROL FRONT WINDSHIELD SPRAY PUMP (24V) FLOODLIGHT (HIGH ROOF) CAB WIRING HARNESS (IN INSTRUMENT PANEL) DOOR WIRING ROOF WIRING LOOMS ON CAB OUTER HEADLIGHT (LOW BEAM) HEIGHT ADJUSTMENT SWITCH ADDITIONAL WIRING HARNESS ADDITIONAL WIRING HARNESS SWITCH PUMP LOUDHAILER WINDOW LIFTER REMOTE CONTROL FLOODLIGHT (HIGH ROOF) CAB WIRING HARNESS (IN INSTRUMENT PANEL) DOOR WIRING ROOF WIRING CHASSIS ELECTRICAL/ADDITIONAL/NEW ELECTRIC/COLD AREA WORKING LAMP CHASSIS ELECTRICAL APPLIANCES/COLD AREAS CHASSIS ELECTRICAL APPLIANCES/ADDITIONAL/SHUIHANBAO/FRONT AXLE REAR 1175 OR REAR SUSPENSION/COLD ZONE CHASSIS ELECTRICAL APPLIANCES/WP12E40/4X2/6X4/BCM/LARGE INTEGRATED SCR/INTEGRATED UREA TANK/CROSSBEAM REARWARD MOVEMENT 350/POWER OPTIMIZATION/COLD AREA CHASSIS ELECTRICAL APPLIANCES/WP12E40/4X2/6X4/BCM/LARGE INTEGRATED SCR/INTEGRATED UREA TANK/CROSSBEAM REARWARD MOVEMENT 350/POWER OPTIMIZATION/COLD AREA CHASSIS ELECTRICAL APPLIANCES/WP12E40/4X2/6X4/BCM/LARGE INTEGRATED SCR/INTEGRATED UREA TANK/CROSSBEAM REARWARD MOVEMENT 350/POWER OPTIMIZATION/COLD AREA CHASSIS ELECTRICAL APPLIANCES/WP12E40/4X2/6X4/BCM/LARGE INTEGRATED SCR/INTEGRATED UREA TANK/CROSSBEAM REARWARD MOVEMENT 350/POWER OPTIMIZATION/COLD AREA CHASSIS ELECTRICAL APPLIANCES/WP12E40/4X2/6X4/BCM/LARGE INTEGRATED SCR/INTEGRATED UREA TANK/CROSSBEAM REARWARD MOVEMENT 350/POWER OPTIMIZATION/COLD AREA CHASSIS ELECTRICAL/ADDITIONAL/DISC BRAKE WEAR ALARM BATTERY BOX MOUNTING BATTERY BOX BATTERY MAIN SWITCH (SWITCH IN THE MIDDLE) HEADLIGHT ASSEMBLY (WITH TURN SIGNAL) TAILLIGHT FLASHERS IN FOOTPLANE SIDE MARKER LIGHTS (FENDER) SUNSHADE LIGHT FIXTURES ROOF WIRING LOOMS ON CAB OUTER AIR SYSTEM AIR INTAKE BOX ON CAB AIR SYSTEM AIR DUCT AIR CONDITION PIPES HEATER DIVICE (WITH AIR CONDITION) AIR CONDITION CONTROLLER SENSOR CAB HYDRAULIC TILTING EQUIPMENT CAB TILTING MECHANISM L.H. DRIVE VEHICLE FRONT BEARING SPRING FRONT AIR SPRING CONTROL DEVICE AIR SPRING CONTROL PIPELINE DEVICE FRONT SUSPENSION (DC 95259690907) BALANCING SUSPENSION I (DC95259520812) BALANCING SUSPENSION II (DC95259520812) FRONT SHOCK ABSORBER (DC95259680129) FRONT STABILIZER ASSY (DC95259680129) REAR STABILIZER BAR (DC95259680129) FRAM FOREPART ACCESSORY CROSS MEMBER DRAW GEAR WHEELING SYSTEM SEMI TRAILING BASE OPERATING FLAT ROOF AND LADDER OPERATING FLAT ROOF AND LADDER OPERATING FLAT ROOF AND LADDER CONNECTING PARTS, LINE & NIPPLE JOINT CONNECTING PARTS, LINE & NIPPLE JOINT CONNECTING PARTS, LINE & NIPPLE JOINT CAB DECORATE SCUTCHEON GLISTEN MARK

1

2

3

4

5

6

7

8

Поз.	Артикул		Название детали	Кол-во	Цена
1	DZ14251570210		Upper berth	1;	-
2	Q2140820		Винт	12;	-
3	Q40308		Шайба пружинная	20;	10 ₽ - 60 ₽
Шайба пружинная Q40308 / КИТАЙ / Q40308 10 ₽ Болт шестигранный + шайба пружинная КПП Fastgear / Q150B0812+Q40308 30 ₽ Шайба пружинная / Q40308 60 ₽
4	Q40108		Шайба А8,4х16х1,6-200НV-МАN183-В4	20;	-
5	DZ14251570124		Bracket	2;	-
6	DZ14251570160		Cover	8;	-
7	Q150B0830T1F3		Hex bolt	4;	-
8	DZ14251570112		Pothook	2;	-
9	Q150B0820T1F3		Hex head bolts	4;	-
10	DZ14251570009		Gemel	2;	-

Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
