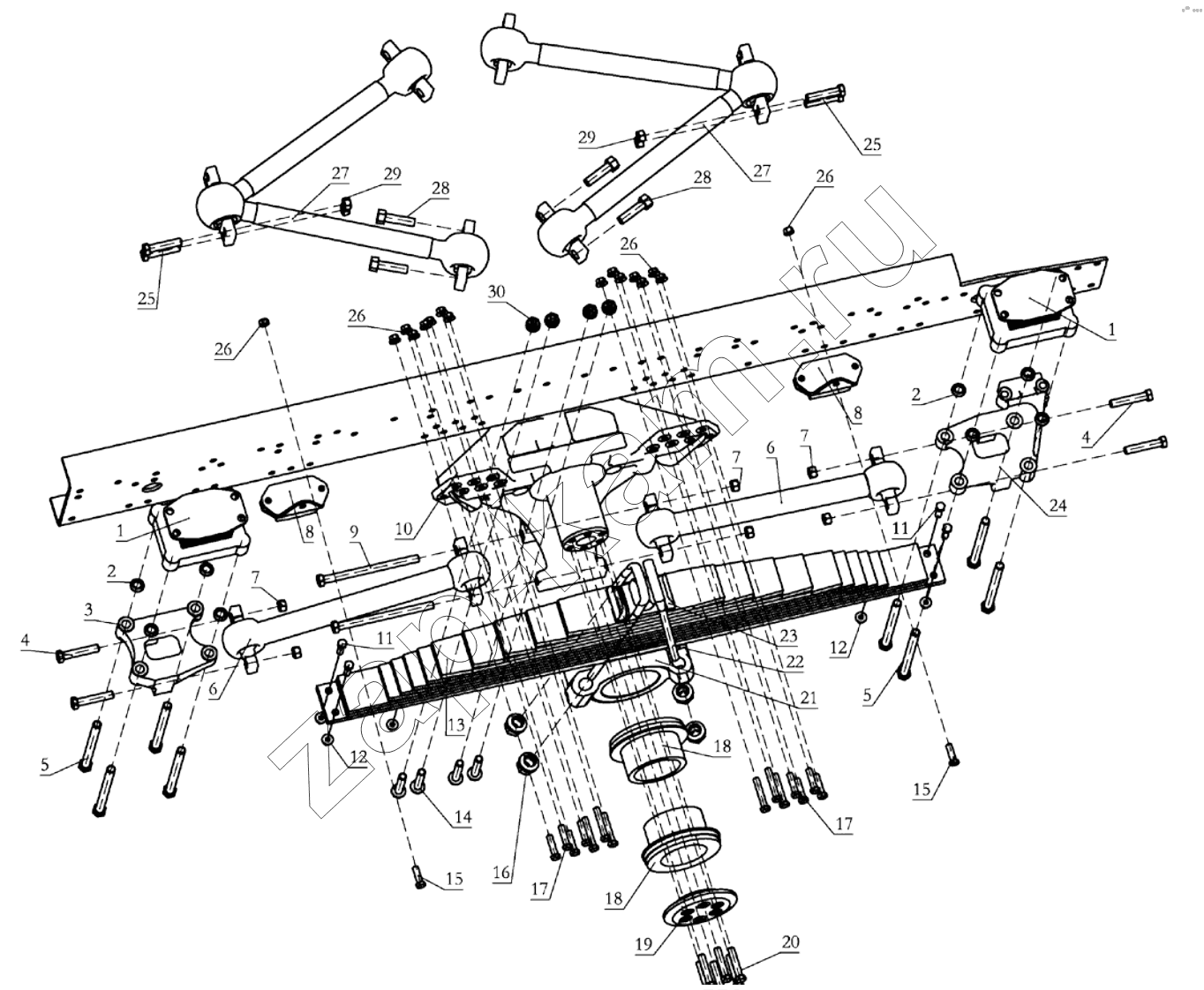

REAR SUSPENSION (DC95259520500)
/ Shaanxi Shacman SX4256NT324
1
1
2
2
3
3
4
4
5
5
5
5
6
6
7
7
7
8
8
9
10
11
11
12
12
13
14
15
15
16
17
17
17
17
17
17
18
18
19
20
21
22
23
24
24
25
25
26
26
26
26
27
27
28
28
29
29
30
| Поз. | Артикул | Название детали | Кол-во | Цена | |
|---|---|---|---|---|---|
| 1 | DZ95259526425 | compressed spring | 4; | - | |
| 2 | 81.90712.0908 | Spherical washer | 16; | - | |
| 3 | 81.43242.0043 | Support plate | 1; | - | |
| 3 | 81.43242.0040 | Support plate | 1; | - | |
| 4 | 06.01494.4718 | Hex head bolt | 8; | - | |
| 5 | Q151C20240TF2 | Hex head bolts | 8; | - | |
| 5 | Q151C20260TF2 | Hex head bolts | 8; | - | |
| 6 | 81.43220.6196 | Thrust rod | 4; | - | |
| 7 | 06.11241.0121 | Hex self-locking nut | 12; | - | |
| 8 | DZ95259526011 | Limit block assembly | 4; | - | |
| 9 | 06.01494.4734 | Hex head bolt | 4; | - | |
| 10 | 81.41301.0241 | Support | 2; | - | |
| 11 | 06.02813.4915 | Болт М14х55 | 8; | - | |
| 12 | 06.11251.2005 | Гайка М14х1,5-10-МАN183-В1 | 16; | - | |
| 13 | DZ9114526012 | Rear leaf spring assembly | 1; | - | |
| 14 | 06.02812.1134 | Hex head bolt | 2; | - | |
| 15 | Q1811445TF3 | Hex Flange Face Bearing Bolts-Fine | 8; | - | |
| 16 | 81.90685.0400 | Ball nut | 4; | - | |
| 17 | Q151B1455TF3 | Hex head bolts | 8; | - | |
| 17 | Q151B1480TF2 | Болт | 16; | - | |
| 18 | 81.96210.0508 | Convex bushing | 12; | - | |
| 19 | 81.41302.0030 | Flange | 4; | - | |
| 20 | 06.02815.9021 | Hex head bolt | 12; | - | |
| 21 | 81.41350.0017 | Leaf spring seat | 2; | - | |
| 22 | 06.46115.0455 | Riding bolt | 4; | - | |
| 23 | 81.41335.0120 | Leaf spring pressure plate | 2; | - | |
| 24 | 81.43242.0042 | Support plate | 1; | - | |
| 24 | 81.43242.0039 | Support plate | 1; | - | |
| 25 | 06.02202.1013 | Hexagon shoulder bolt | 8; | - | |
| 26 | 06.11251.2005 | Гайка М14х1,5-10-МАN183-В1 | 32; | - | |
| 27 | DZ95259525140 | V-thrust rod | 2; | - | |
| 28 | Q151B1885TF2 | Hex head bolts-fine pitch | 8; | - | |
| 29 | 190003888626 | Гайка | 8; | - | |
| 30 | 06.11259.0001 | Hex nut | 8; | - |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
