  4. Shacman SX42584V324
  5. AIR CONDITION PIPES

AIR CONDITION PIPES
/ Shaanxi Shacman SX42584V324

zoom-in zoom-out enlarge shrink circle-right circle-left file-text2 info cart

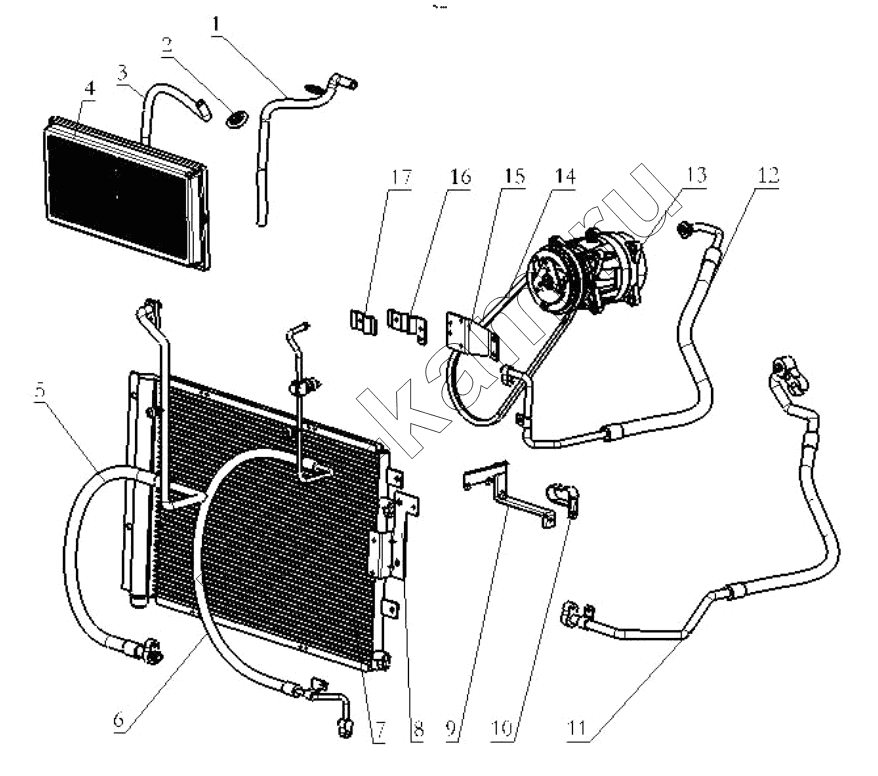

Схема/чертеж: AIR CONDITION PIPES / Shaanxi Shacman SX42584V324
1
2
3
4
5
6
7
8
9
10
11
11
11
11
12
12
12
12
12
13
13
13
13
14
14
14
14
14
14
15
16
17
Поз. Артикул Название детали Кол-во Цена
DZ14251845030 DZ14251845030 Evaporator-compressor connecting tube two 1; -
1 DZ14251841012 Front drain pipe 1; -
2 DZ14251841001 Drain pipe plugging cover 2; -
3 DZ14251841011 Drain pipe 1; -
4 DZ13241841430 Filter housing assembly 1; -
5 DZ14251841014 Evaporator outlet pipe 1; -
6 DZ14251845004 Evaporator inlet pipe 1; -
7 DZ13241824370 Subcooled condenser assembly 1; -
8 DZ14251845008 Pipeline bracket 1; -
9 DZ14251845009 Pipeline bracket 1; -
10 DZ14251845011 Pipe clamp 1; -
11 DZ14251845014 Compressor inlet pipe 1; -
11 DZ14251845024 Compressor inlet pipe 1; -
11 DZ14251845026 Compressor inlet pipe 1; -
11 DZ14251845006 Compressor inlet pipe 1; -
12 DZ14251845029 Compressor-condenser connecting tube 1; -
12 DZ14251845013 Compressor Outlet 1; -
12 DZ14251845027 Compressor-condenser connecting tube 1; -
12 DZ14251845025 Compressor-condenser connecting tube 1; -
12 DZ14251845005 Compressor-condenser connection pipe (HX/WP10) 1; -
13 DZ95189154010 Compressor assembly 1; -
13 DZ95189154012 Compressor assembly 1; -
13 DZ13241824112 Compressor assembly 1; -
13 DZ13241845010 Compressor assembly 1; -
14 DZ13241824601 Belt 1; -
14 DZ13241824602 Belt 1; -
14 SZ915000001 Belt 1; -
14 DZ13241824603 Multi-wedge belt 1; -
14 DZ13241845102 Compressor belt 1; -
14 DZ13241824605 Belt 1; -
15 DZ13241821204 Кронштейн 1; -
16 DZ14251845007 Pipe clamp 1; -
17 DZ13241821502 Fixed clip 1; -
